R409.093.U.02 AS4B
Insert
Part number R409093U02AS4B

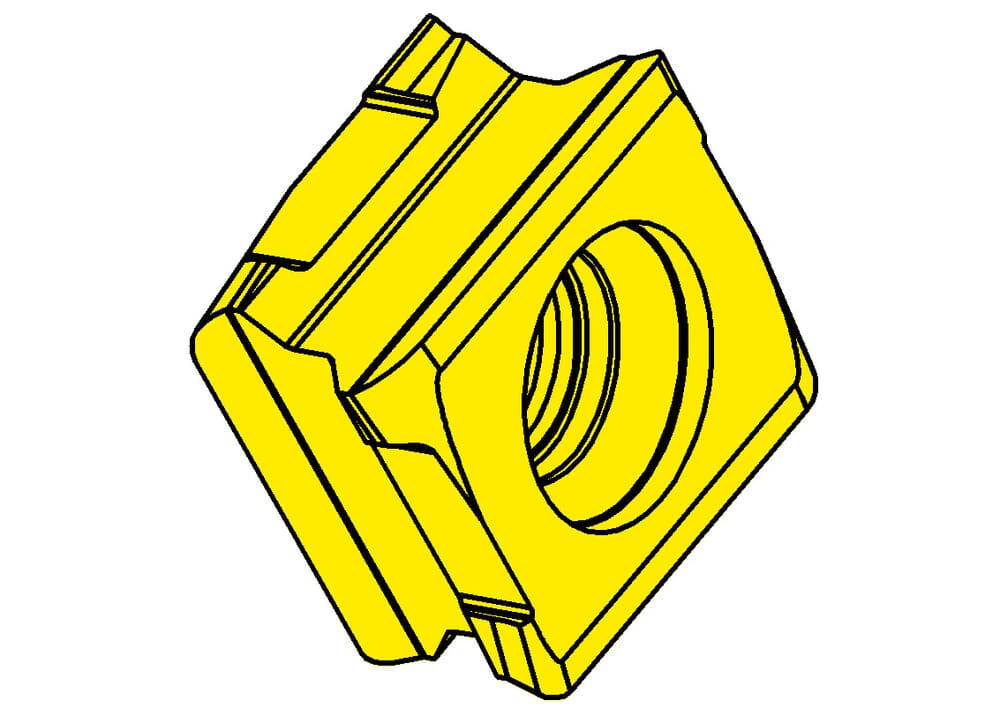

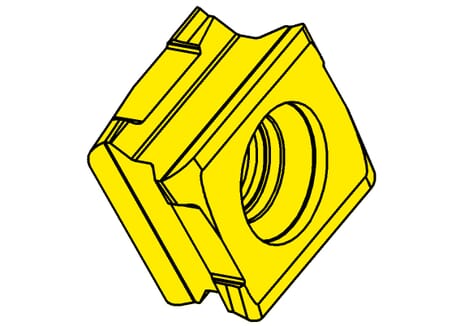

HORN Insert R409.093.U.02 AS4B for Milling
Please note:Technical instructions
eclass-shortcut
21-18-20-03
ISO_SSC
HORN40900$$$3R$$$$$
Katalog_SSC
40900R
Corner radius (rx)
0.2 mm
Maximum stepover (ap) (ap)
9.3 mm
Cutting insert height, Cutting insert thickness (h)
5.2 mm
| Downloads | |
|---|---|
| R409_093_U_02_AS4B-ISO.XML | Download |
| R409_093_U_02_AS4B-DXF.DXF | Download |
| R409_093_U_02_AS4B-STP.STP | Download |
| R409_093_U_02_AS4B-DIN.XML | Download |
| Download all files | |
