RA105.1020.10.2.2 TI25
Insert
Part number RA10510201022TI25

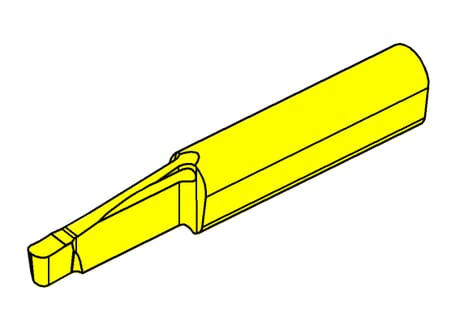

HORN Insert RA105.1020.10.2.2 TI25 for Turning
Please note:Technical instructions

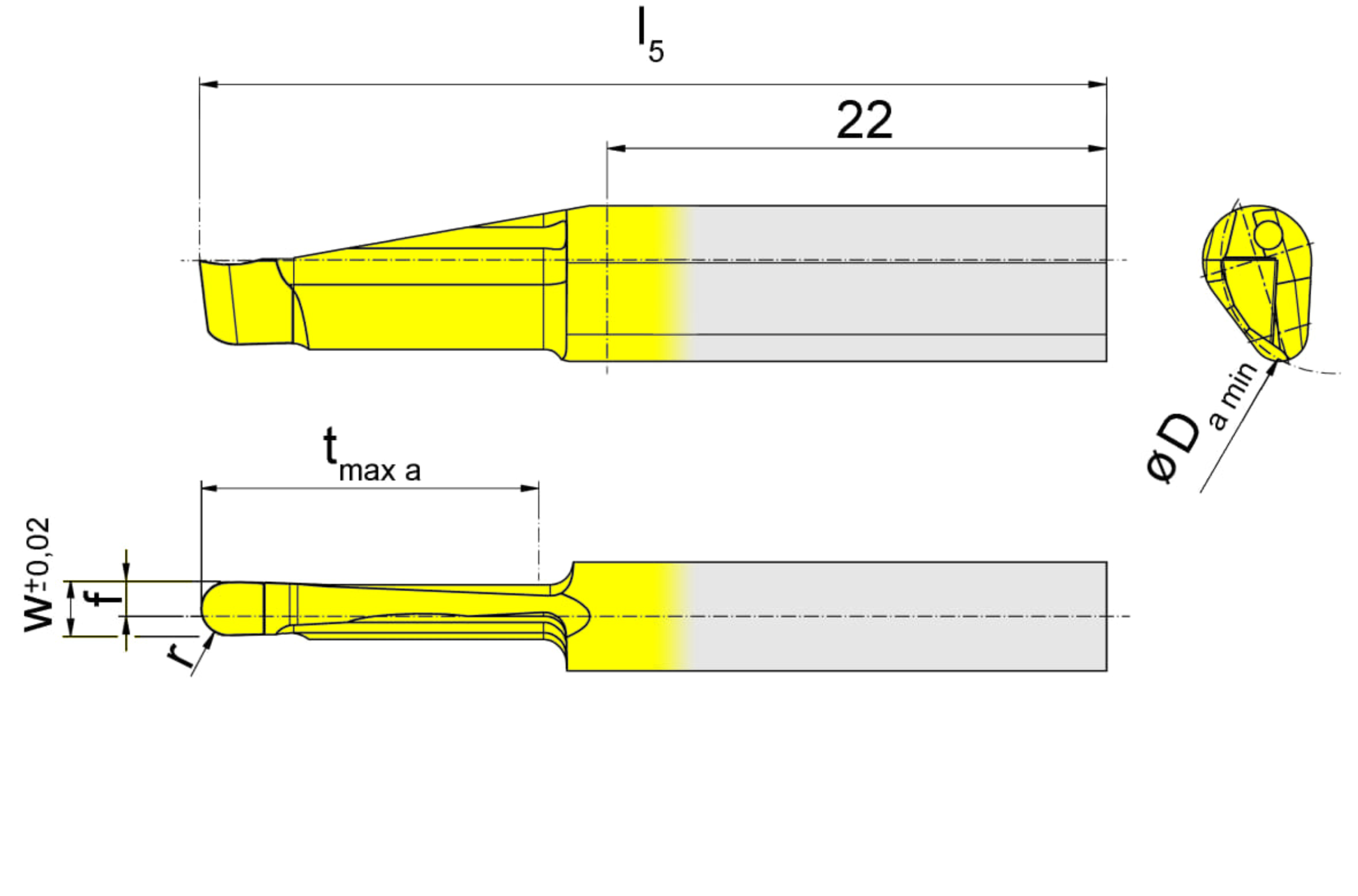

Total length (l5)
40
mm
Width of groove (w)
2
mm
Katalog_SSC
105225
DIN_SSC
HORN-10522595N
ISO_SSC
HORN105225$95N$$$$$
Smallest axial bore diameter (Da min)
10
mm
eclass-shortcut
21-18-20-11
Full radius (r)
1
mm
Maximum starting outside diameter (Da max)
44
mm
Maximum depth of groove (tmax a)
15
mm
Adjustment dimension cutting center (f)
1.4
mm
| Downloads | |
|---|---|
| RA10510201022_20230114_005958239.STP | Download |
| RA10510201022.DXF | Download |
| Download all files | |
