RB105.TS40.20.1.01

Toolholder

Part number RB105TS4020101

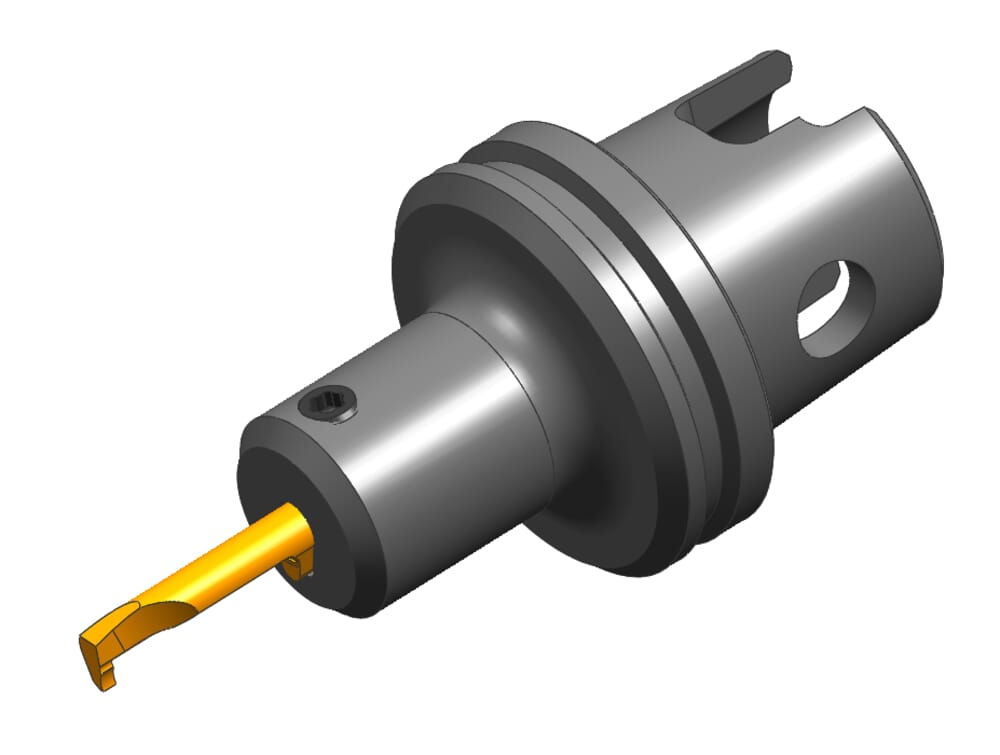

HORN Toolholder RB105.TS40.20.1.01 for Turning

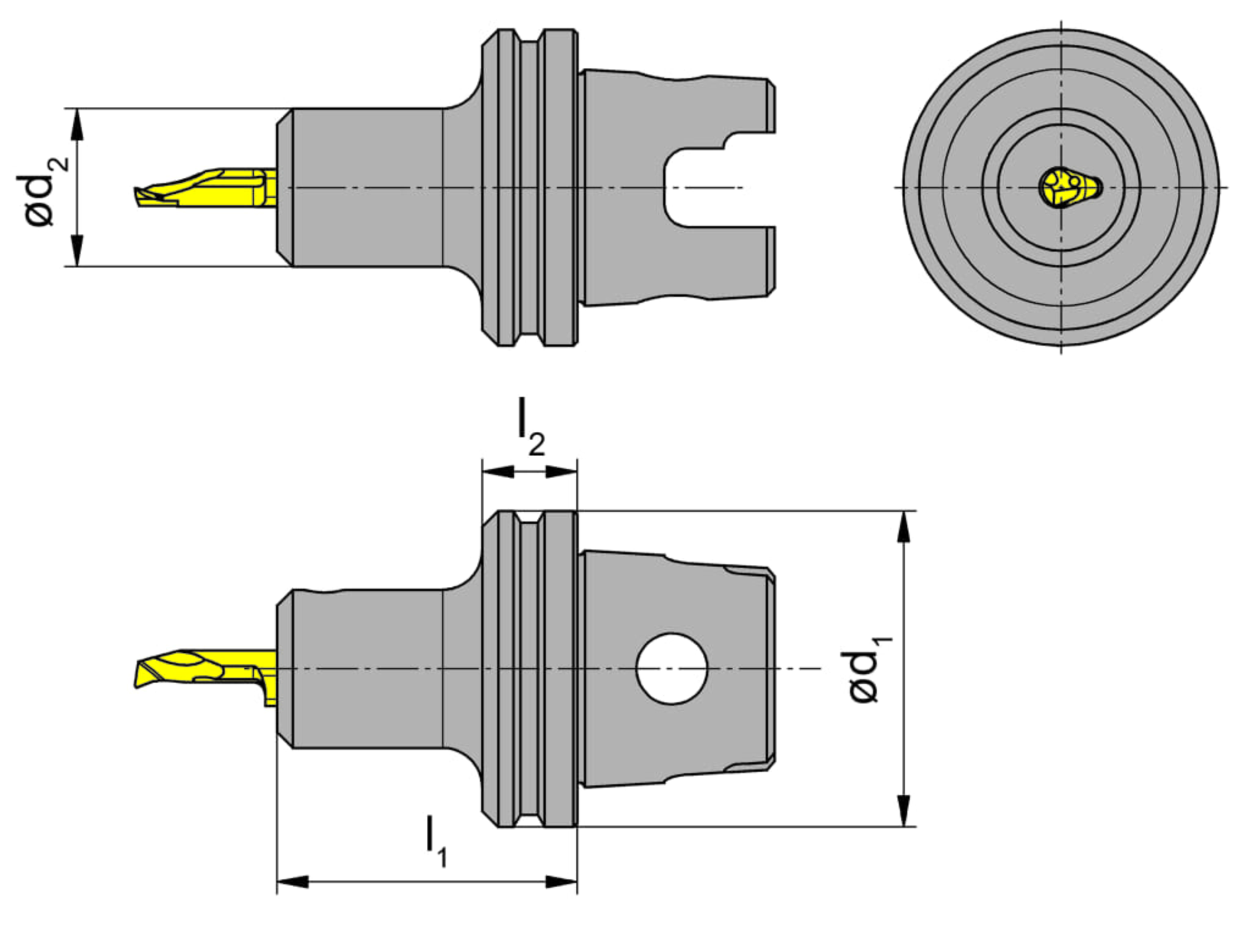

Bore diameter rotate (d1)

40 mm

Length from bore (l1)

38 mm

Working length, Extension length (l2)

26 mm

eclass-shortcut

21-18-10-05

ISO_CCTWS

HORN105123$95N$$$$$;HORN105124$95N$$$$$;HORN105125$95N$$$$$

DIN_CCTWS

HORN-10512395N;HORN-10512495N;HORN-10512595N

Katalog_CCTWS

105123;105124;105125

DIN_CCTMS

KMT04000195

ISO_CCTMS

KMT01C0400$$$$

Neck diameter (d2)

20 mm
