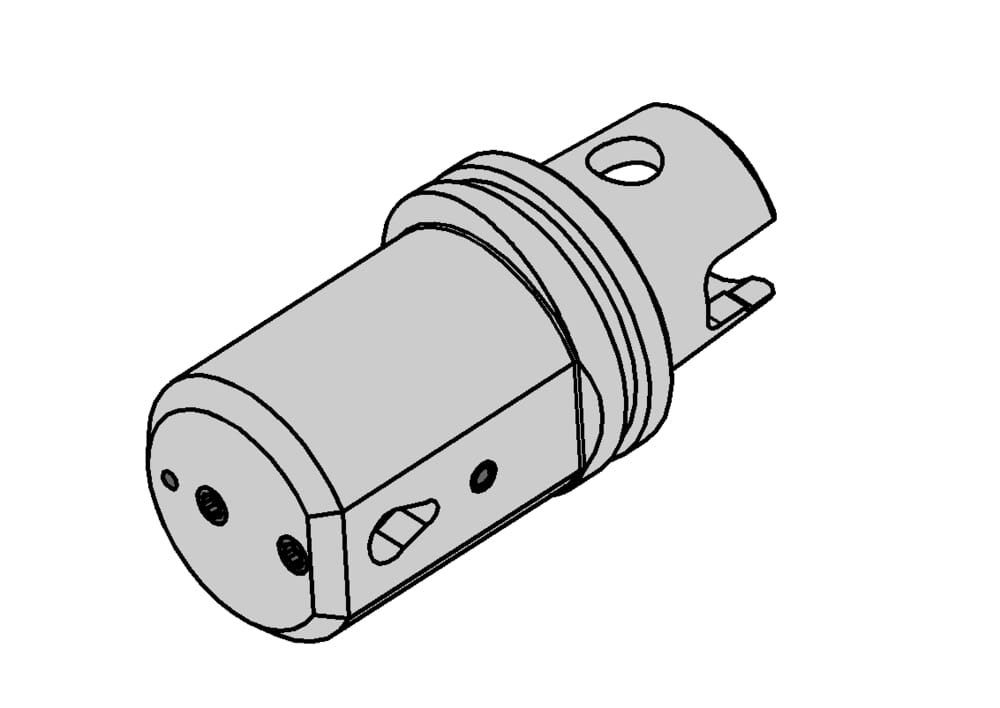

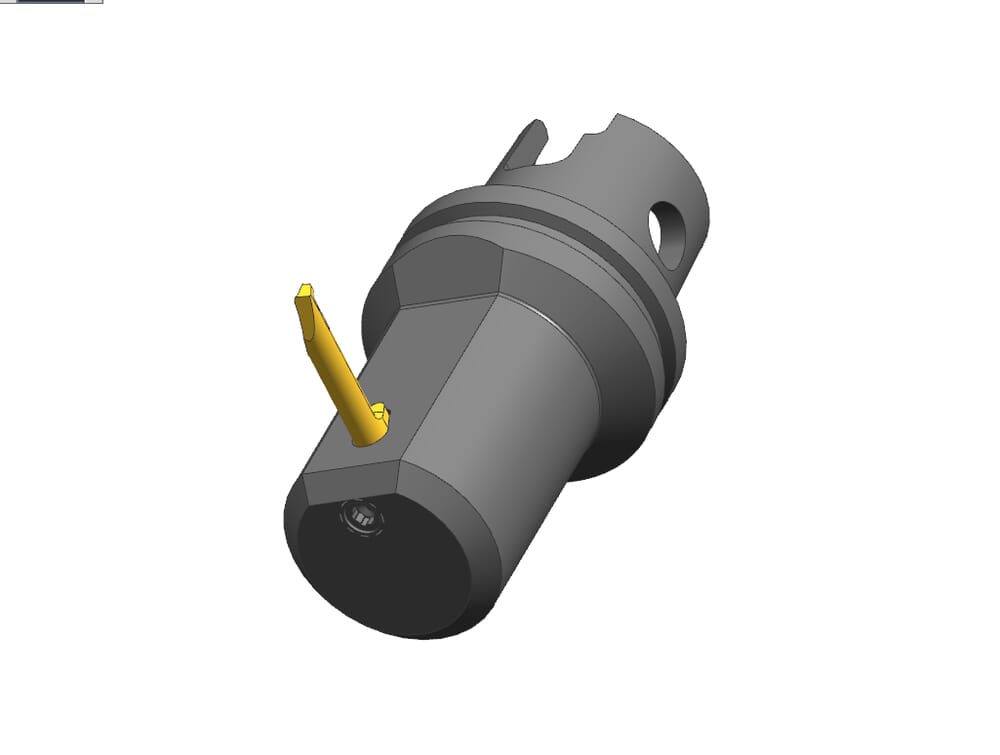

RB105.TS40.2.2.02
Toolholder
Part number RB105TS402202
HORN Toolholder RB105.TS40.2.2.02 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-10-05

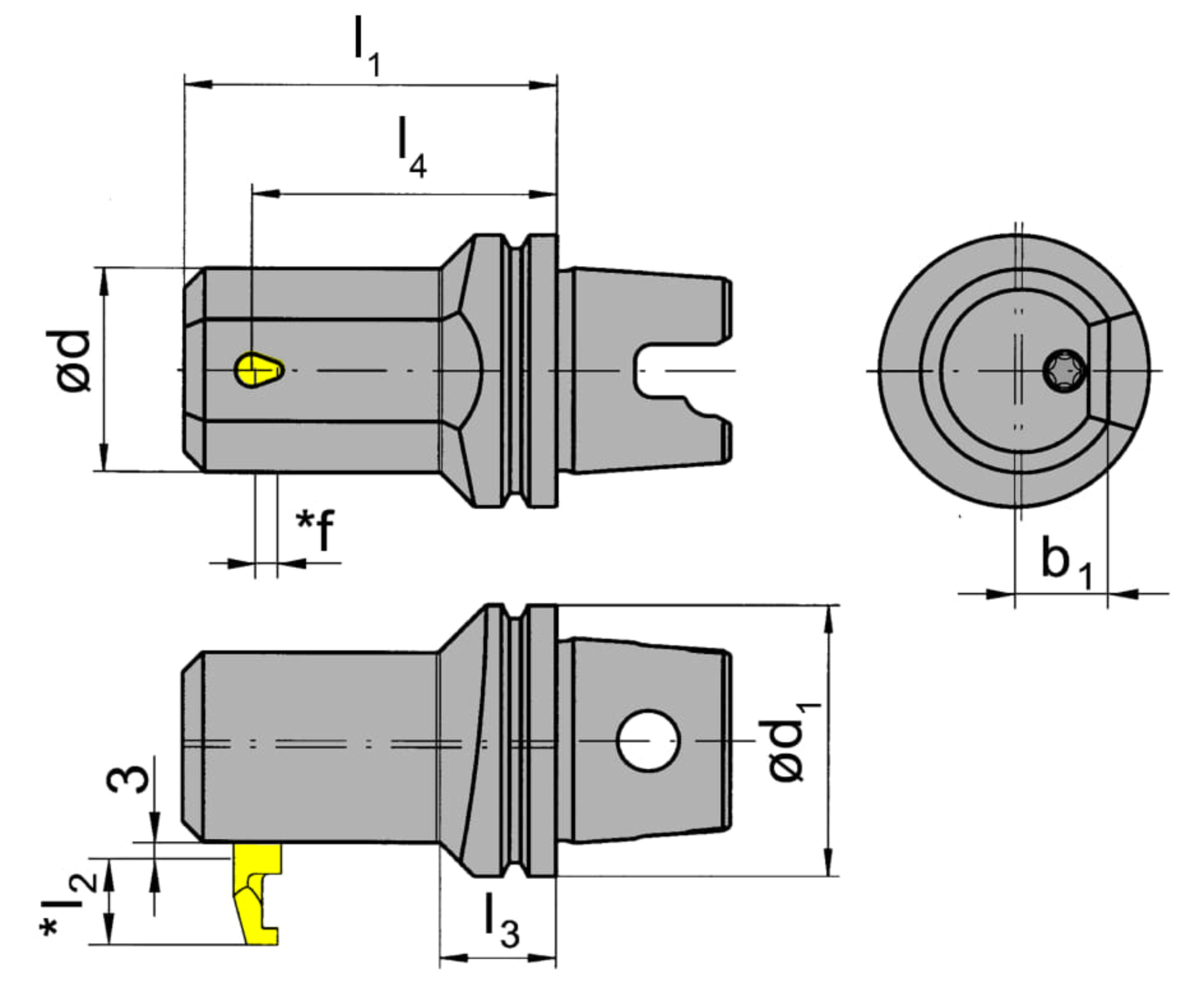

Neck diameter (d)
36
mm
ISO_CCTMS
KMT01C0400$$$$
DIN_CCTMS
KMT04000195
Katalog_CCTWS
105123;105124;105125
DIN_CCTWS
HORN-10512395N;HORN-10512495N;HORN-10512595N
ISO_CCTWS
HORN105123$95N$$$$$;HORN105124$95N$$$$$;HORN105125$95N$$$$$
Length from stop to center insert (l4)
45
mm
Length from bore (l1)
55
mm
Bore diameter rotate (d1)
40
mm
Flange thickness (l3)
14
mm
Distance from center (b1)
18
mm
| Downloads | |
|---|---|
| RB105_KM40_2_2_02.STP | Download |
| RB105TS402202.DXF | Download |
| Download all files | |
