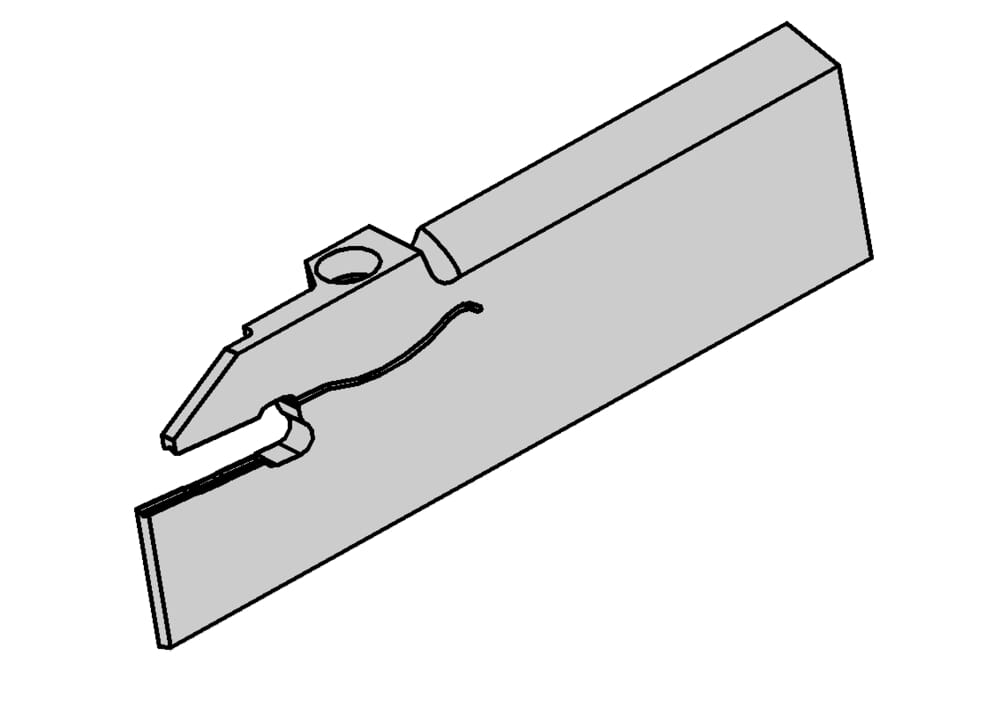

RH224260882R_PICTO.TIF

RH224260882R_PICTO.TIF

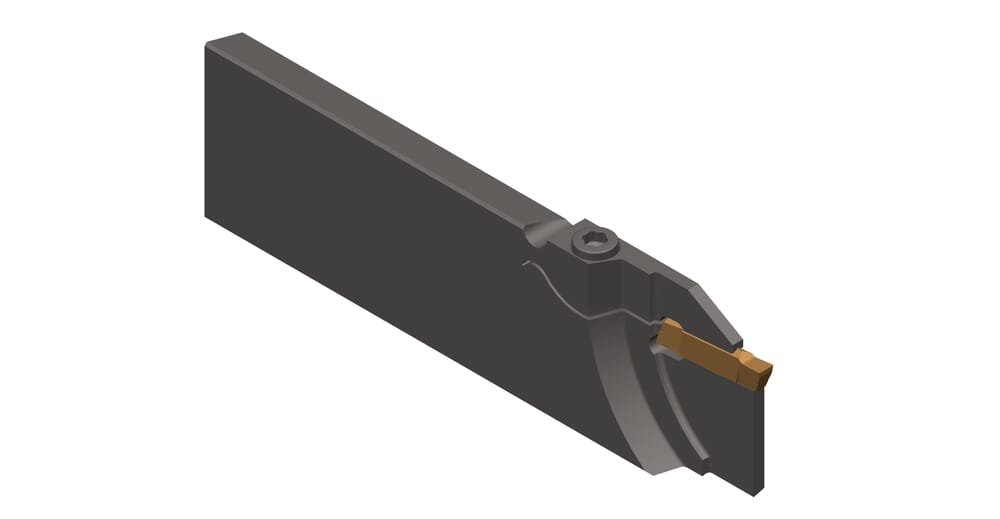

RH224320883R.TIF

RH224.3208.83R

Toolholder

ABSTECHEN_20210506_153854505.EPS

AUSSEN_EINSTECHEN.EPS

Part number RH224320883R

HORN Toolholder RH224.3208.83R for Turning

Please note:Technical instructions

ISO_CCTWS

HORN224030058N$$$$$

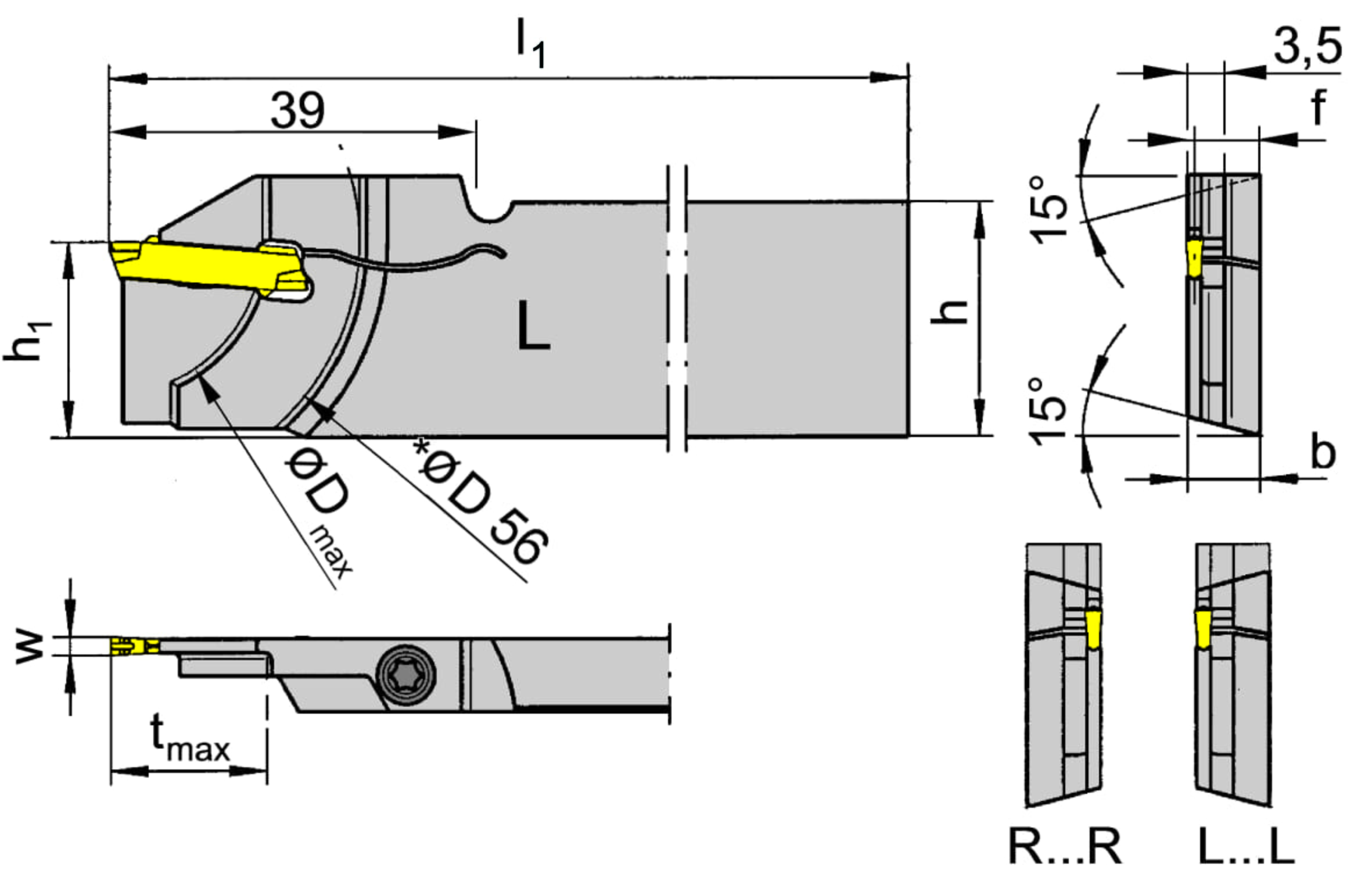

Width of groove (w)

3 mm

Plating seat size (Größe)

3

ISO_CCTMS

PMU01C0320$$$$

DIN_CCTMS

PMU03200105

Katalog_CCTWS

224038

DIN_CCTWS

HORN-224030058N

Width / thickness sword (b)

7.9 mm

Clamping range maximum (Spannbereich)

3.7 mm

Clamping range minimum (Spannbereich)

2.8 mm

Peak height (h1)

24.8 mm

Maximum workpiece diameter (Dmax)

42 mm

Maximum insertion depth (tmax)

21 mm

Head height (h)

32 mm

Total length (including cutting insert) (l1)

110 mm

Adjustment dimension (f)

6.8 mm

Downloads
RH224_3208_83R.STP	Download
RH224320883R_20211124_164412271.DXF	Download
Download all files
