RS111.0150.D1 EG55
Insert
Part number RS1110150D1EG55

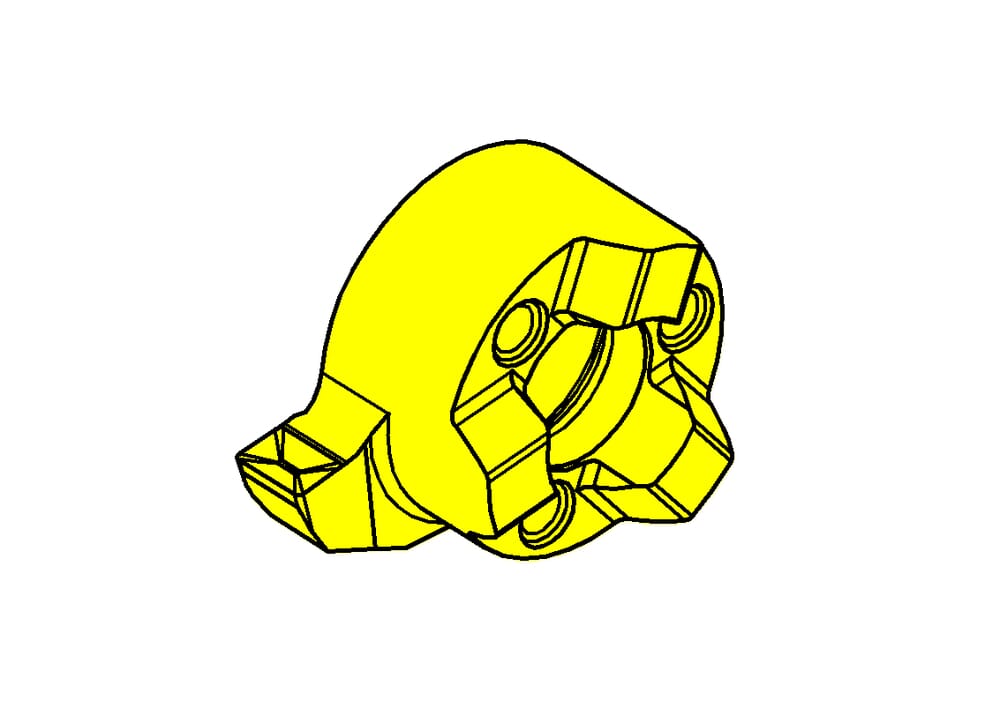

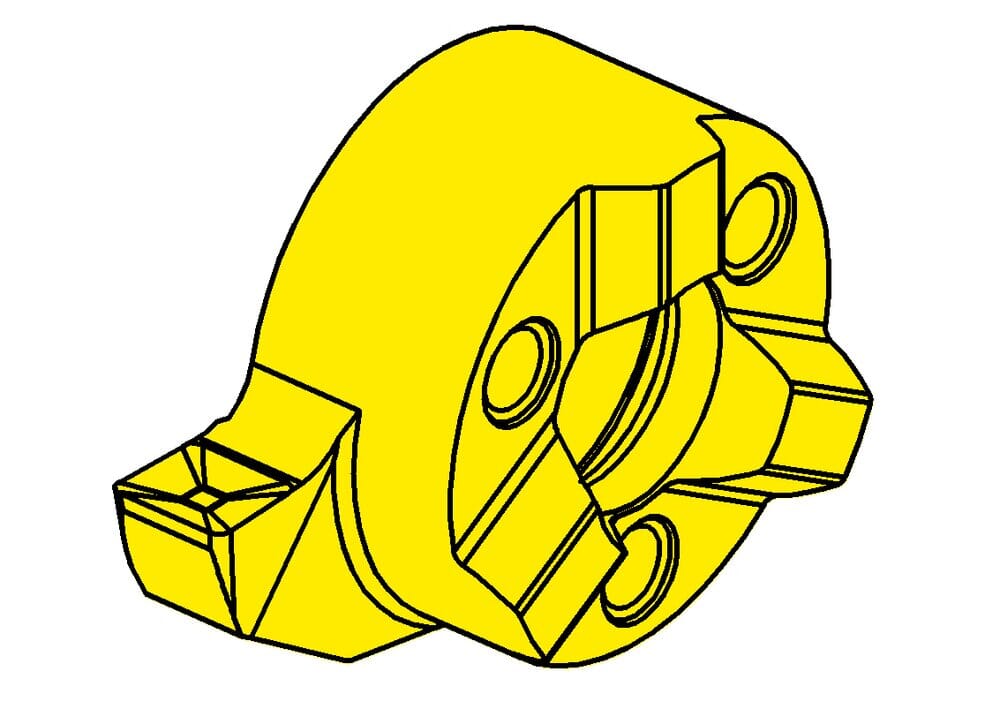

HORN Insert RS111.0150.D1 EG55 for Turning
Please note:Technical instructions
ISO_SSC
HORN111080$84R$$$$$

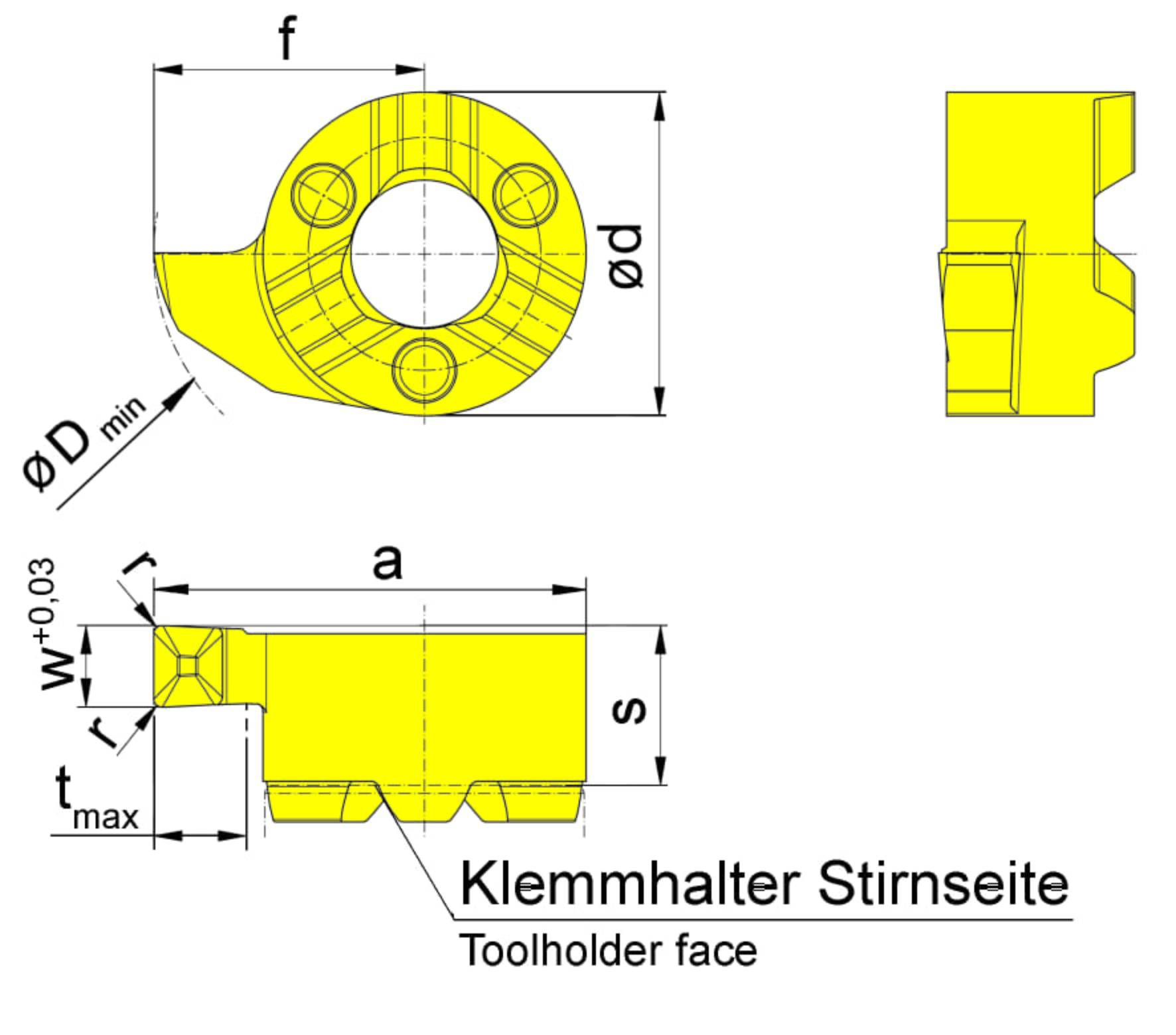

Smallest bore diameter (Dmin)
11
mm
Cutting insert height, Cutting insert thickness (s)
3.95
mm
Corner radius (r)
0.1
mm
Tooth diameter, head diameter (d)
8
mm
Setting range radial (f)
6.7
mm
Width of groove (w)
1.5
mm
Katalog_SSC
111080R
DIN_SSC
HORN-11108084R
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
2.3
mm
Head size (a)
10.7
mm
| Downloads | |
|---|---|
| RS1110150D1_20230116_131246904.STP | Download |
| RS1110150D1.DXF | Download |
| Download all files | |
