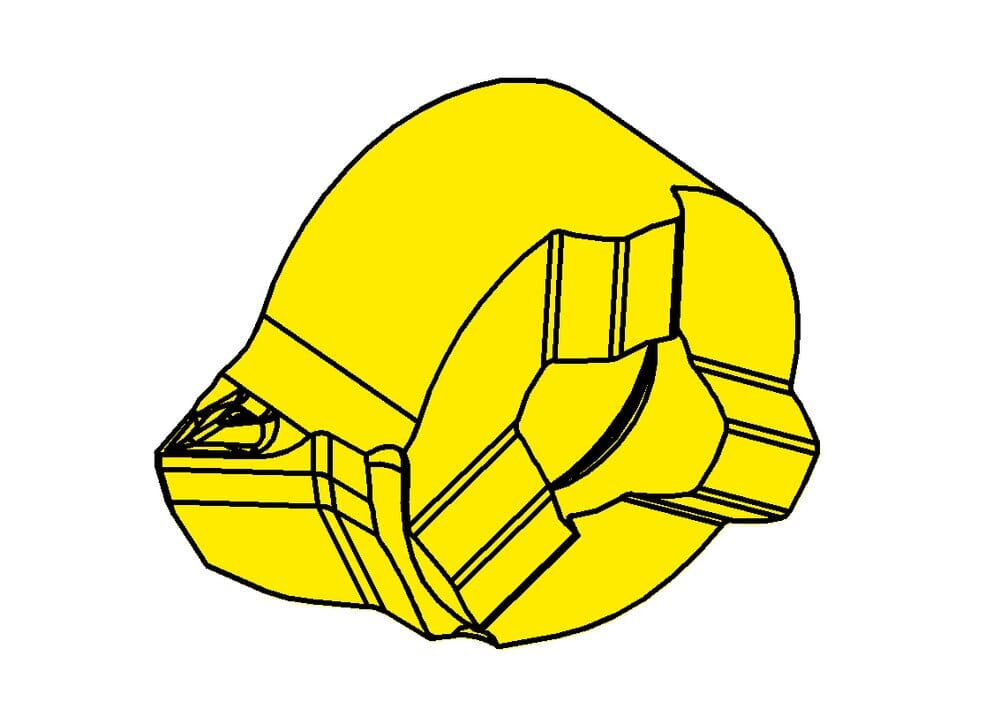

RS111.1020.GM1 EG55

Insert

Part number RS1111020GM1EG55

HORN Insert RS111.1020.GM1 EG55 for Gewinden

ISO_SSC

HORN111080$84R$$$$$

Katalog_SSC

111080R

Setting range radial (f)

6.7 mm

Cutting insert width (a)

10.7 mm

Tooth diameter, head diameter (d)

8 mm

Setting length (E)

3.1 mm

Cutting insert height, Cutting insert thickness (s)

4.1 mm

Smallest bore diameter (Dmin)

11 mm

Pitch (P)

2 mm

Maximum pitch (Pmax)

2 mm

Inserts

S224050054TF45
