RS229.0540.32 TI25
Inserts
Part number RS229054032TI25

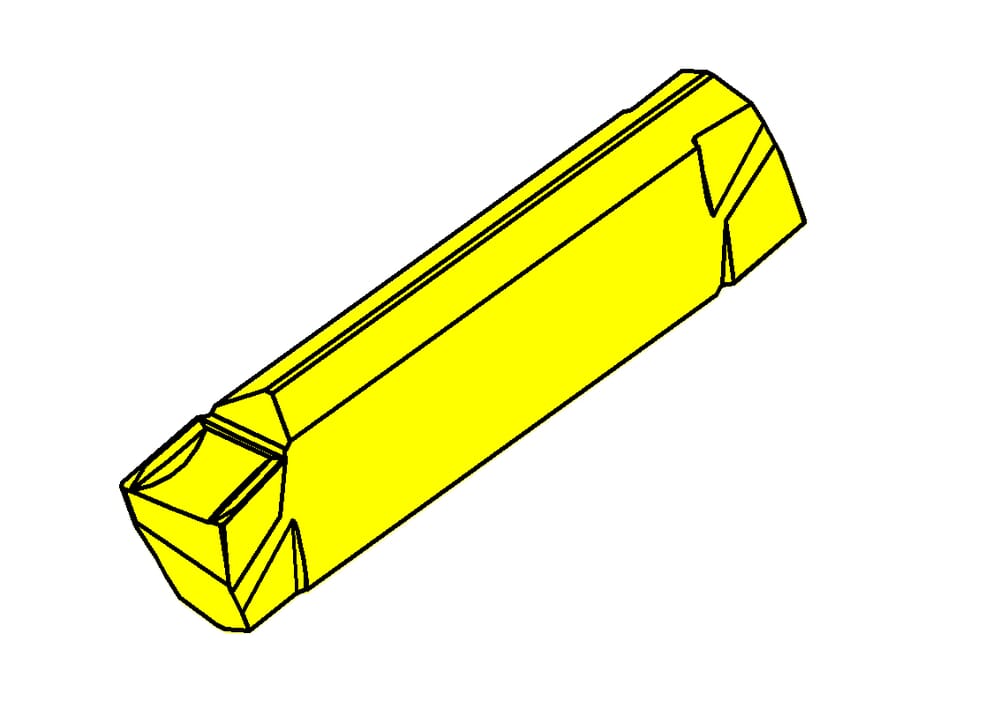

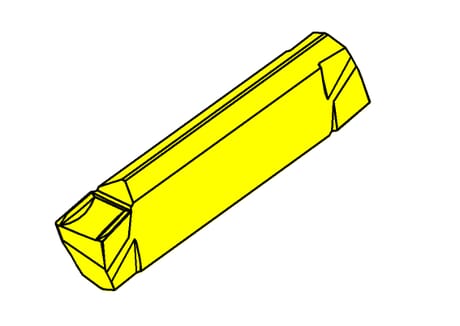

HORN Inserts RS229.0540.32 TI25 for Turning
Please note:Technical instructions
Parting-off chamfer (α)
5
°
eclass-shortcut
21-18-20-03
ISO_SSC
HORN229030108N$$$$$;HORN229040108N$$$$$
DIN_SSC
HORN-229030108N;HORN-229040108N
Katalog_SSC
229030;229040
Plating seat size (Größe)
3;4
Width of groove (w)
4
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| RS229054032.STP | Download |
| RS229054032_20210709_130245444.DXF | Download |
| Download all files | |
