RS274.0200.04.M0 IG35
Insert
Part number RS274020004M0IG35

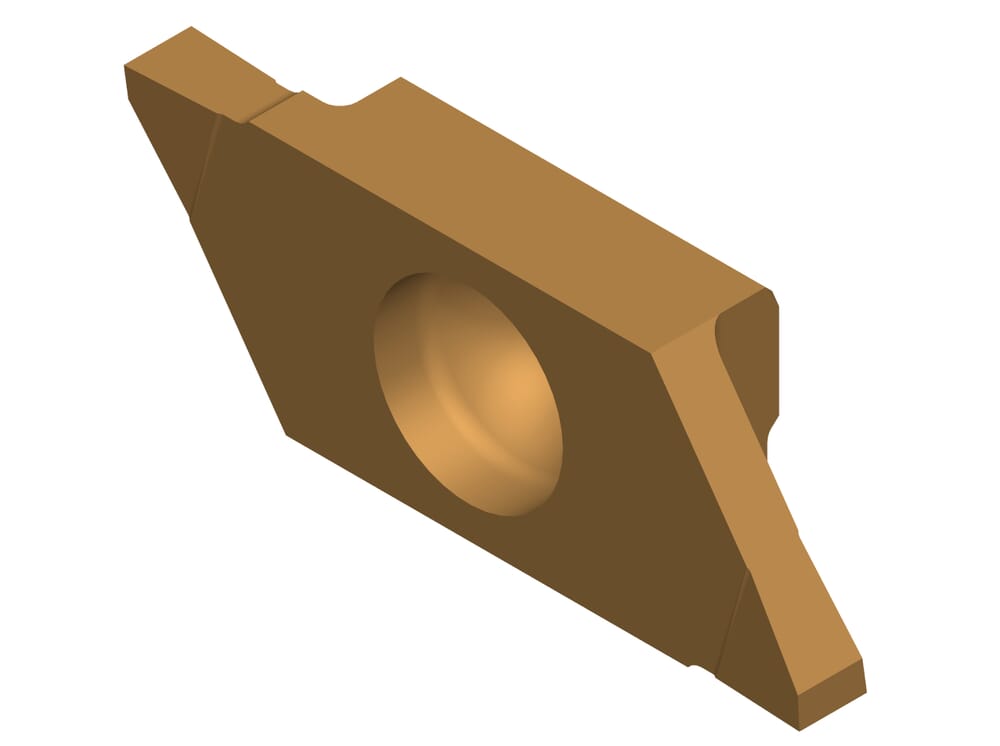

HORN Insert RS274.0200.04.M0 IG35 for Turning
Please note:Technical instructions

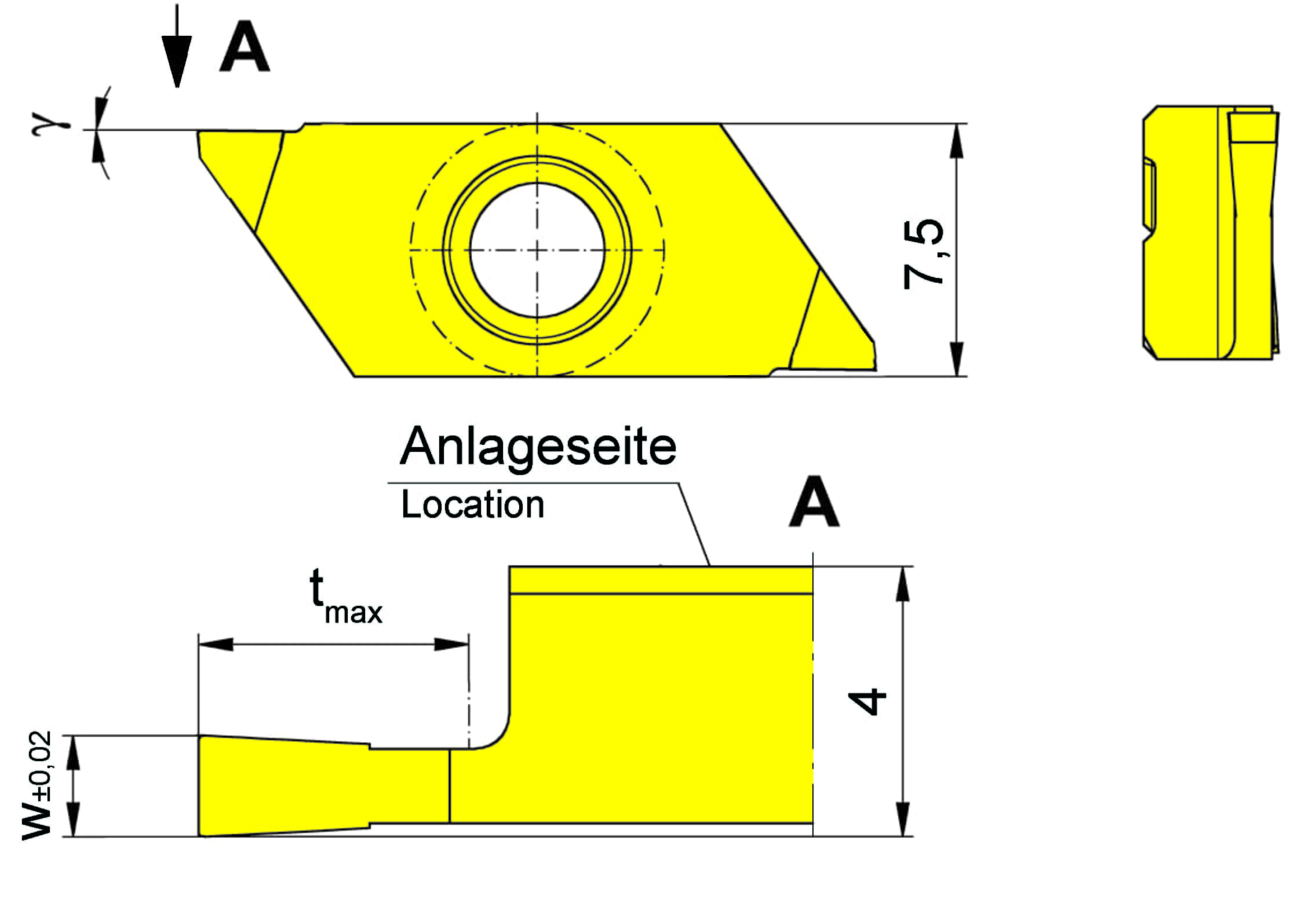

Maximum depth of groove (tmax)
4
mm
Cutting angle (γ)
0
°
eclass-shortcut
21-18-20-03
ISO_SSC
HORN274040000R$$$$$
DIN_SSC
HORN-274040000R
Katalog_SSC
274040R
Plating seat size (Größe)
4
Width of groove (w)
2
mm
| Downloads | |
|---|---|
| RS274020004M0_20240116_172919394.STP | Download |
| RS274020004M0_20211124_203523679.DXF | Download |
| Download all files | |
