RS274.0250.P0 IG35
Insert
Part number RS2740250P0IG35

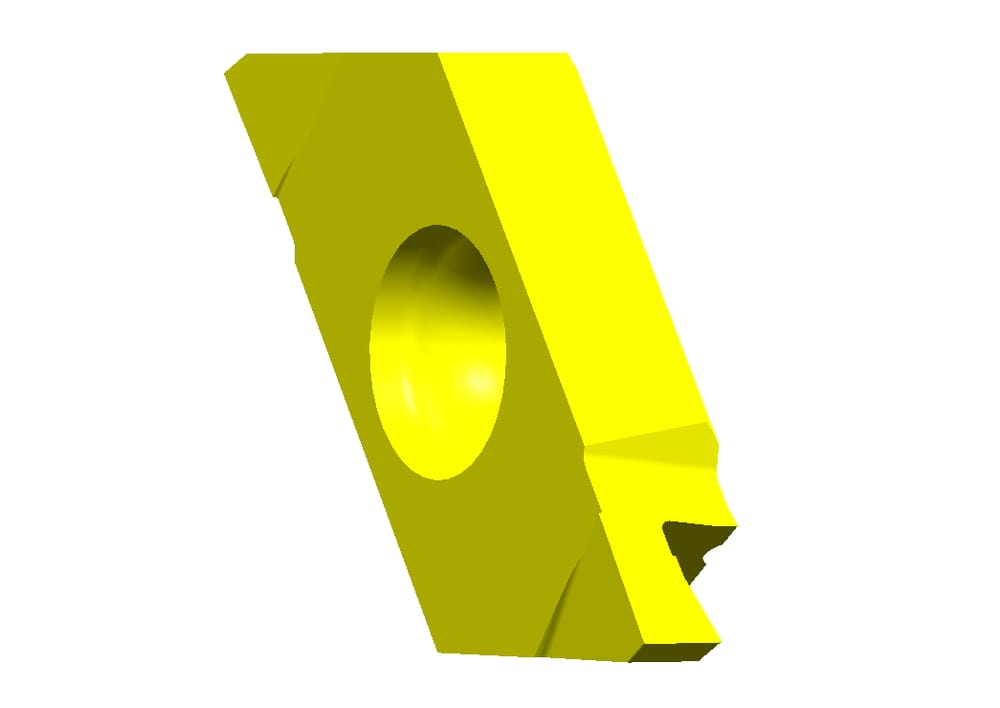

HORN Insert RS274.0250.P0 IG35 for Turning
Please note:Technical instructions
Maximum depth of groove (tmax)
3.75
mm
eclass-shortcut
21-18-20-03
ISO_SSC
HORN274040000R$$$$$
DIN_SSC
HORN-274040000R
Katalog_SSC
274040R
Plating seat size (Größe)
4
Width of groove (w)
2.5
mm
Corner radius (r)
0.1
mm
| Downloads | |
|---|---|
| RS2740250P0_20240116_173504358.STP | Download |
| RS2740250P0.DXF | Download |
| Download all files | |
