RS274.0460.04.10.E TH35
Insert
Part number RS27404600410ETH35

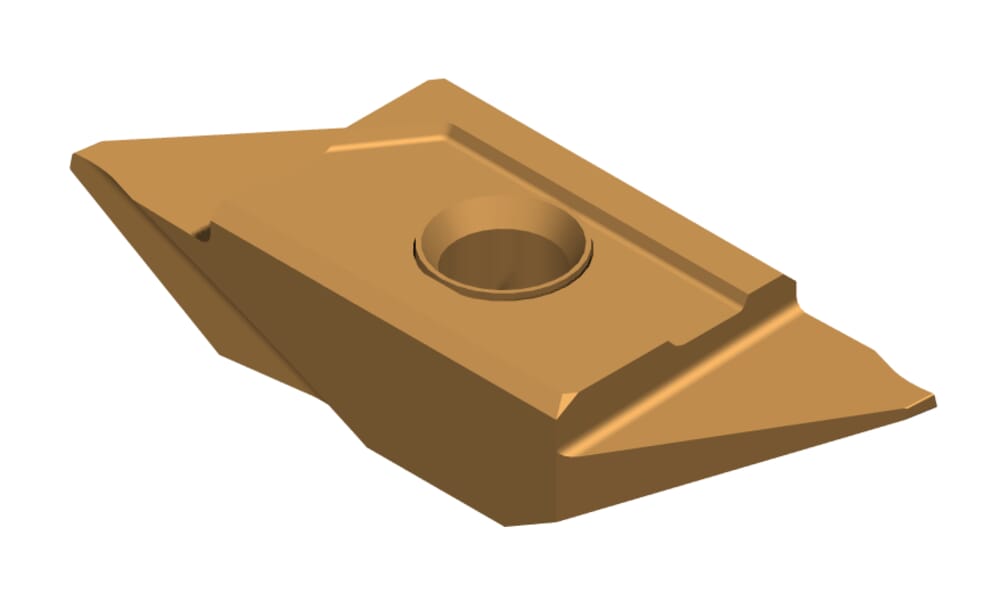

HORN Insert RS274.0460.04.10.E TH35 for Turning
Please note:Technical instructions
Cancellation (a)
1 mm
Cutting angle (γ)
15 °
eclass-shortcut
21-18-20-03
ISO_SSC
HORN274140000R$$$$$
Katalog_SSC
274140R
Plating seat size (Größe)
4
Width of groove (w)
0.4 mm
Corner radius (r)
0.05 mm
Maximum stepover (ap) (ap)
4 mm
| Downloads | |
|---|---|
| RS27404600410E_20240116_173617773.STP | Download |
| RS27404600410E_20210629_031248292.DXF | Download |
| Download all files | |
