RS274.0510.03.10.E TH35
Insert
Part number RS27405100310ETH35

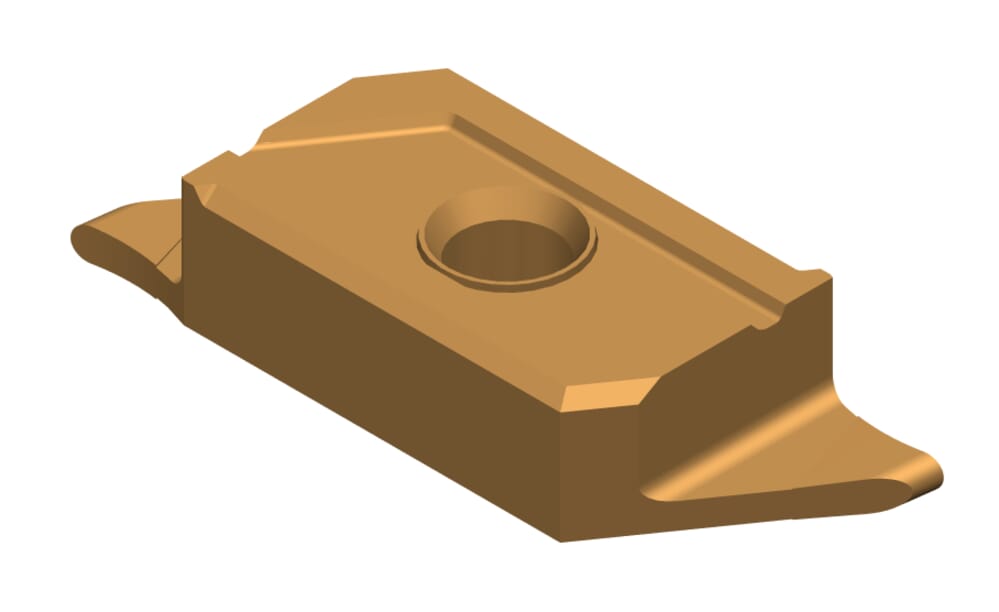

HORN Insert RS274.0510.03.10.E TH35 for Turning
Please note:Technical instructions
Maximum depth of groove (tmax)
3
mm
Full radius (r)
0.5
mm
eclass-shortcut
21-18-20-03
ISO_SSC
HORN274140000R$$$$$
DIN_SSC
HORN-274140000R
Katalog_SSC
274140R
Plating seat size (Größe)
4
Width of groove (w)
1
mm
| Downloads | |
|---|---|
| RS27405100310E_20240116_173739749.STP | Download |
| RS27405100310E_20210629_031405684.DXF | Download |
| Download all files | |
