RS274.0535.06.20 IG35
Insert
Part number RS27405350620IG35

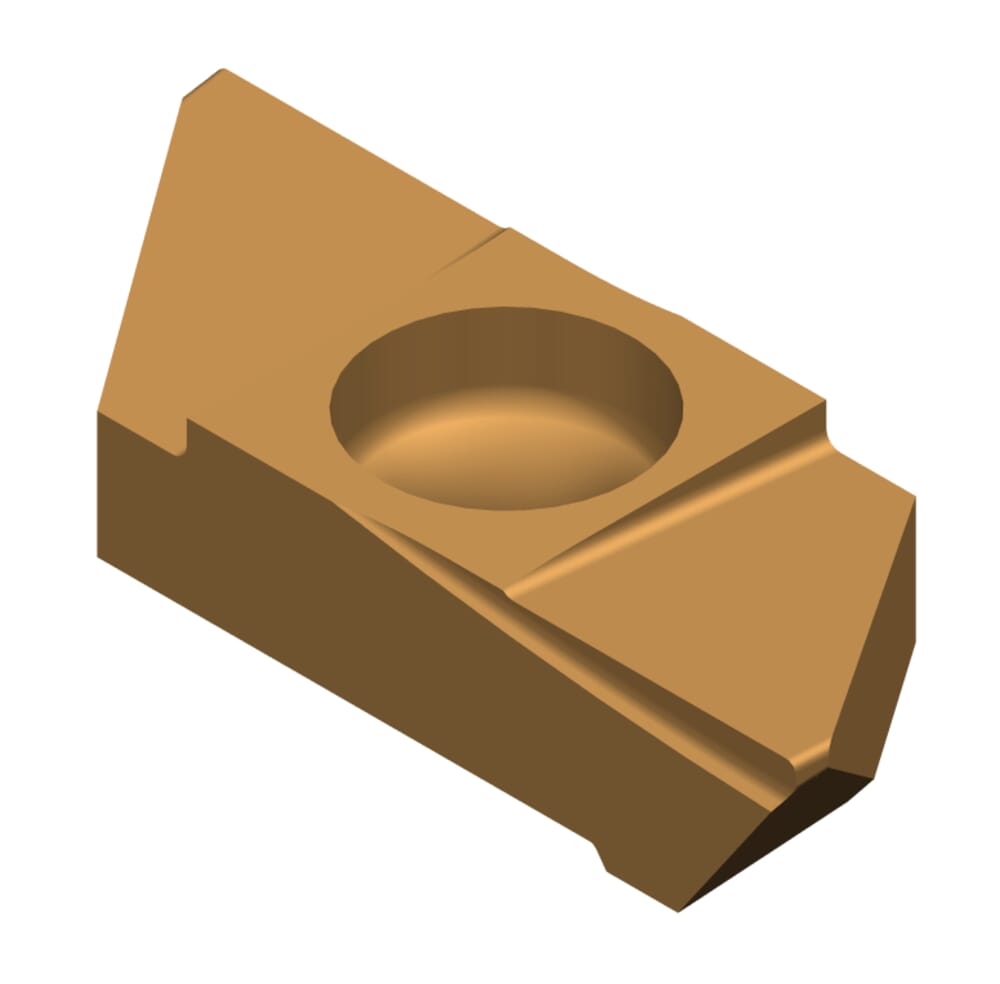

HORN Insert RS274.0535.06.20 IG35 for Turning
Please note:Technical instructions
Katalog_SSC
274040R
Maximum stepover (ap) (ap)
6 mm
Corner radius (r)
0.2 mm
Width of groove (w)
0.5 mm
Plating seat size (Größe)
4
Cancellation (a)
0.1 mm
ISO_SSC
HORN274040000R$$$$$
Wiper angle (α2)
0 °
eclass-shortcut
21-18-20-03
Cutting angle (γ)
5 °
Parting-off chamfer (α1)
35 °
| Downloads | |
|---|---|
| RS27405350620_20230116_082151460.STP | Download |
| RS27405350620_20211124_201712977.DXF | Download |
| Download all files | |
