RS274.1020.04.10 IG35
Insert
Part number RS27410200410IG35

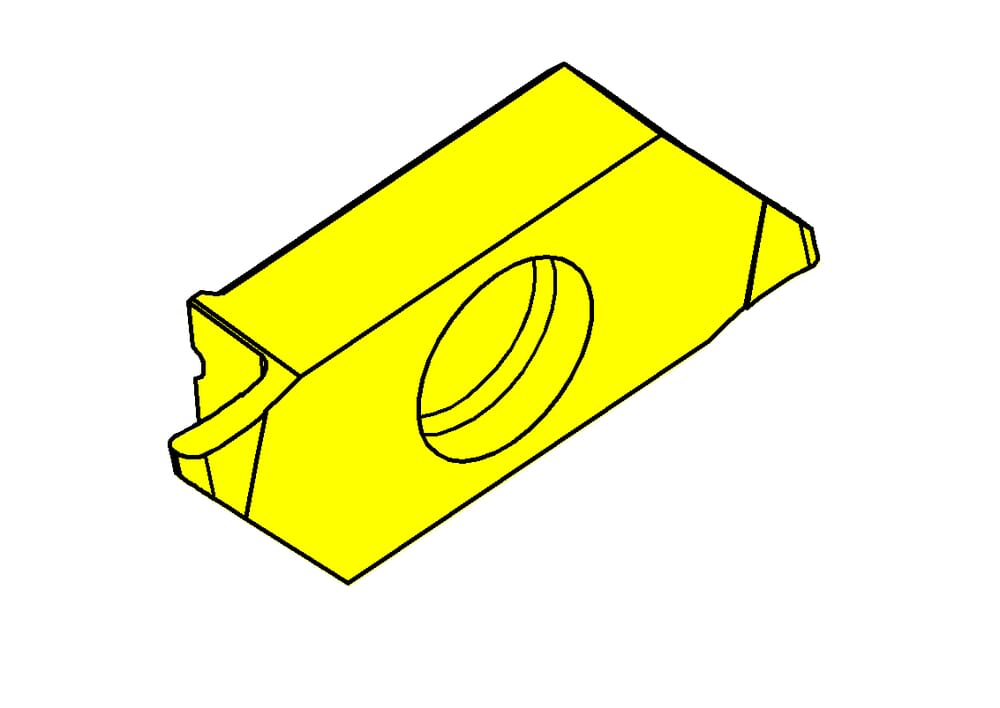

HORN Insert RS274.1020.04.10 IG35 for Turning
Please note:Technical instructions

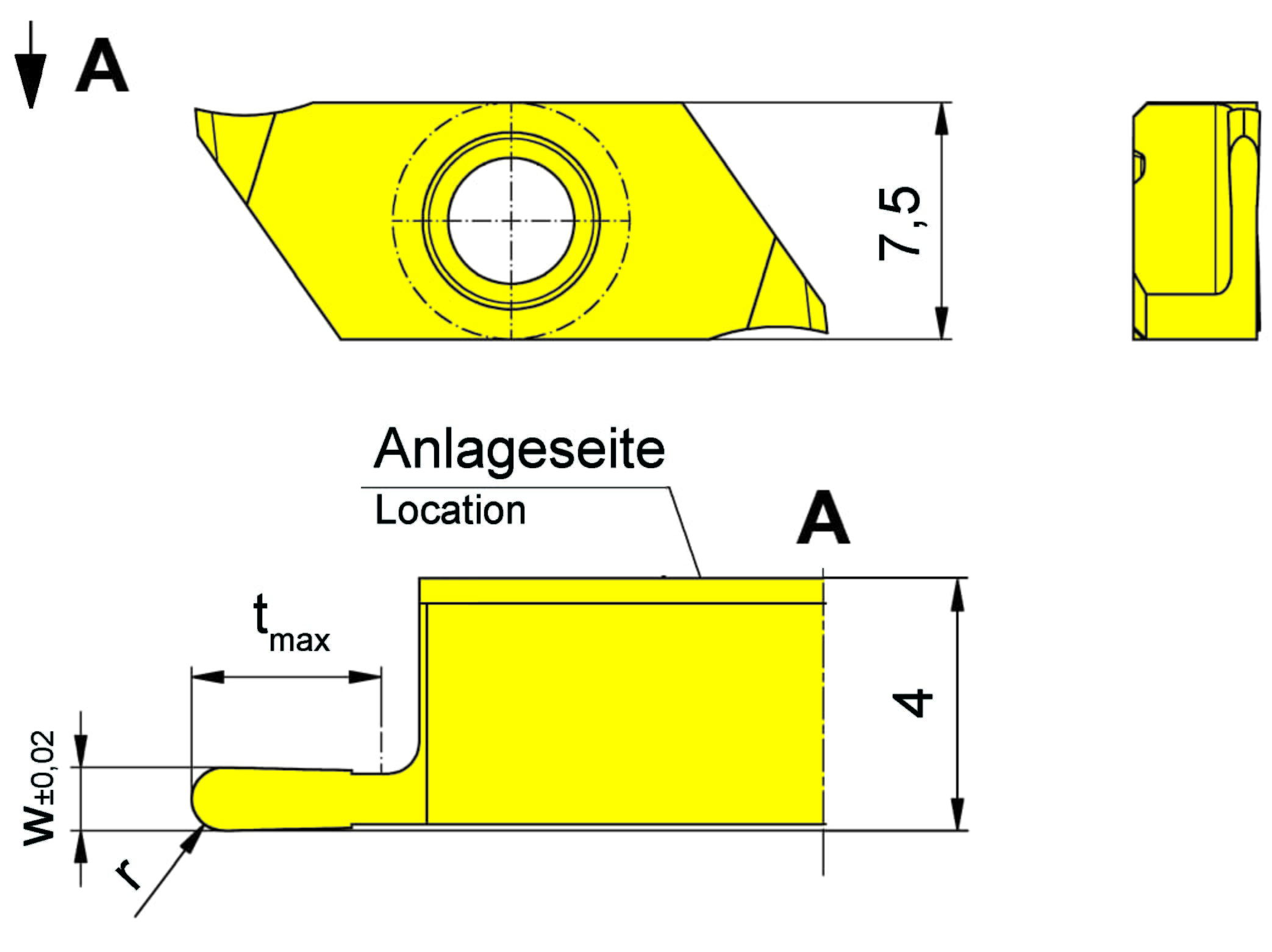

Maximum depth of groove (tmax)
4
mm
Full radius (r)
1
mm
eclass-shortcut
21-18-20-03
ISO_SSC
HORN274040000R$$$$$
DIN_SSC
HORN-274040000R
Katalog_SSC
274040R
Plating seat size (Größe)
4
Width of groove (w)
2
mm
| Downloads | |
|---|---|
| RS27410200410_20230116_085728942.STP | Download |
| RS27410200410.DXF | Download |
| Download all files | |
