RS274151504M0_PICTO.TIF
RS274151504M0_PICTO.TIF RS274150803M0.TIF

RS274.1508.03.M0 TH35

Insert

ABSTECHEN_20210506_153854505.EPS GEOMETRIE_M0.EPS

Part number RS274150803M0TH35

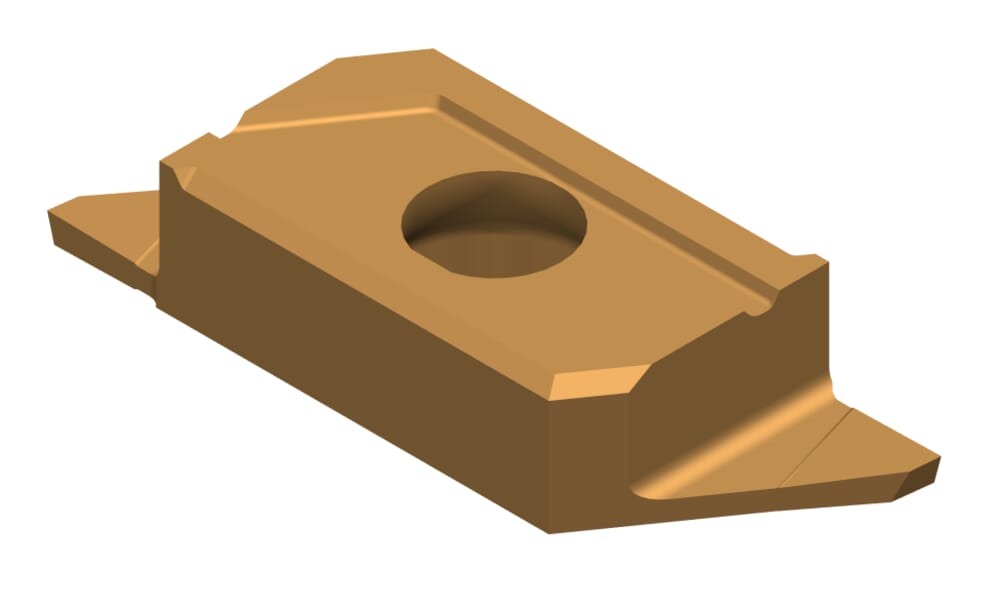

HORN Insert RS274.1508.03.M0 TH35 for Turning

Please note:Technical instructions

Parting-off chamfer (α)
15 °
Maximum depth of groove (tmax)
3 mm
Cutting angle (γ)
0 °
eclass-shortcut
21-18-20-03
ISO_SSC
HORN274040000R$$$$$
Katalog_SSC
274040R
Plating seat size (Größe)
4
Width of groove (w)
0.8 mm
Downloads
RS274150803M0_20240116_172927238.STP Download
RS274150803M0_20211124_203800045.DXF Download
Download all files
