RS310.5028.00 TF45
Inserts
Part number RS310502800TF45

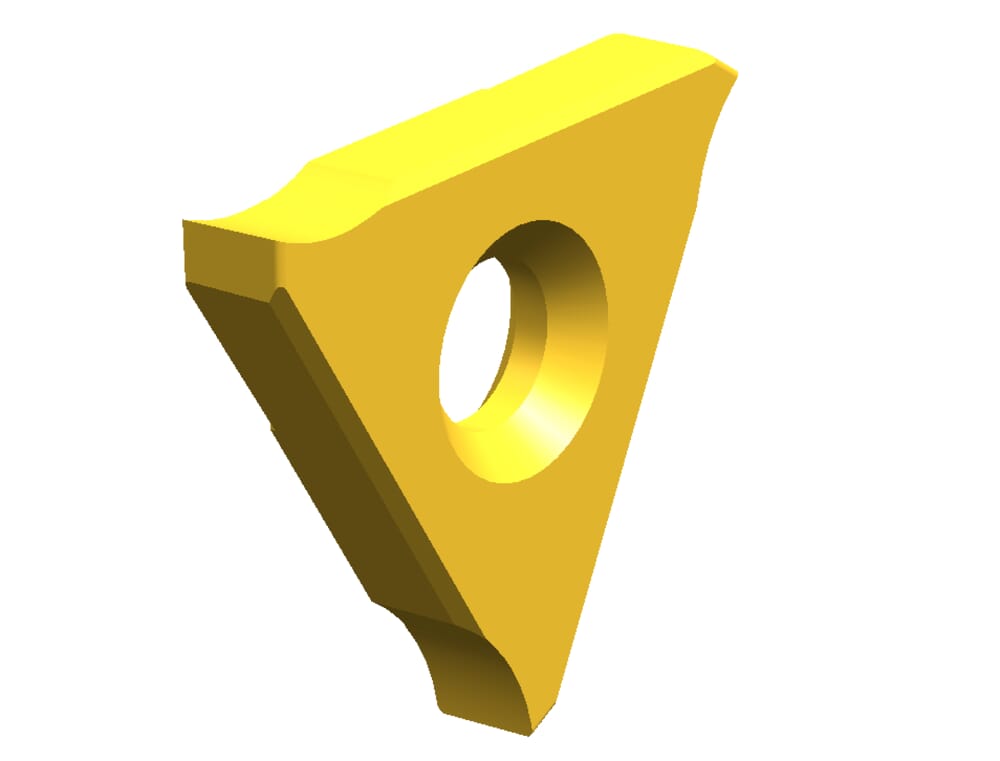

HORN Inserts RS310.5028.00 TF45 for Milling
Please note:Technical instructions
eclass-shortcut
21-18-20-01
ISO_SSC
HORN310023101R$$$$$
Katalog_SSC
310023R
cutting-width-met
5 mm
Cutting insert thickness (Plant to cutting edge) (bs)
2.8 mm
Plate thickness without cutting edge (s)
2.7 mm
Corner radius (r)
0.2 mm
| Downloads | |
|---|---|
| RS310502800_20210630_143349764.STP | Download |
| RS310502800_20210629_034233111.DXF | Download |
| Download all files | |
