RS32T.0250.P0 EG55
Insert
Part number RS32T0250P0EG55

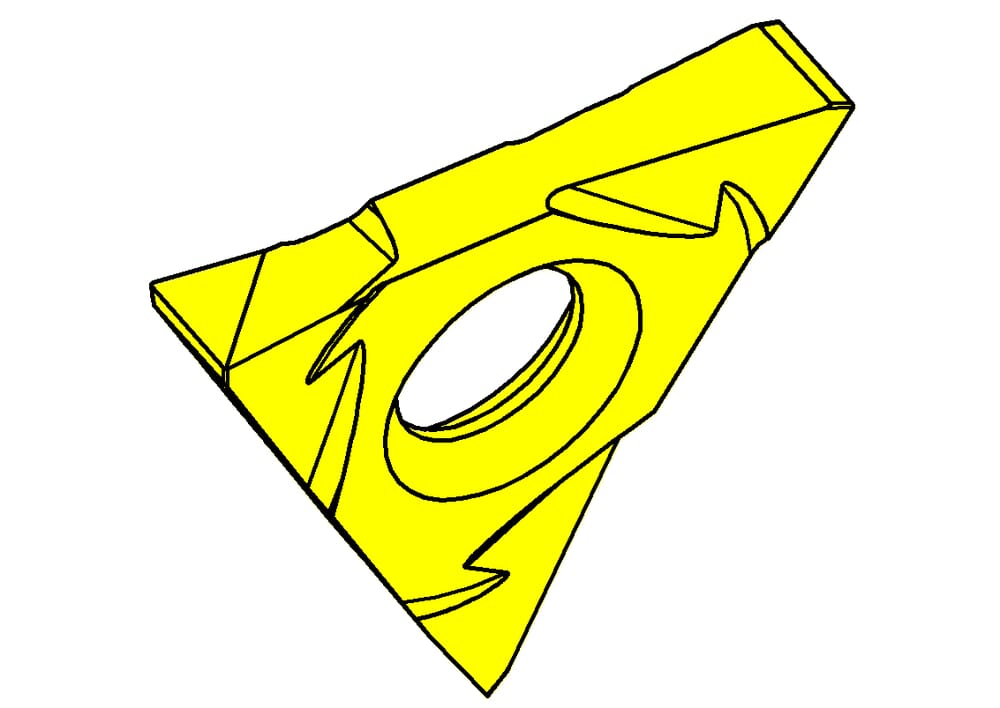

HORN Insert RS32T.0250.P0 EG55 for Turning
Please note:Technical instructions

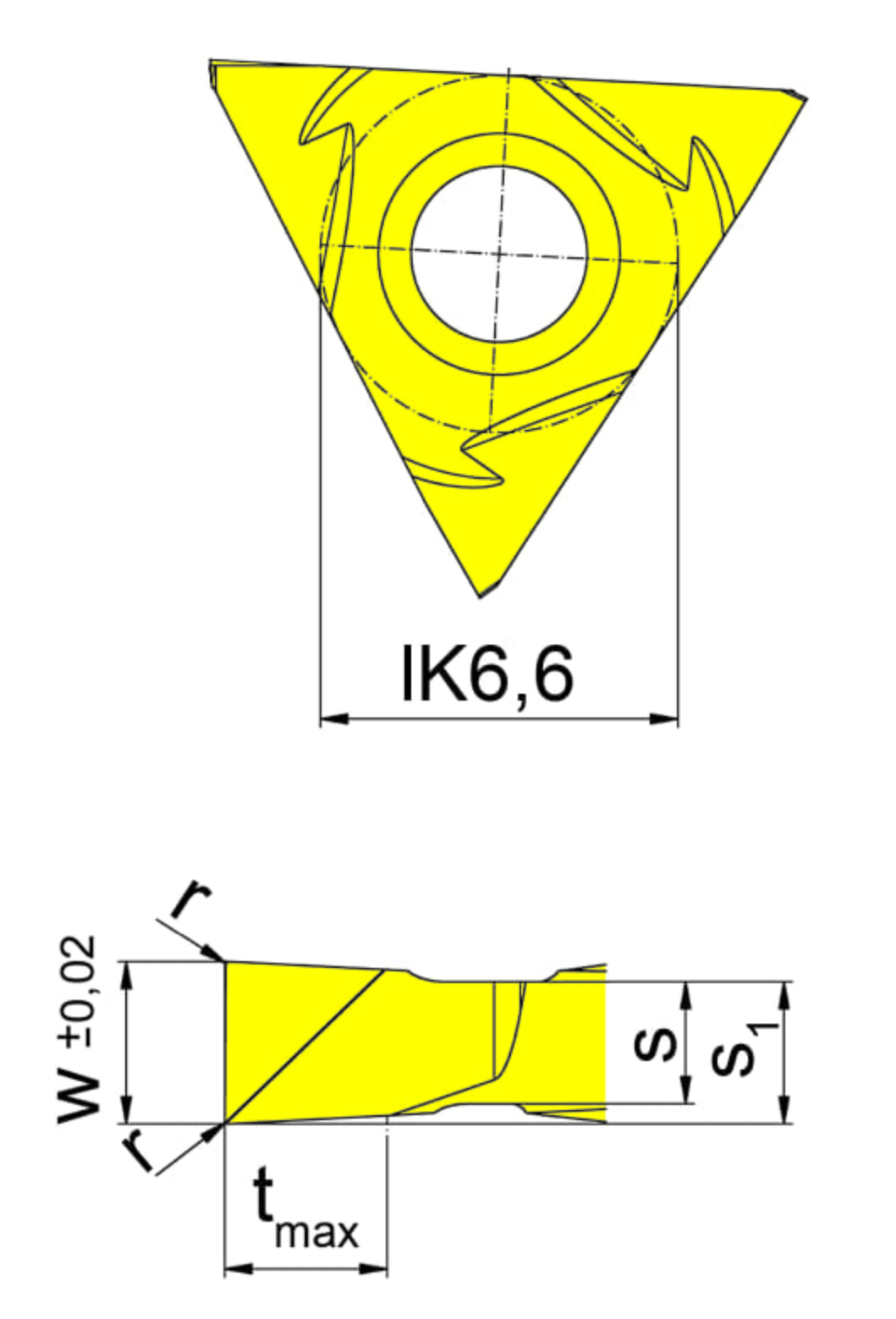

Maximum depth of groove (tmax)
2
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN32T02$$$4R$$$$$
DIN_SSC
HORN-32T024R
Katalog_SSC
32T02R
Plating seat size (Größe)
2
Width of groove (w)
2.5
mm
Cutting insert thickness to cutting edge, setting length to cutting edge (s1)
2.25
mm
Corner radius (r)
0.1
mm
Cutting insert height, Cutting insert thickness (s)
2
mm
| Downloads | |
|---|---|
| RS32T0250P0_20240116_174844373.STP | Download |
| Download all files | |
