S117.6045.14.A1 AN45

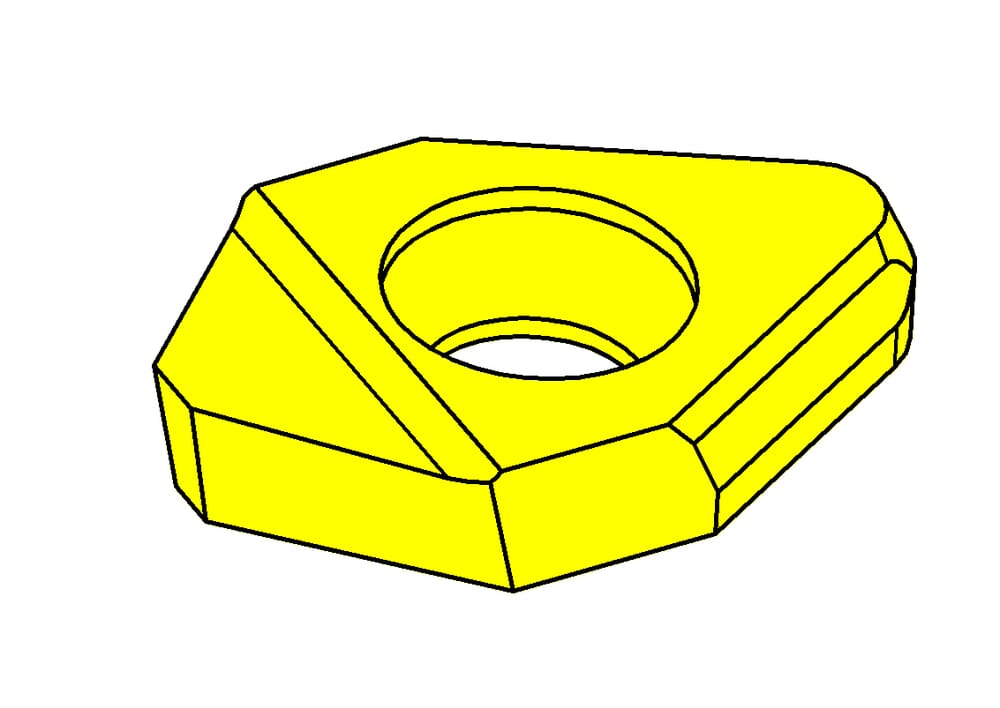

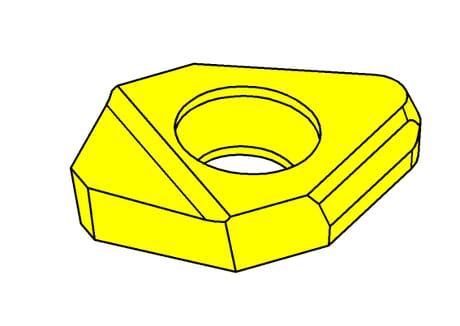

117 style broach insert - A1 geometry

Part number S117604514A1AN45

HORN 117 style broach insert - A1 geometry S117.6045.14.A1 AN45 for Broaching

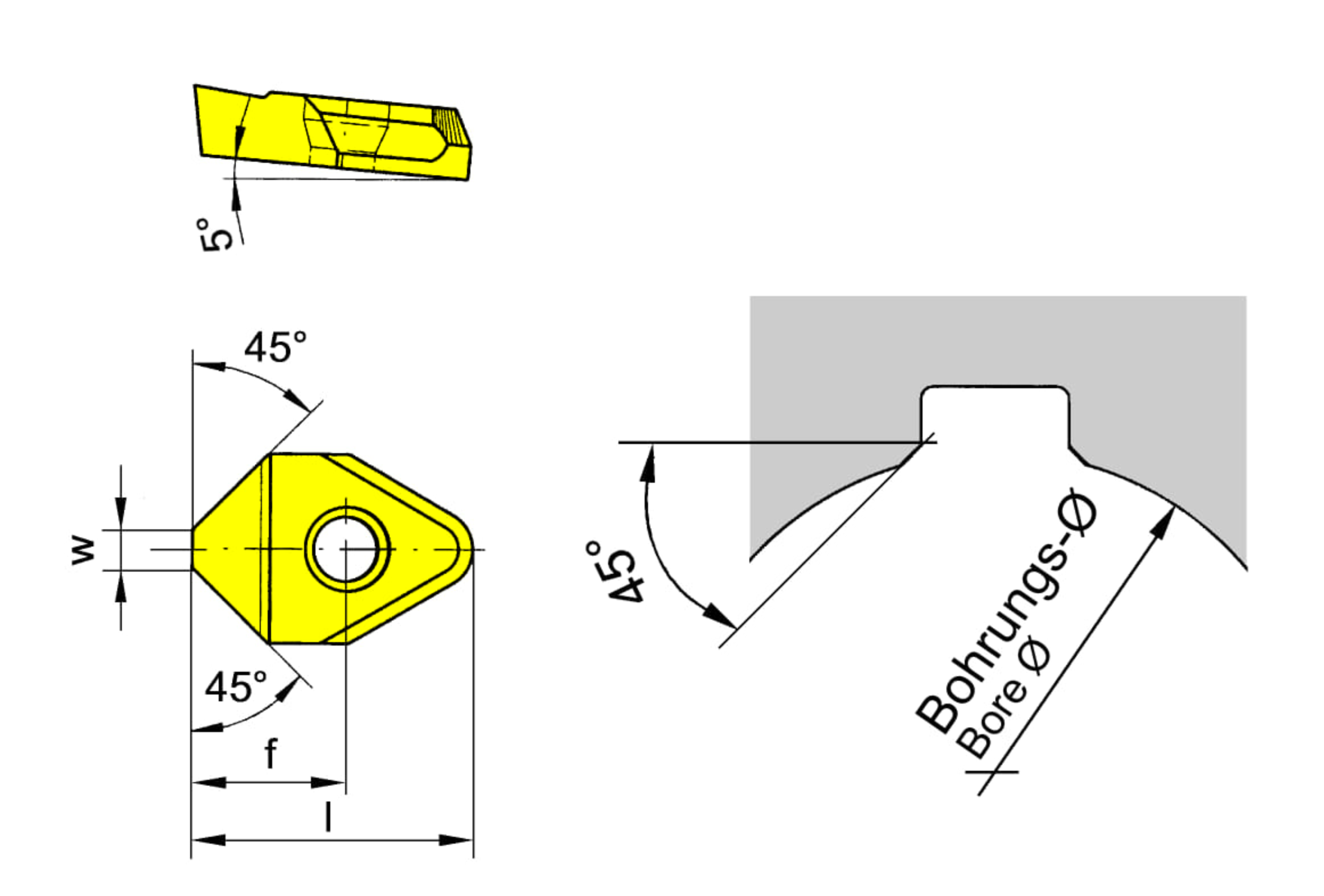

Cutting insert center from the middle (f)

11.2 mm

eclass-shortcut

21-18-20-11

Cutting width (w)

6 mm

ISO_SSC

HORN117C61050N$$$$$;HORN117D61050N$$$$$

DIN_SSC

HORN-117C61050N;HORN-117D61050N

Katalog_SSC

117C605;117D605

Form (Form)

C/D

Total length (l)

20.7 mm

Smallest bore diameter (Dmin)

30 mm
