S117.SW14.08.B2 AN45

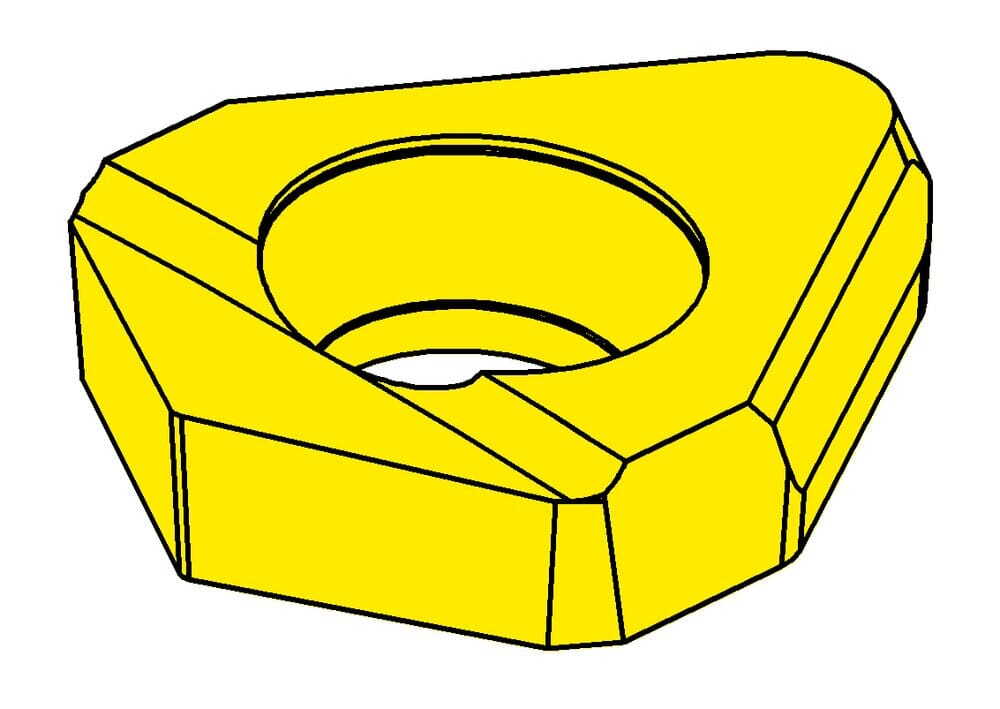

117 style broach insert - B2 geometry

Part number S117SW1408B2AN45

HORN 117 style broach insert - B2 geometry S117.SW14.08.B2 AN45 for Broaching

Key range maximum (SW)

16 mm

Cutting width minimum (b1)

4.94 mm

Smallest bore diameter (Dmin)

14.2 mm

Total length (l)

13 mm

Form (Form)

Cutting width maximum (b1)

5.8 mm

Katalog_SSC

117K805

ISO_SSC

HORN117K81050N$$$$$

Smallest bore diameter (Dmin)

16.2 mm

Key range minimum (SW)

14 mm

Toolholder (Klemmhalter)

SH117.1425.30.1.08

eclass-shortcut

21-18-20-11

Maximum depth of groove (tmax)

1.9 mm

Top radius (r)

0.2 mm
