S117.SW30.16.B2 AN45

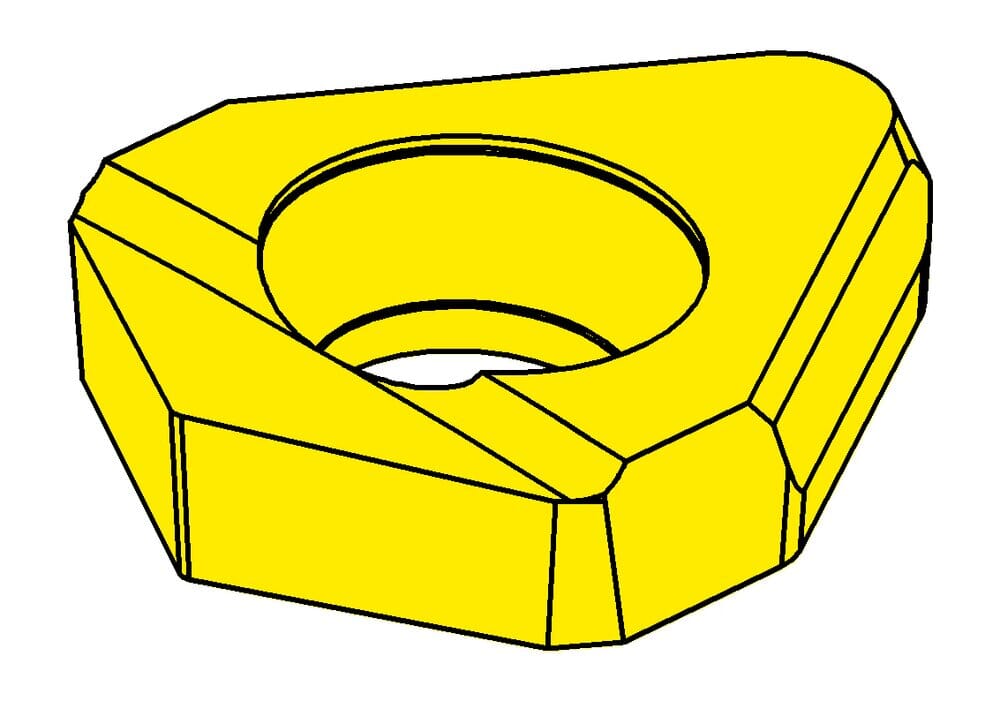

117 style broach insert - B2 geometry
Part number S117SW3016B2AN45
HORN 117 style broach insert - B2 geometry S117.SW30.16.B2 AN45 for Broaching
Please note:Technical instructions
Key range maximum (SW)
36 mm
Cutting width minimum (b1)
11.32 mm
Smallest bore diameter (Dmin)
30.3 mm
Total length (l)
20.7 mm
Form (Form)
N
Cutting width maximum (b1)
13.97 mm
Katalog_SSC
117N605
ISOSSC
HORN117N61050N$$$$$
Smallest bore diameter (Dmin)
36.3 mm
Key range minimum (SW)
30 mm
Toolholder (Klemmhalter)
SH117.3032.30.1.16
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
4.2 mm
Top radius (r)
0.3 mm
| Downloads | |
|---|---|
| S117_SW30_16_B2_AN45-DXF.DXF | Download |
| S117_SW30_16_B2_AN45-STP.STP | Download |
| S117_SW30_16_B2_AN45-ISO.XML | Download |
| S117_SW30_16_B2_AN45-DIN.XML | Download |
| Download all files | |
