S209.0250.52 AS45
Insert
Part number S209025052AS45
HORN Insert S209.0250.52 AS45 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-03
ISO_SSC
HORN209250058N$$$$$
DIN_SSC
HORN-209250058N
Katalog_SSC
20925
Plating seat size (Größe)
25

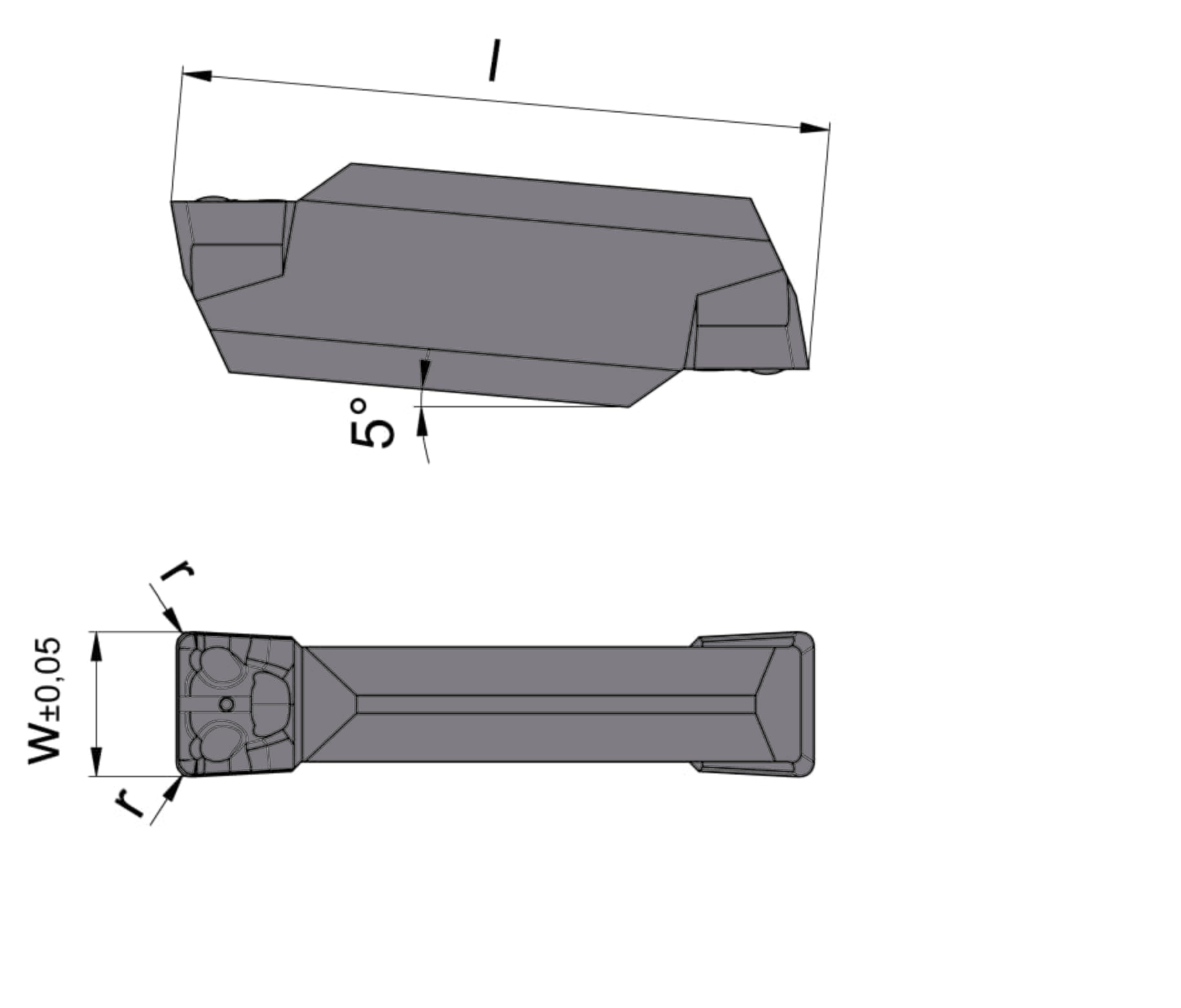

Width of groove (w)
2.5
mm
Corner radius (r)
0.2
mm
Total length (l)
10
mm
| Downloads | |
|---|---|
| S209025052_20230116_100850943.STP | Download |
| S209025052.DXF | Download |
| Download all files | |
