S224.0025.KF5 AS66
Insert
Part number S2240025KF5AS66

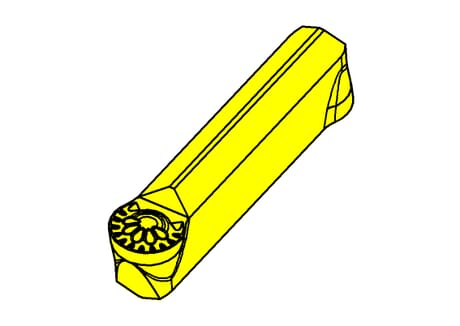

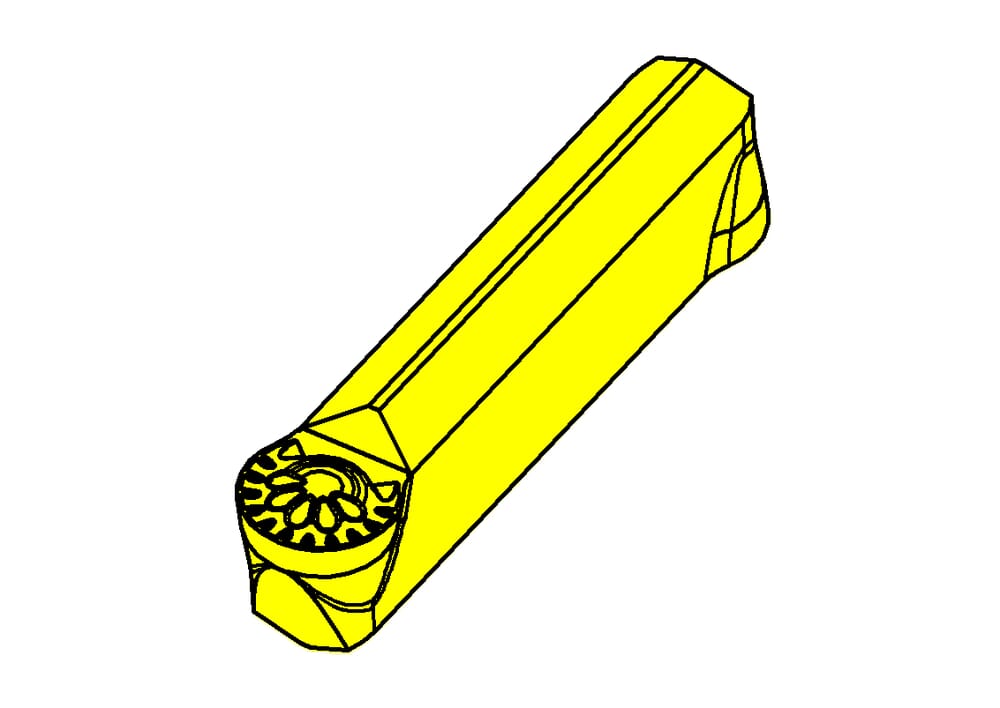

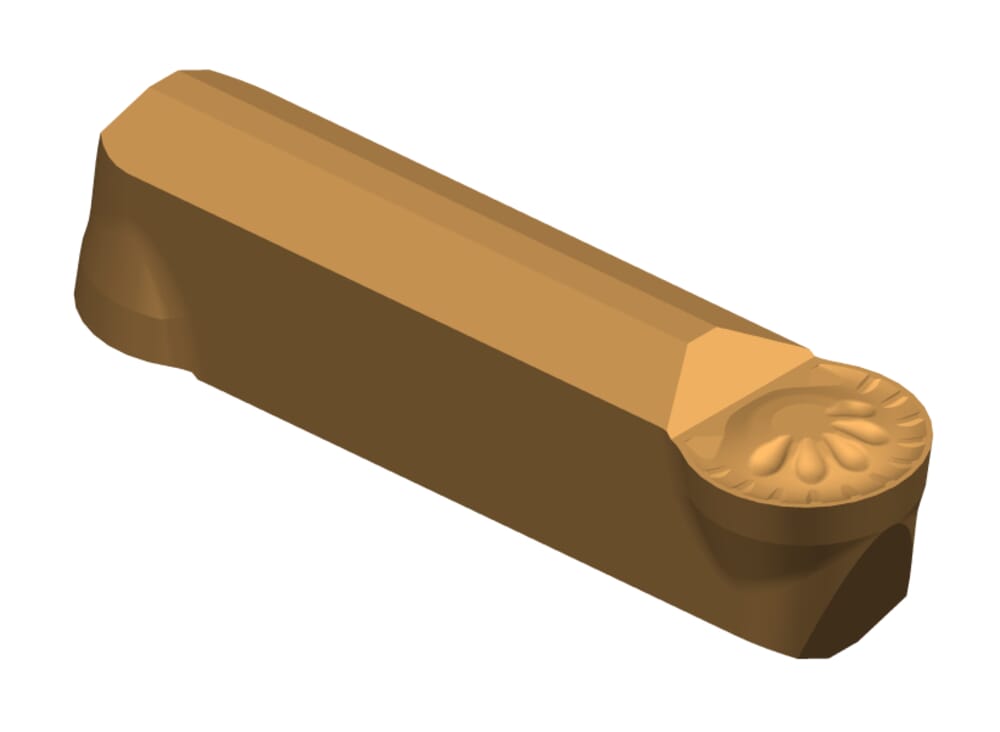

HORN Insert S224.0025.KF5 AS66 for Turning
Please note:Technical instructions

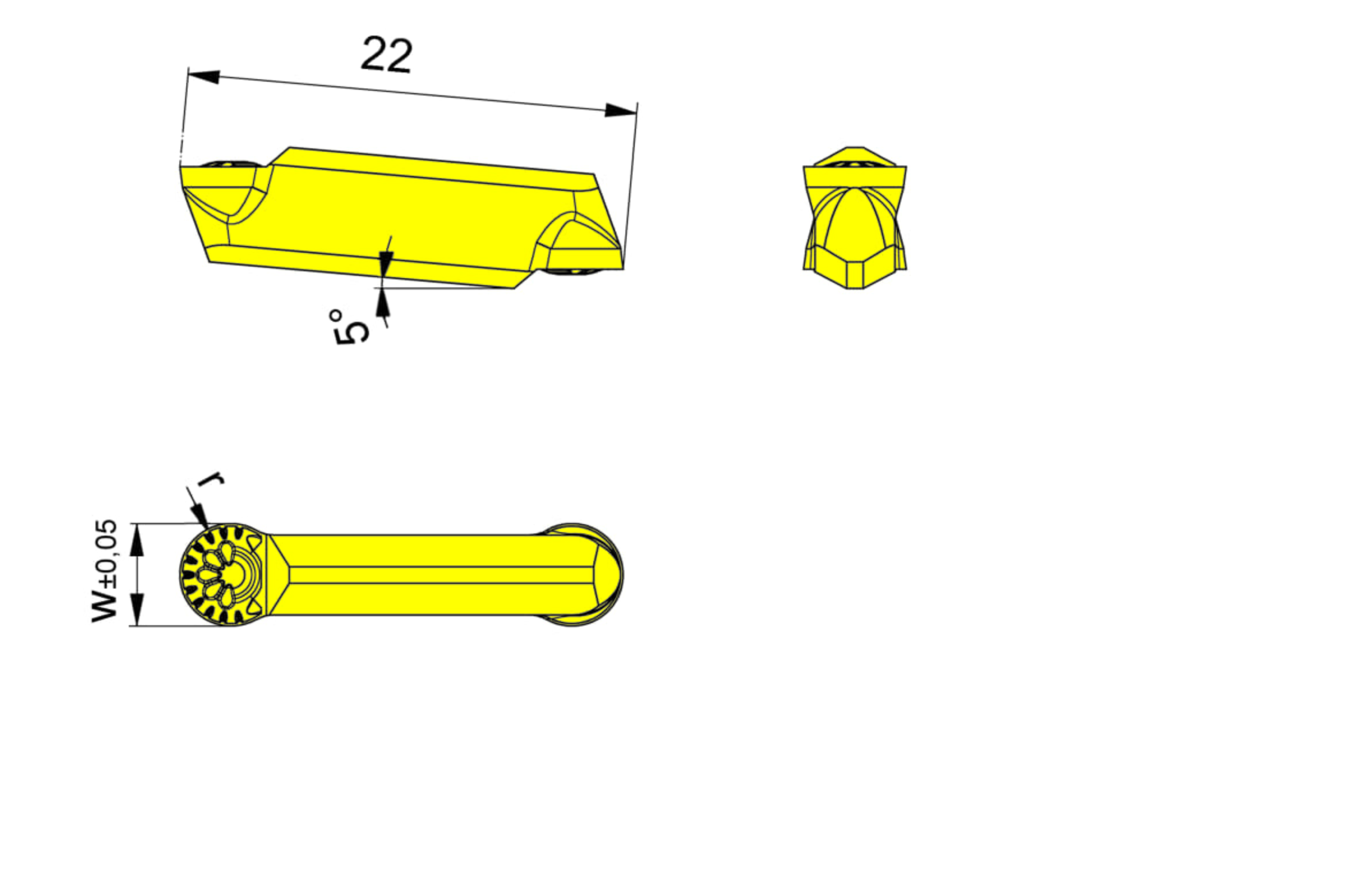

Full radius (r)
2.5
mm
eclass-shortcut
21-18-20-03
ISO_SSC
HORN224050058N$$$$$
DIN_SSC
HORN-224050058N
Katalog_SSC
224058
Plating seat size (Größe)
5
Width of groove (w)
5
mm
| Downloads | |
|---|---|
| S2240025KF5_20230116_082643039.STP | Download |
| S2240025KF5_20210629_063458657.DXF | Download |
| Download all files | |
