S229.0015.KF3 AS66
Insert
Part number S2290015KF3AS66

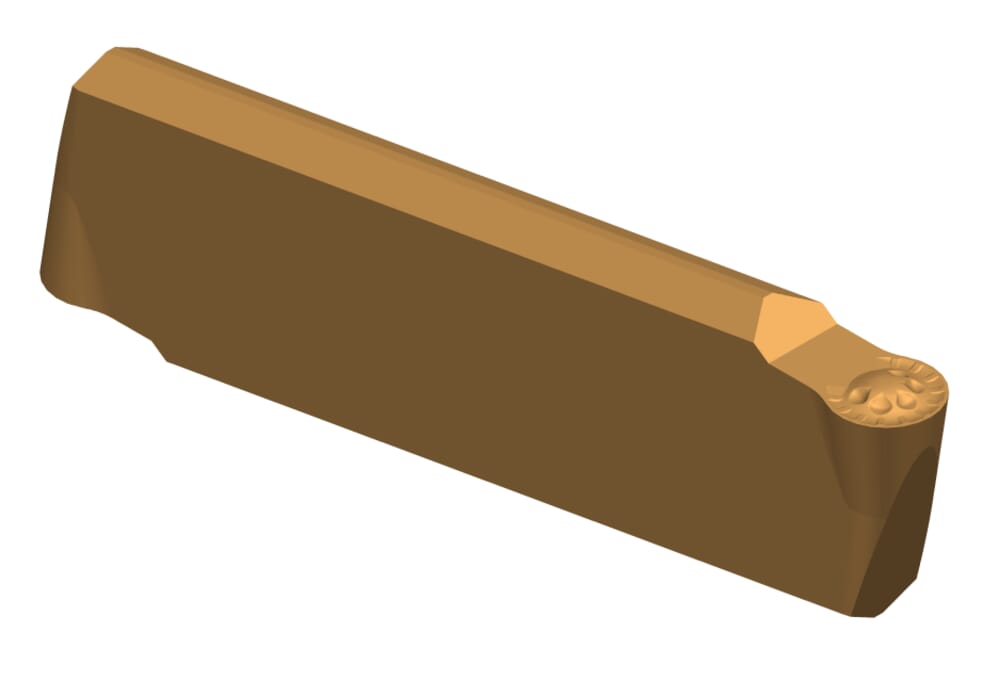

HORN Insert S229.0015.KF3 AS66 for Turning
Please note:Technical instructions
Full radius (r)
1.5
mm
eclass-shortcut
21-18-20-03
ISO_SSC
HORN229020108N$$$$$;HORN229030108N$$$$$
DIN_SSC
HORN-229020108N;HORN-229030108N
Katalog_SSC
229020;229030
Plating seat size (Größe)
2;3
Width of groove (w)
3
mm
| Downloads | |
|---|---|
| S2290015KF3_20230116_120942267.STP | Download |
| S2290015KF3_20210629_064801611.DXF | Download |
| Download all files | |
