S229.0020.K4 AS62
Insert
Part number S2290020K4AS62

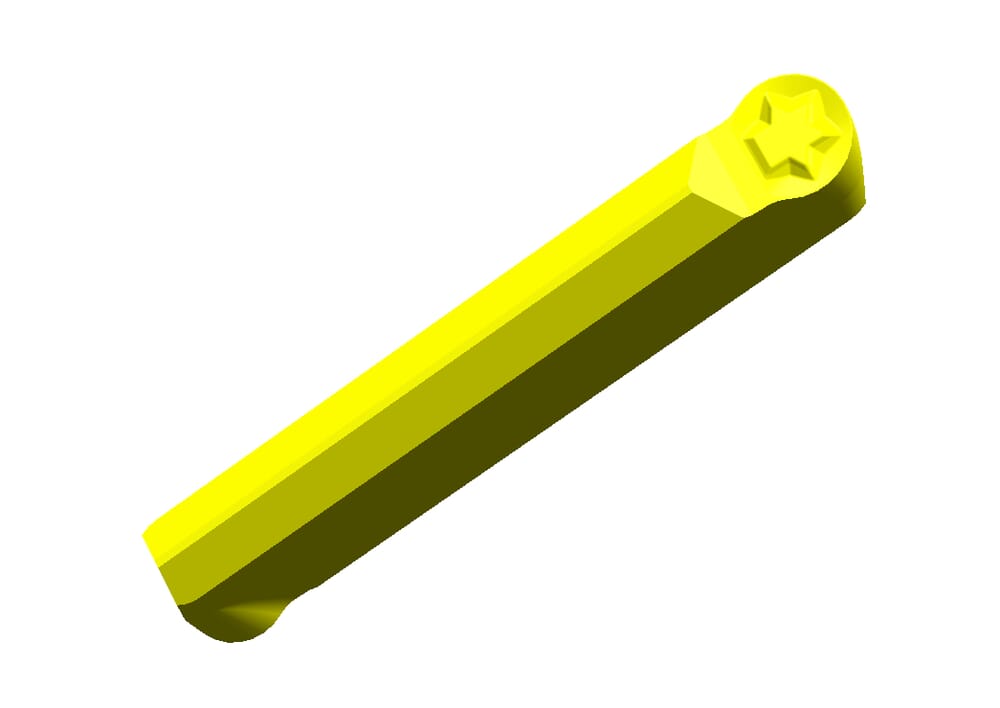

HORN Insert S229.0020.K4 AS62 for Turning
Please note:Technical instructions
Full radius (r)
2
mm
eclass-shortcut
21-18-20-03
ISO_SSC
HORN229030108N$$$$$;HORN229040108N$$$$$
DIN_SSC
HORN-229030108N;HORN-229040108N
Katalog_SSC
229030;229040
Plating seat size (Größe)
3;4
Width of groove (w)
4
mm
| Downloads | |
|---|---|
| S2290020K4_20210630_131251107.STP | Download |
| S2290020K4_20210625_175009361.DXF | Download |
| Download all files | |
