Part number S2290020KF4AS66

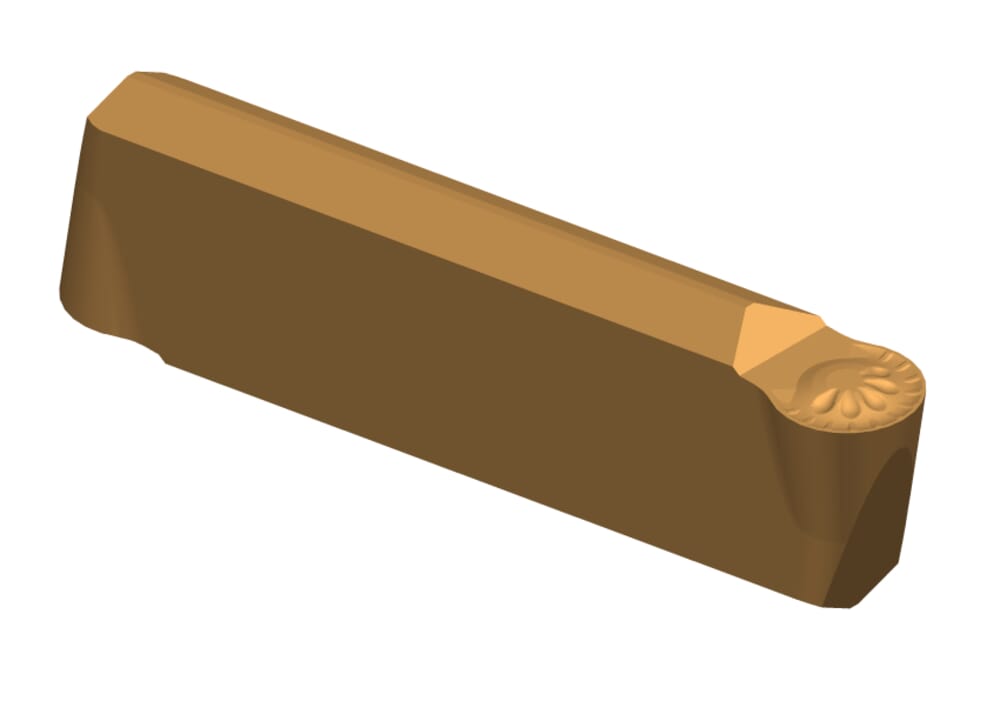

HORN Insert S229.0020.KF4 AS66 for Turning

Please note:Technical instructions

Full radius (r)

2 mm

eclass-shortcut

21-18-20-03

ISO_SSC

HORN229030108N$$$$$;HORN229040108N$$$$$

DIN_SSC

HORN-229030108N;HORN-229040108N

Katalog_SSC

229030;229040

Plating seat size (Größe)

3;4

Width of groove (w)

4 mm

Downloads
S2290020KF4_20230116_083900514.STP	Download
S2290020KF4_20210629_064837737.DXF	Download
