S229.0040.K8 AS62
Insert
Part number S2290040K8AS62

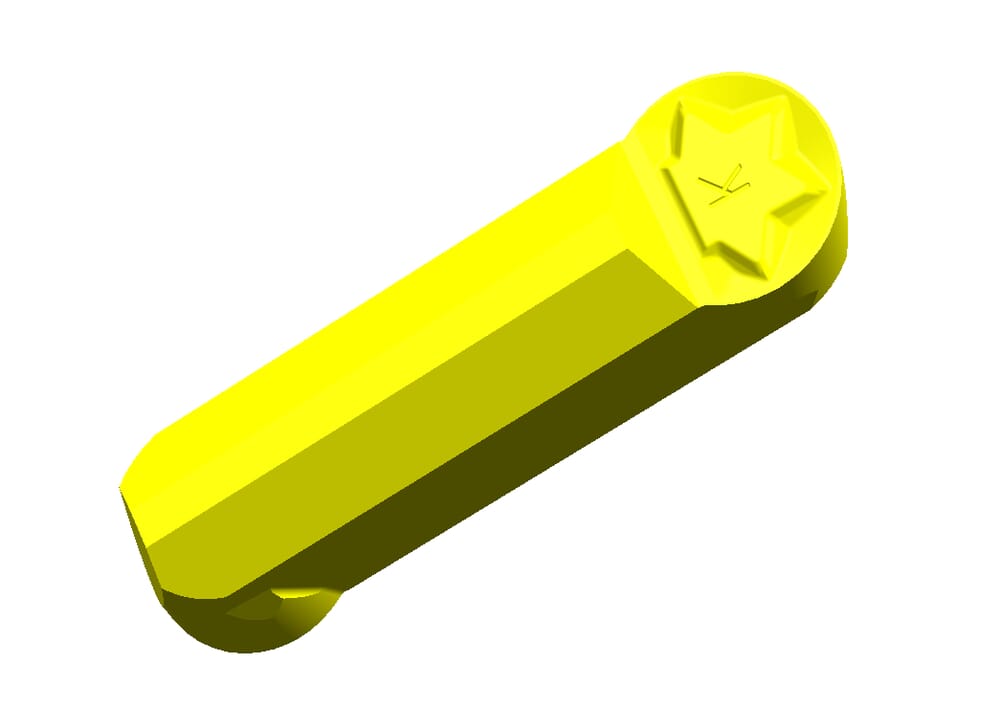

HORN Insert S229.0040.K8 AS62 for Turning
Please note:Technical instructions
Full radius (r)
4
mm
eclass-shortcut
21-18-20-03
ISO_SSC
HORN229070108N$$$$$;HORN229080108N$$$$$
DIN_SSC
HORN-229070108N;HORN-229080108N
Katalog_SSC
229070;229080
Plating seat size (Größe)
7;8
Width of groove (w)
8
mm
| Downloads | |
|---|---|
| S2290040K8_20230116_084953097.STP | Download |
| S2290040K8_20210625_175109894.DXF | Download |
| Download all files | |
