S229.0800.L6 AS66
Insert
Part number S2290800L6AS66

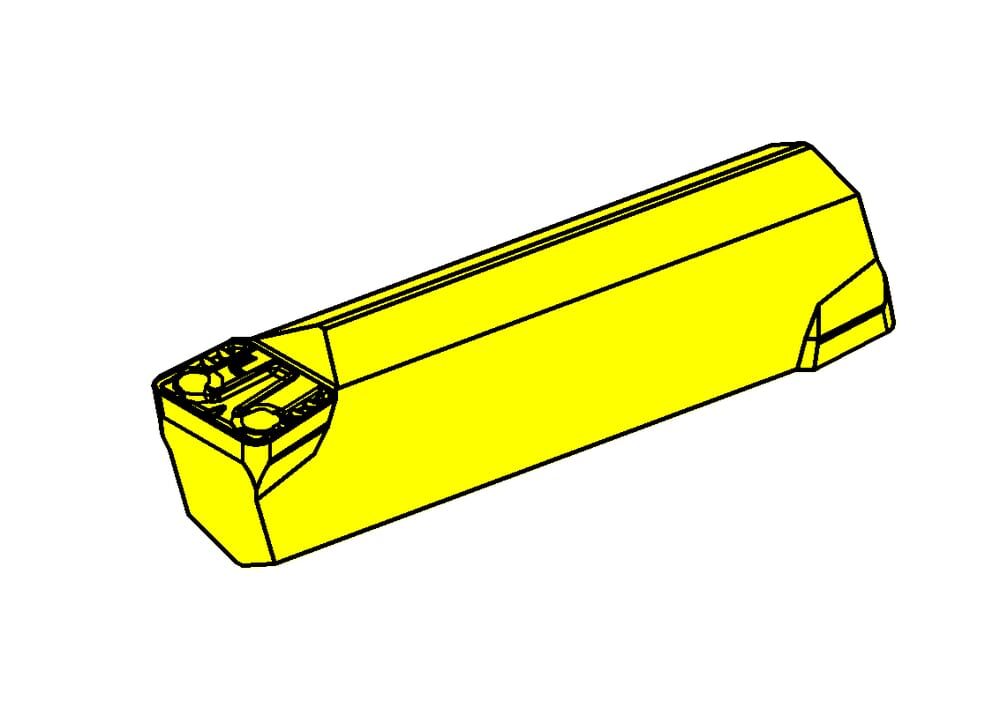

HORN Insert S229.0800.L6 AS66 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-03
ISO_SSC
HORN229071108N$$$$$;HORN229071108N$$$$$;HORN229081108N$$$$$;HORN229081108N$$$$$
DIN_SSC
HORN-229071108N;HORN-229071108N;HORN-229081108N;HORN-229081108N
Katalog_SSC
229071
Plating seat size (Größe)
7;8

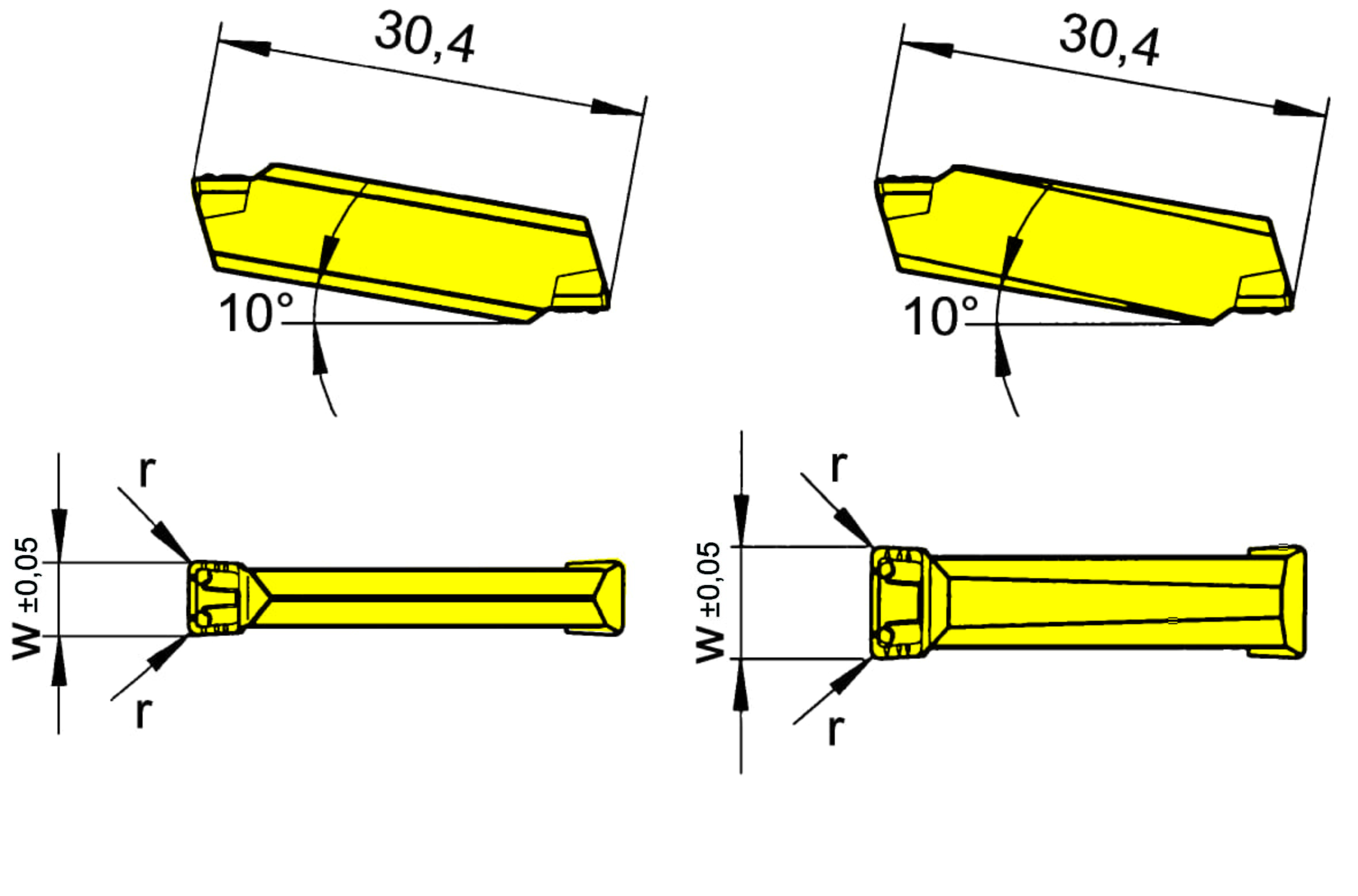

Width of groove (w)
8
mm
Corner radius (r)
0.6
mm
| Downloads | |
|---|---|
| S229_0800_L6_20171121_180702239.STP | Download |
| S2290800L6.DXF | Download |
| Download all files | |
