S312.0300.D2 AL96
Inserts
Part number S3120300D2AL96

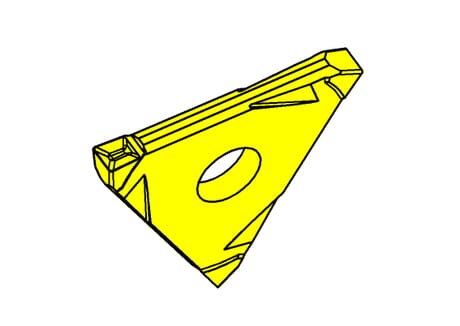

HORN Inserts S312.0300.D2 AL96 for Turning
Please note:Technical instructions
Cancellation (a1)
0.25
mm
eclass-shortcut
21-18-20-01
ISO_SSC
HORN-31203$000N$$$$$
DIN_SSC
HORN-31203000N
Katalog_SSC
31203N

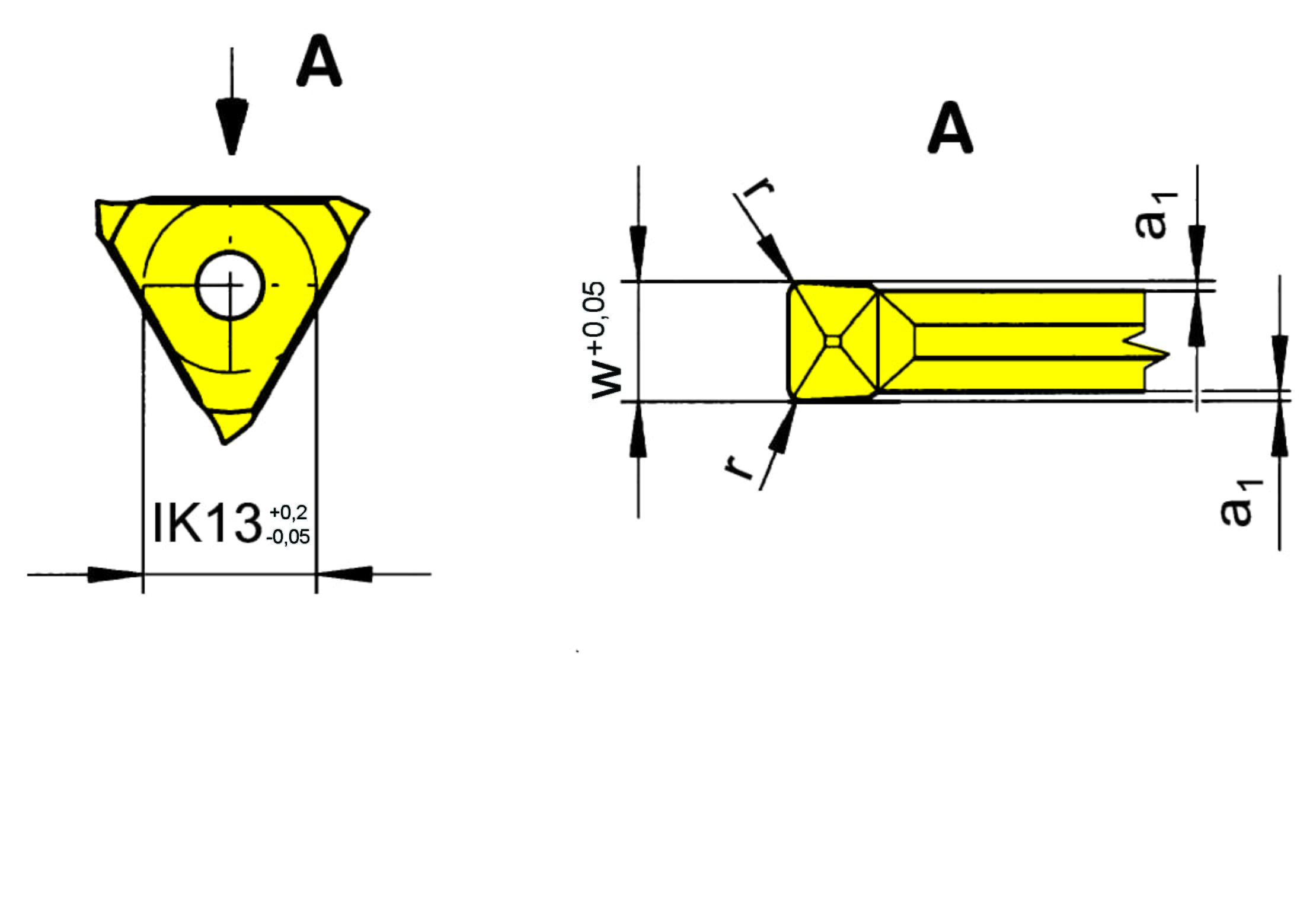

Plating seat size (Größe)
3
Width of groove (w)
3
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| S312_0300_D2_20171121_233617353.STP | Download |
| S3120300D2_20210625_182709239.DXF | Download |
| Download all files | |
