SH117.1625.30.1.10.IK
Broaching tool holder coolant through
Part number SH117162530110IK

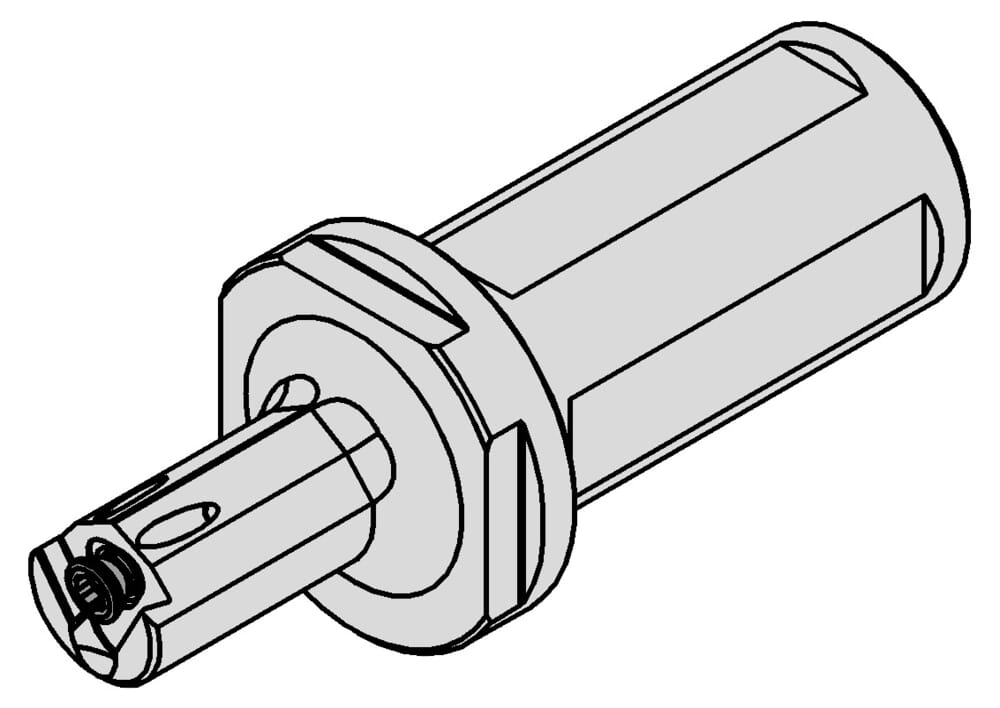

HORN Broaching tool holder coolant through SH117.1625.30.1.10.IK for Broaching
Please note:Technical instructions
DIN_CCTWS
HORN-117L01050N
eclass-shortcut
21-18-10-90
Form (Form)
L
ISO_CCTMS
ZYL24G2500$$$$
DIN_CCTMS
ZYL02502415
Katalog_CCTWS
117L005
Outcropping, neck, working length (l2)
25 mm
ISO_CCTWS
HORN117L01050N$$$$$
Peak height (a)
15 mm
Clamping, shank diameter (d)
25 mm
Minimum drilling diameter (Dmin)
16.2 mm
Length from bore (l)
38 mm
Height clamping surface(s) (h)
23 mm
Total length (including cutting insert) (l1)
88 mm
Adjustment dimension center to cutting edge (f1)
7.75 mm
