VDR.044.085.A063
Toolholder
Part number VDR044085A063

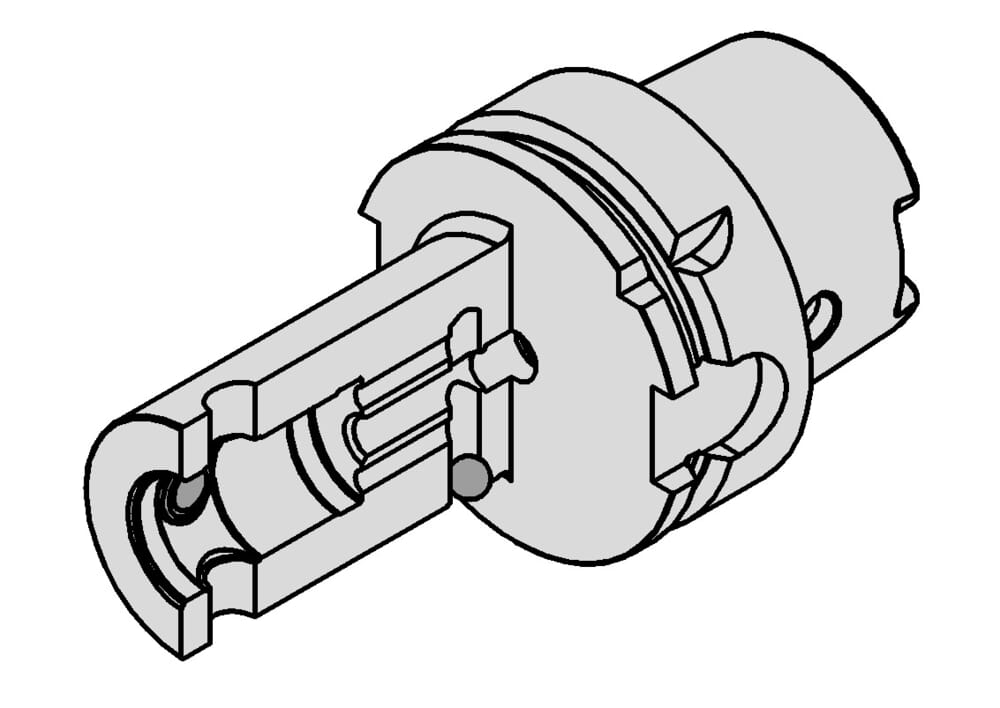

HORN Toolholder VDR.044.085.A063 for Reaming
Please note:Technical instructions
Neck length (l)
59 mm
Size (Größe)
44
Maximum cutting circle diameter (Dsmax)
43.6 mm
System (System)
HSK63
Minimum cutting circle diameter (Dsmin)
35.601 mm
Neck diameter (d)
32 mm
Working length (Lg)
85 mm
eclass-shortcut
21-18-05-90
| Downloads | |
|---|---|
| VDR_044_085_A063-DXF.DXF | Download |
| VDR_044_085_A063-STP.STP | Download |
| VDR_044_085_A063-ISO.XML | Download |
| VDR_044_085_A063-DIN.XML | Download |
| Download all files | |
