R105.4502.030.0.35 ES15
Insert
Part number R1054502030035ES15

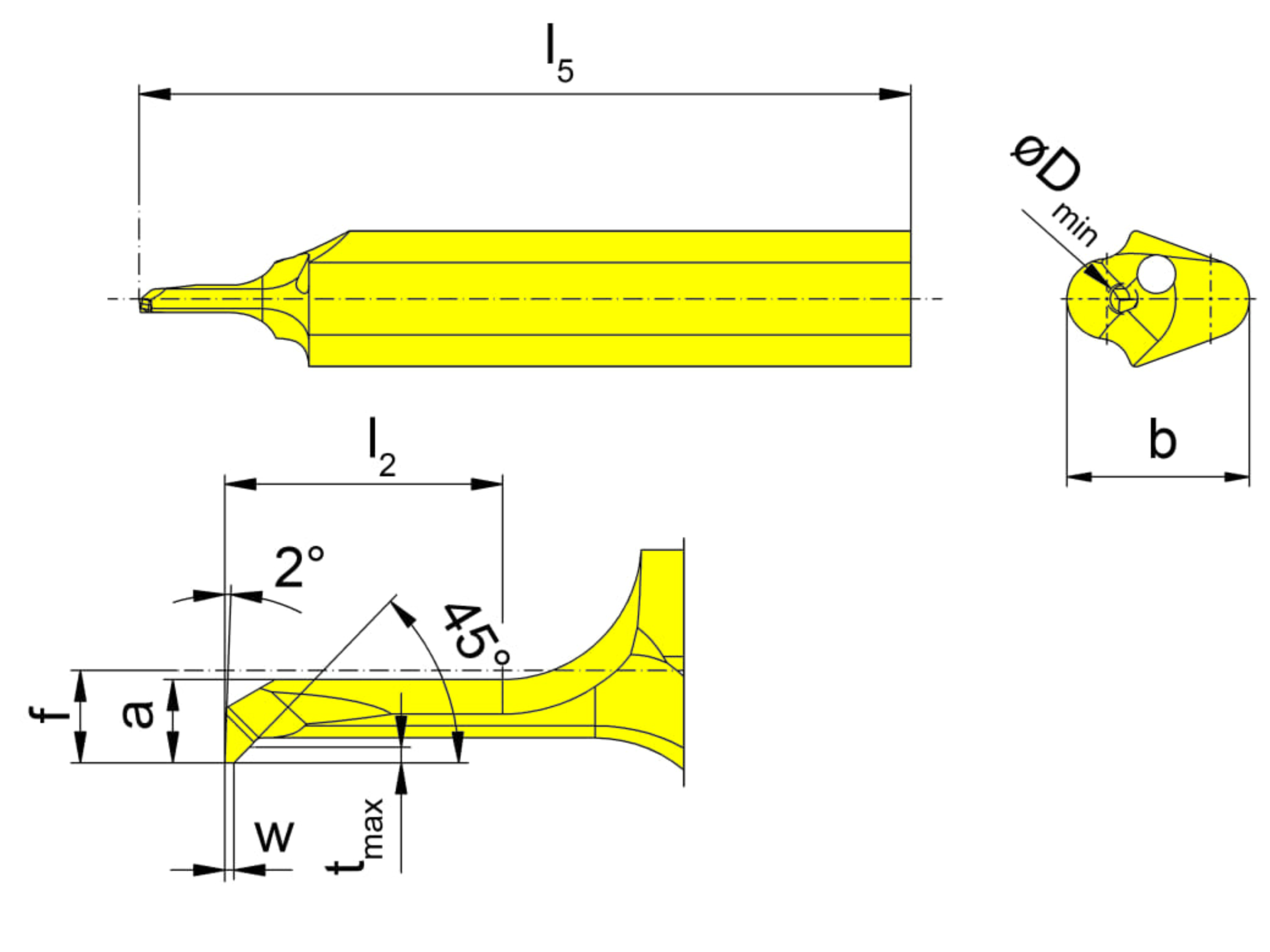

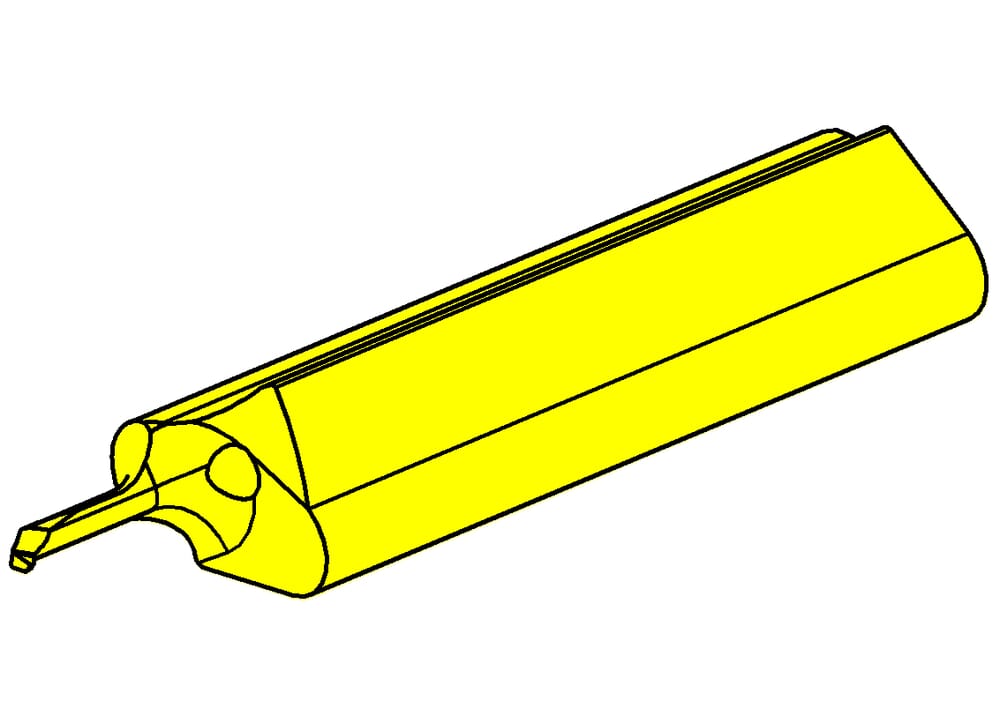

HORN Insert R105.4502.030.0.35 ES15 for Turning
Please note:Technical instructions
Width of blank (b)
6.4
mm
Smallest bore diameter (Dmin)
3.5
mm
Total length (l5)
25
mm
Setting range radial (f)
1.9
mm
Width of groove (w)
0.3
mm
Katalog_SSC
105124
DIN_SSC
HORN-10512495N
ISO_SSC
HORN105124$95N$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
0.6
mm
Head size (a)
3.2
mm
Neck length (l2)
10
mm
