R105.8V25.1.9 EG35
Insert
Part number R1058V2519EG35

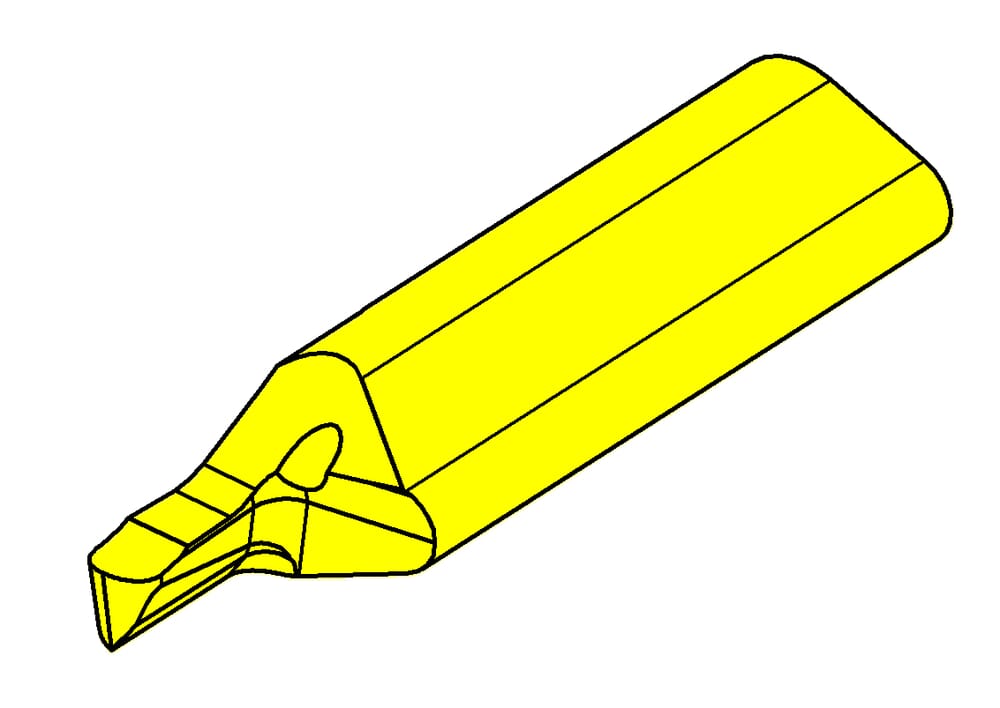

HORN Insert R105.8V25.1.9 EG35 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11

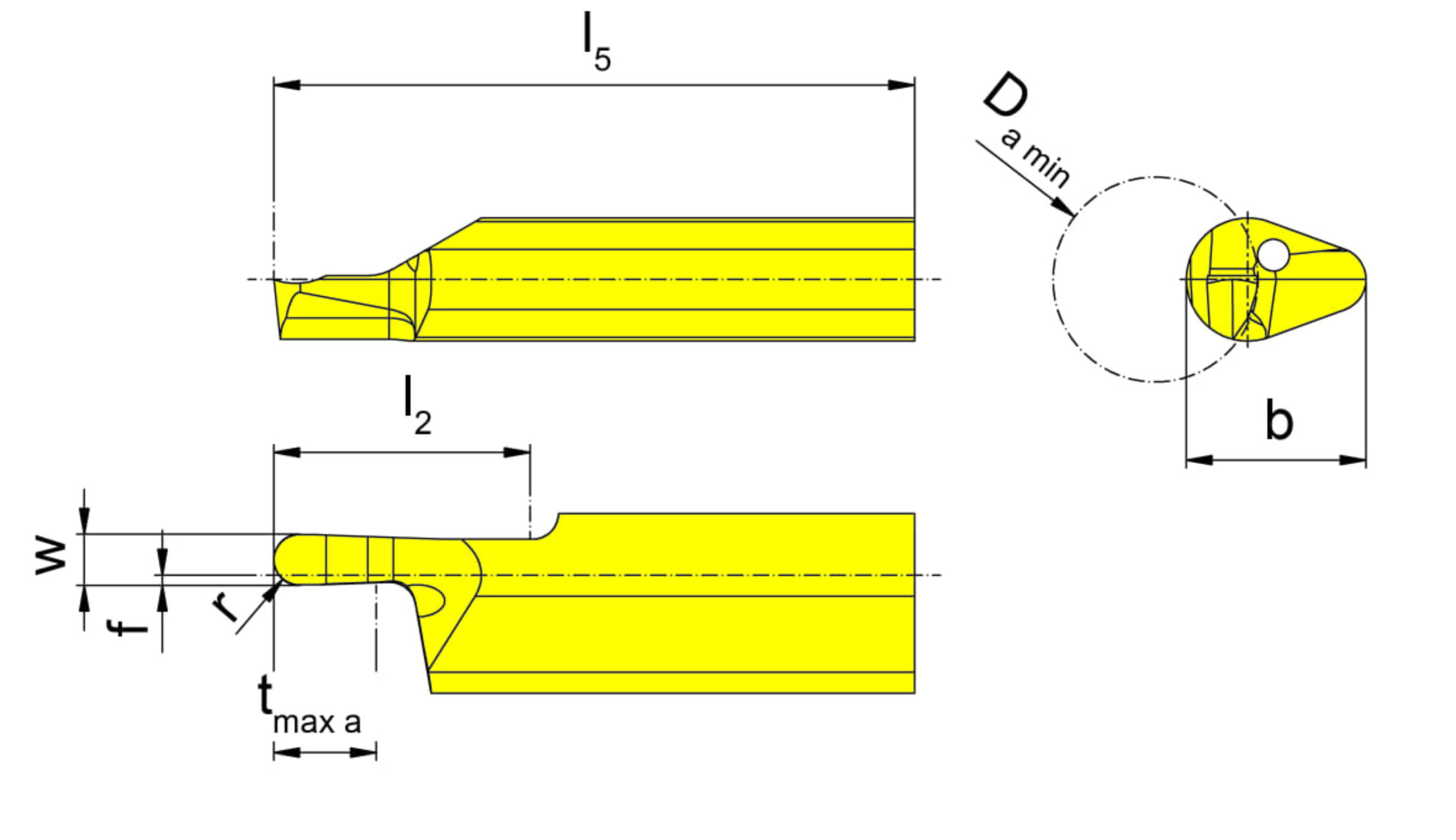

Total length (l5)
25
mm
Width of groove (w)
2.5
mm
Katalog_SSC
105125
DIN_SSC
HORN-10512595N
ISO_SSC
HORN105125$95N$$$$$
Smallest axial bore diameter (Da min)
8
mm
Width of blank (b)
7
mm
Full radius (r)
1.25
mm
Maximum depth of groove (tmax a)
5
mm
Adjustment dimension cutting center (f)
0.4
mm
Neck length (l2)
10
mm
| Downloads | |
|---|---|
| R1058V2519.STP | Download |
| R1058V2519_20240205_163318066.DXF | Download |
| Download all files | |
