R114.3387.02 EG55
Insert
Part number R114338702EG55
HORN Insert R114.3387.02 EG55 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11

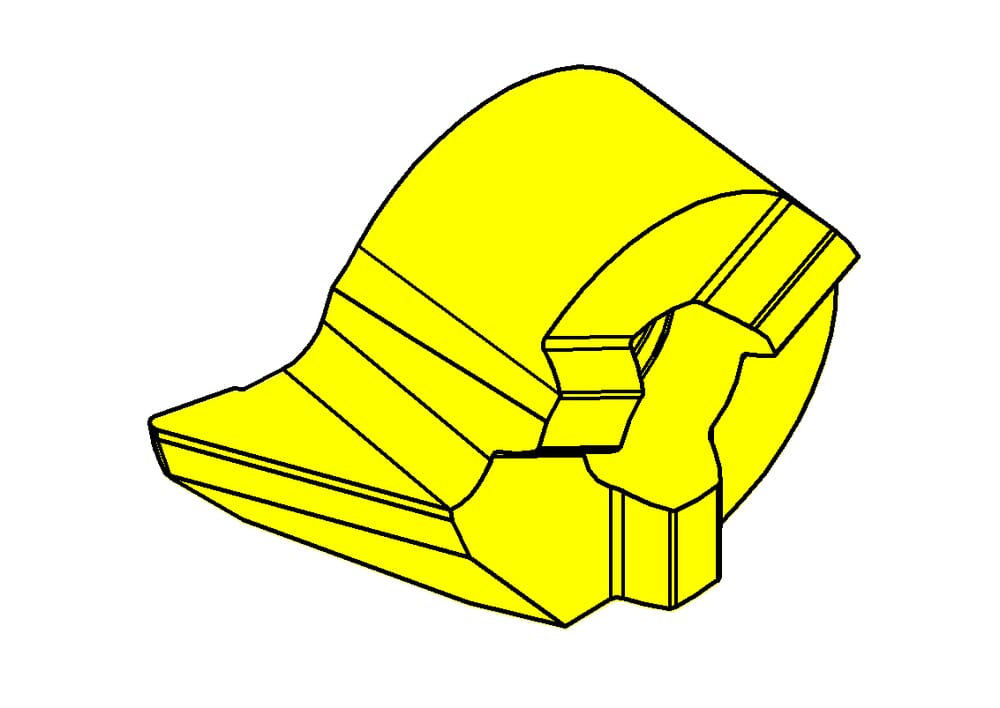

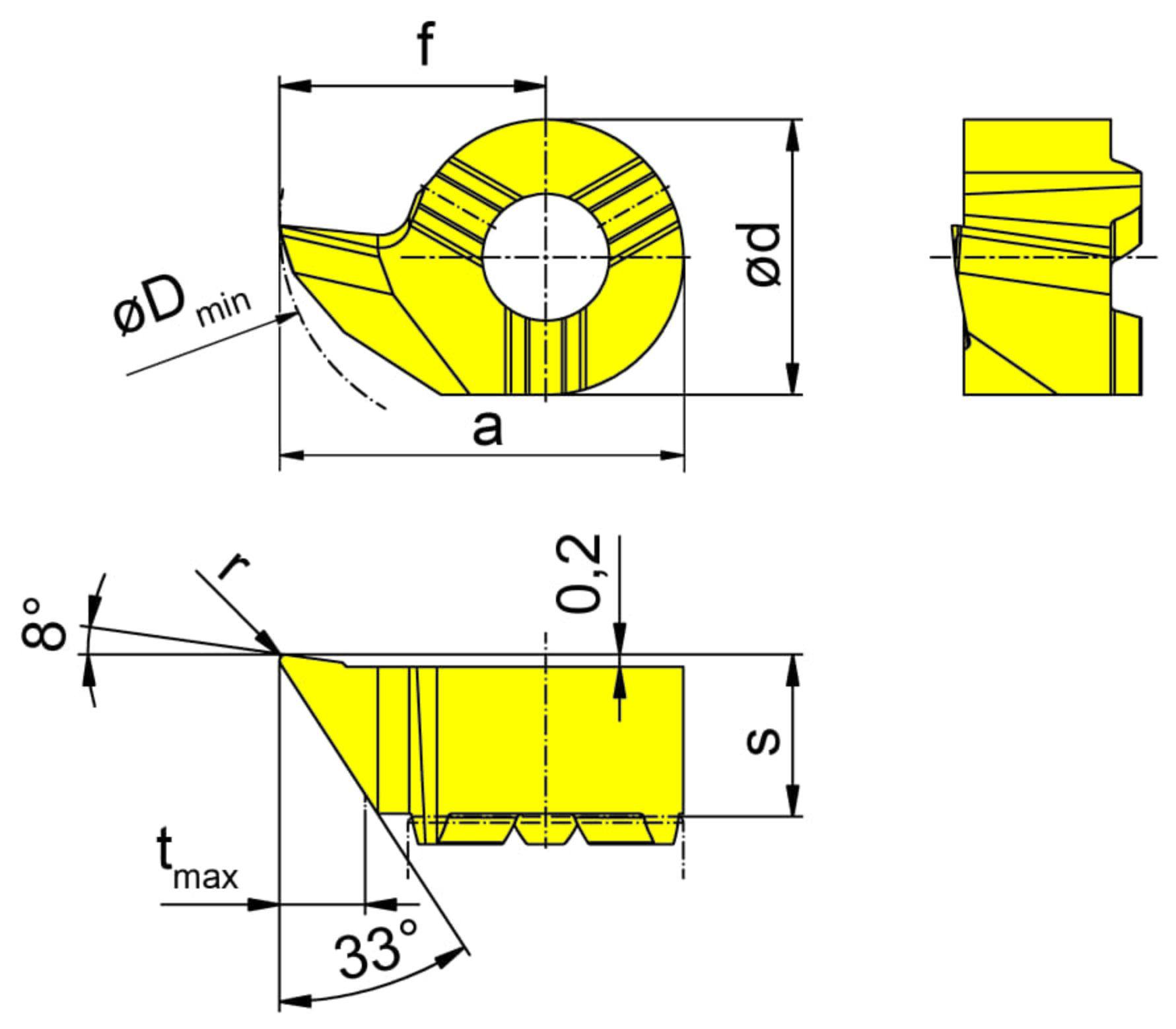

Smallest bore diameter (Dmin)
13.8
mm
Cutting insert height, Cutting insert thickness (s)
5.3
mm
Tooth diameter, head diameter (d)
9
mm
Setting range radial (f)
8.7
mm
Katalog_SSC
114090R
DIN_SSC
HORN-11409084R
ISO_SSC
HORN114090$84R$$$$$
Maximum depth of groove (tmax)
2.8
mm
Head size (a)
13.2
mm
Top radius (r)
0.2
mm
| Downloads | |
|---|---|
| R114338702_20240117_041541631.STP | Download |
| R114338702_20240205_173017724.DXF | Download |
| Download all files | |
