B105.0010.9.01
Toolholders
Part number B1050010901

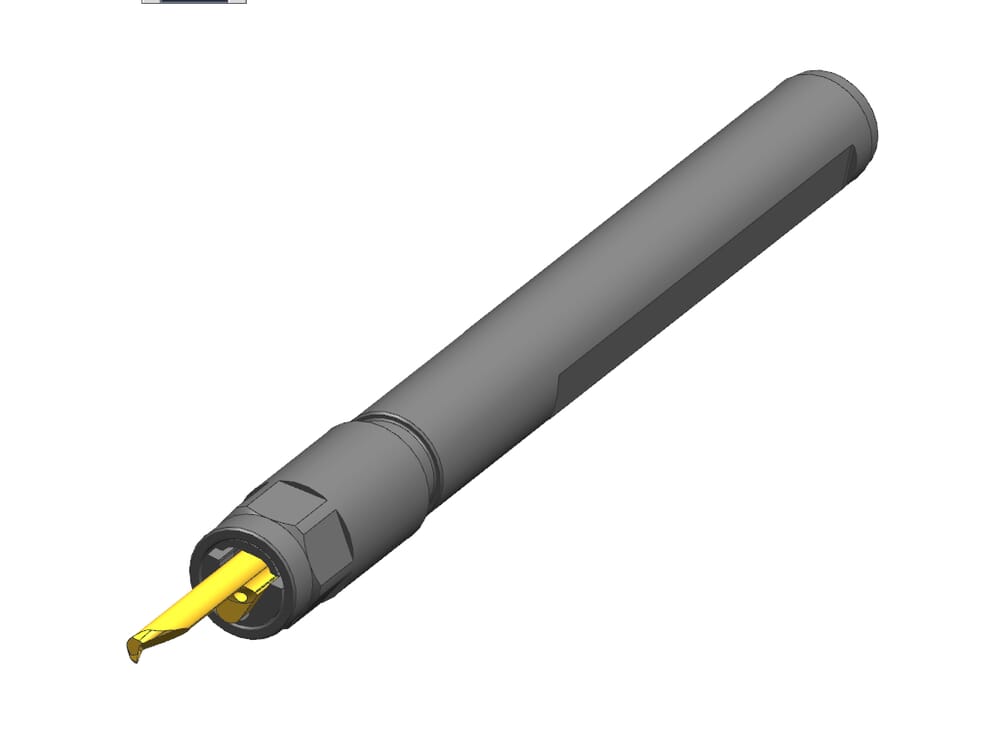

HORN Toolholders B105.0010.9.01 for Turning
Please note:Technical instructions
Width of blank (b)
5.9
mm
eclass-shortcut
21-18-10-05
Key range (SW)
10
mm
ISO_CCTMS
ZYL23G1000$$$$
DIN_CCTMS
ZYL01002315
Katalog_CCTWS
105123
DIN_CCTWS
HORN-10512395N
ISO_CCTWS
HORN105123$95N$$$$$
Shank, clamping diameter (d)
10
Length of clamping surface(s) (l4)
50
mm
Head diameter (d2)
11
Height clamping surface(s) (h)
9
mm
Total length (without cutting insert) (l1)
100
mm
Adjustment dimension (f)
1.6
mm
| Downloads | |
|---|---|
| B1050010901_20210627_121437921.DXF | Download |
| B105_0010_9_01_20171121_175301544.STP | Download |
| Download all files | |
