B105.0022.2.2.01

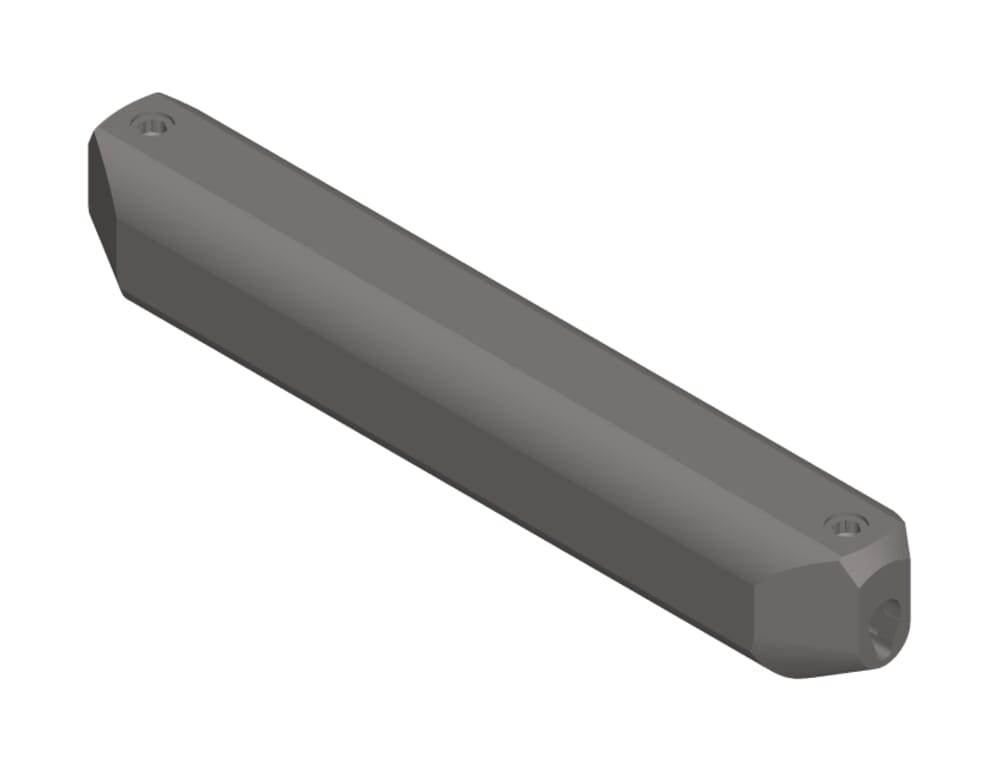

Toolholder
Part number B10500222201
HORN Toolholder B105.0022.2.2.01 for Turning
Please note:Technical instructions
Shank width (b)
20
mm
Total length (without cutting insert) (l1)
120
mm
Height clamping surface(s) (h)
20
mm
Shank, clamping diameter (d)
22
mm
ISO_CCTWS
HORN105123$95N$$$$$;HORN105124$95N$$$$$;HORN105125$95N$$$$$
DIN_CCTWS
HORN-10512395N;HORN-10512495N;HORN-10512595N
Katalog_CCTWS
105123;105124;105125
DIN_CCTMS
ZYL02202405
ISO_CCTMS
ZYL24G2200$$$$
eclass-shortcut
21-18-10-05
| Downloads | |
|---|---|
| B10500222201_20210627_124739385.DXF | Download |
| B10500222201_20230112_165137695.STP | Download |
| Download all files | |
