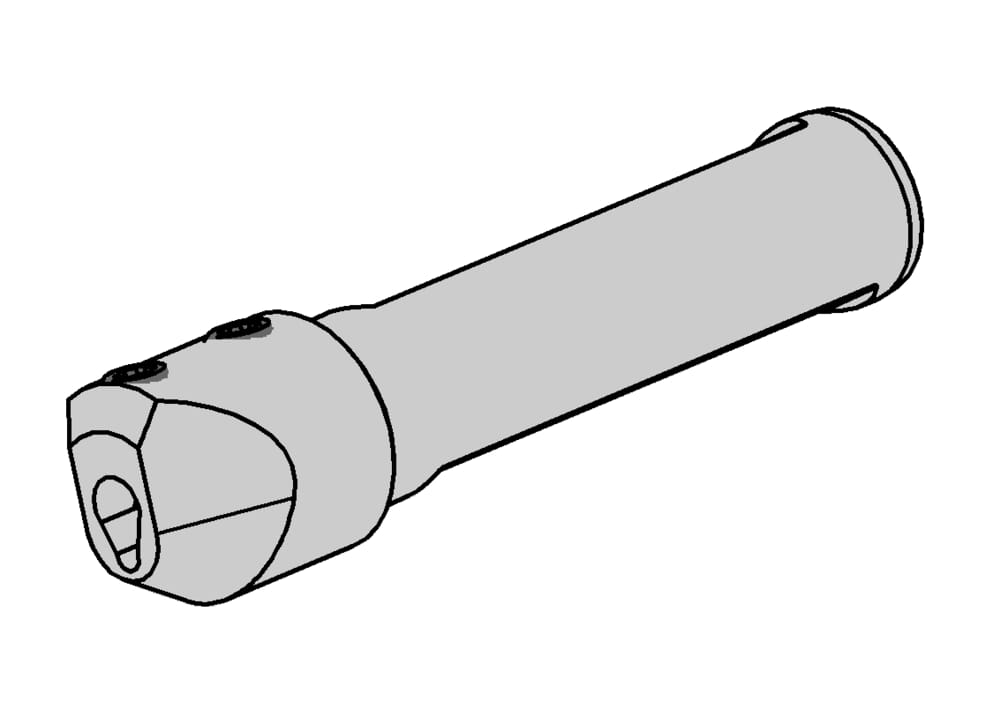

LB105.0016.12.2
Toolholder
Part number LB1050016122
HORN Toolholder LB105.0016.12.2 for Turning
Please note:Technical instructions

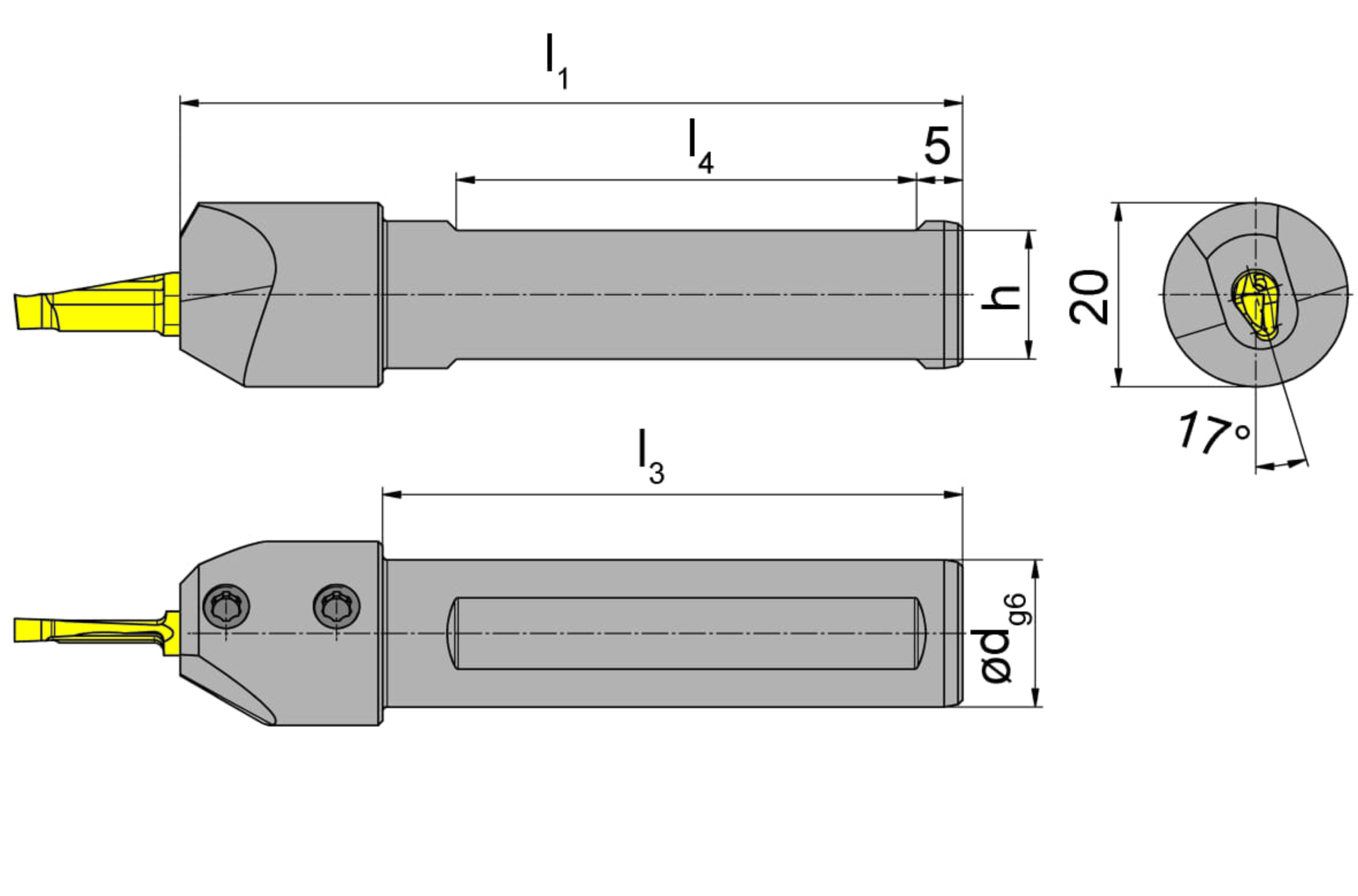

Shank, clamping diameter (d)
16
eclass-shortcut
21-18-10-05
ISO_CCTMS
ZYL23G1600$$$$
DIN_CCTMS
ZYL01602315
Katalog_CCTWS
105225
DIN_CCTWS
HORN-10522595N
ISO_CCTWS
HORN105225$95N$$$$$
Maximum clamping length (l3)
63
mm
Length of clamping surface(s) (l4)
50
mm
Height clamping surface(s) (h)
14
mm
Total length (without cutting insert) (l1)
85
mm
| Downloads | |
|---|---|
| LB1050016122.DXF | Download |
| LB105_0016_12_2_20171121_190718491.STP | Download |
| Download all files | |
