LB105.A022.26.31
Toolholder
Part number LB105A0222631

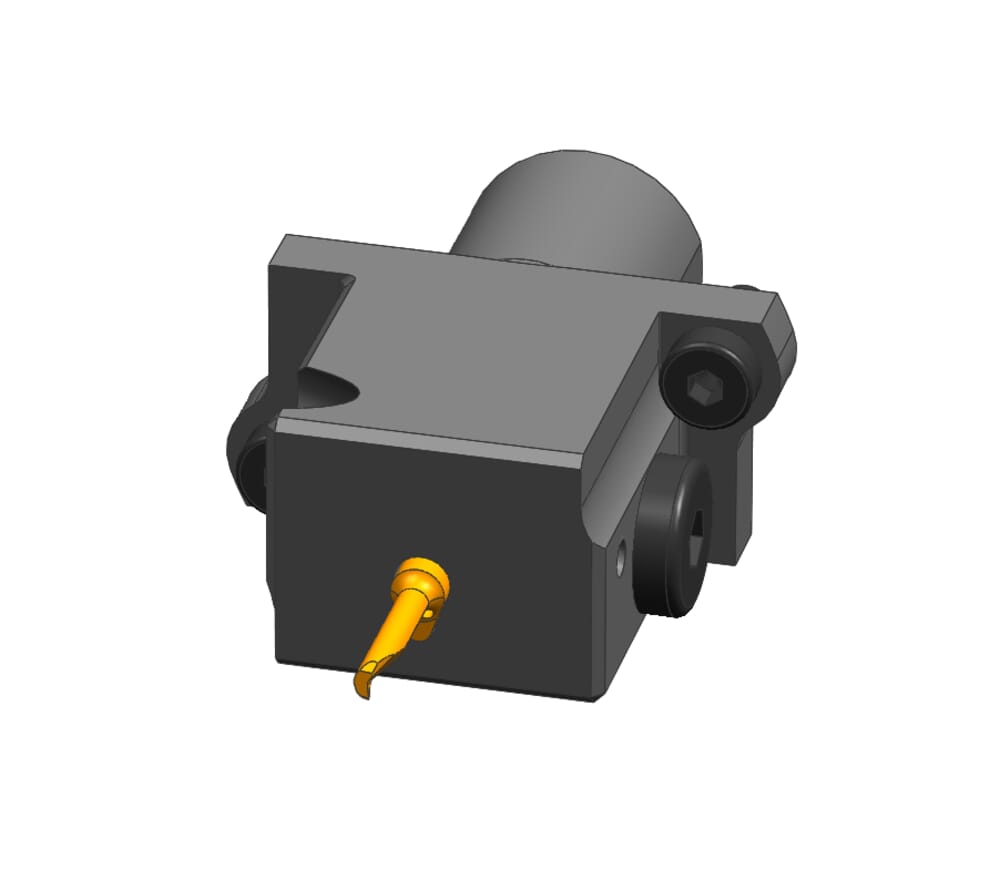

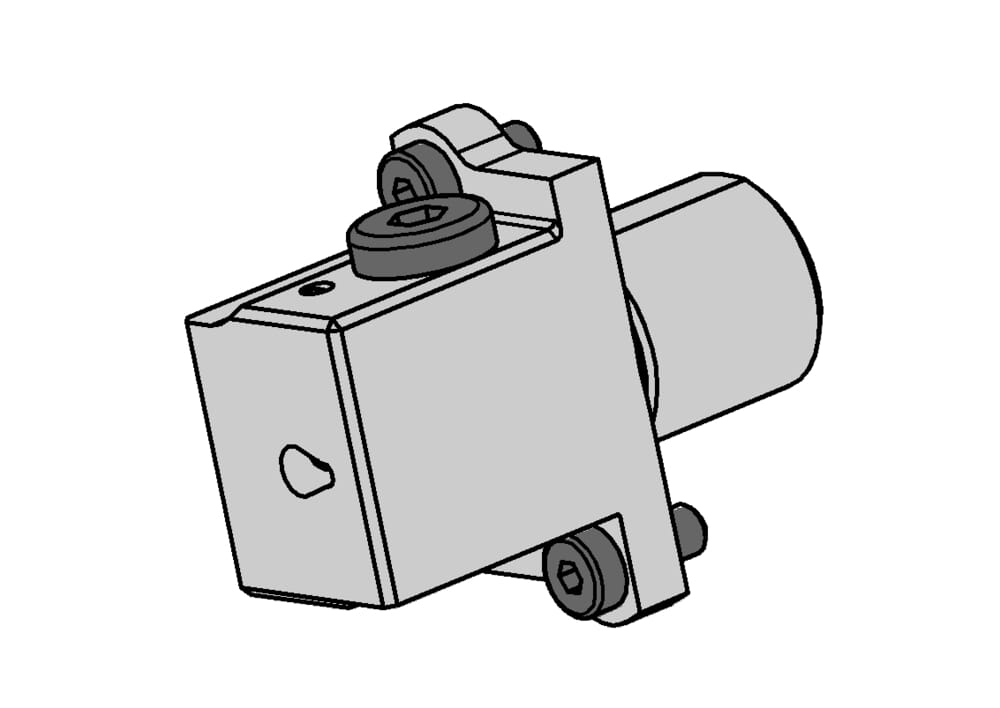

HORN Toolholder LB105.A022.26.31 for Turning
Please note:Technical instructions

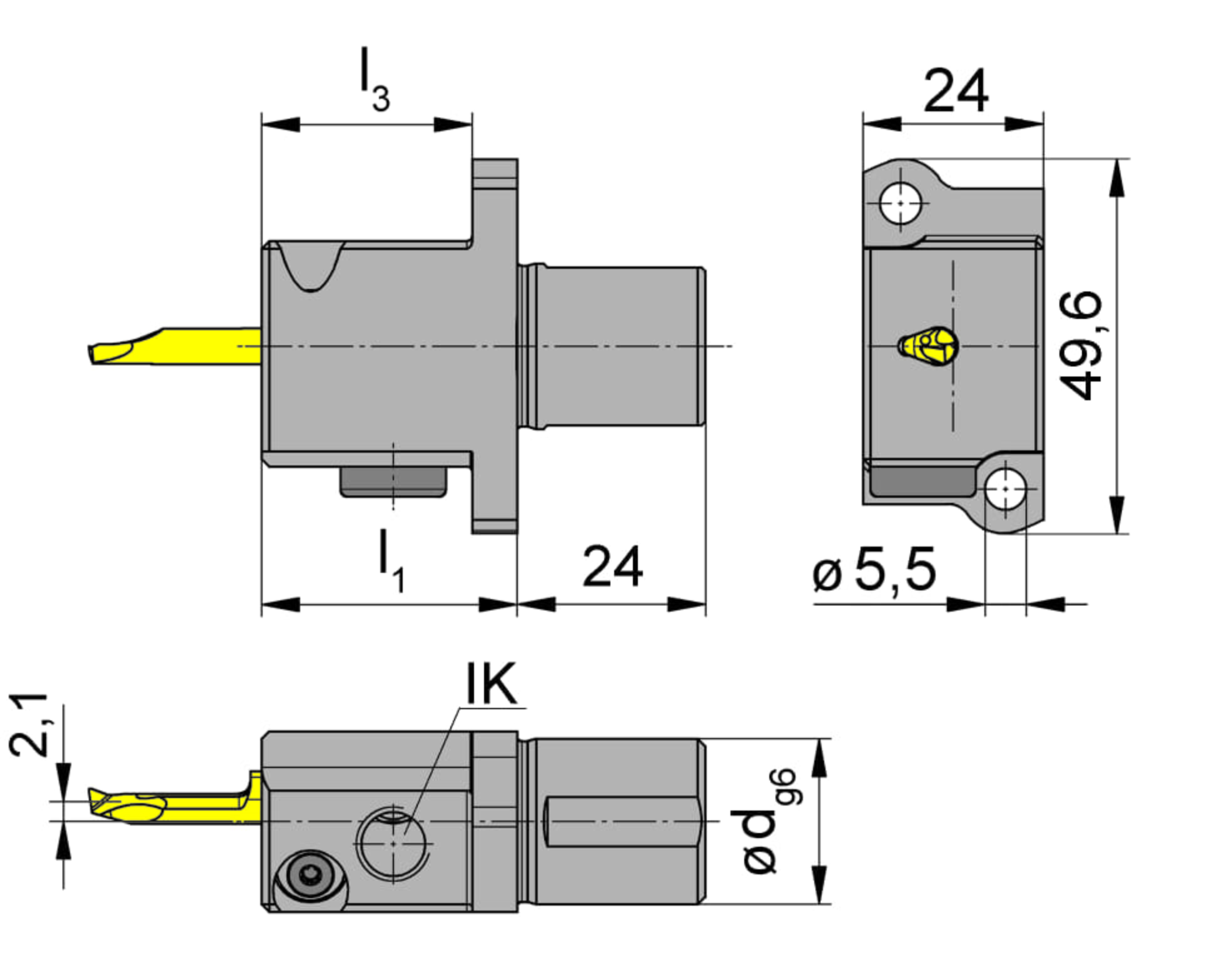

Outcropping, neck, working length (l3)
29
mm
Length from bore (l1)
35
mm
Shank, clamping diameter (d)
22
mm
ISO_CCTWS
HORN105123$95N$$$$$;HORN105124$95N$$$$$;HORN105125$95N$$$$$
DIN_CCTWS
HORN-10512395N;HORN-10512495N;HORN-10512595N
Katalog_CCTWS
105123;105124;105125
DIN_CCTMS
ZYL02202305
ISO_CCTMS
ZYL23G2200$$$$
Katalog_CCTMS
Star
eclass-shortcut
21-18-10-05
| Downloads | |
|---|---|
| LB105_A022_26_31.DXF | Download |
| LB105_A022_26_31_20171121_181207550.STP | Download |
| Download all files | |
