R105.4723.2.5 TH35
insert
Part number R105472325TH35

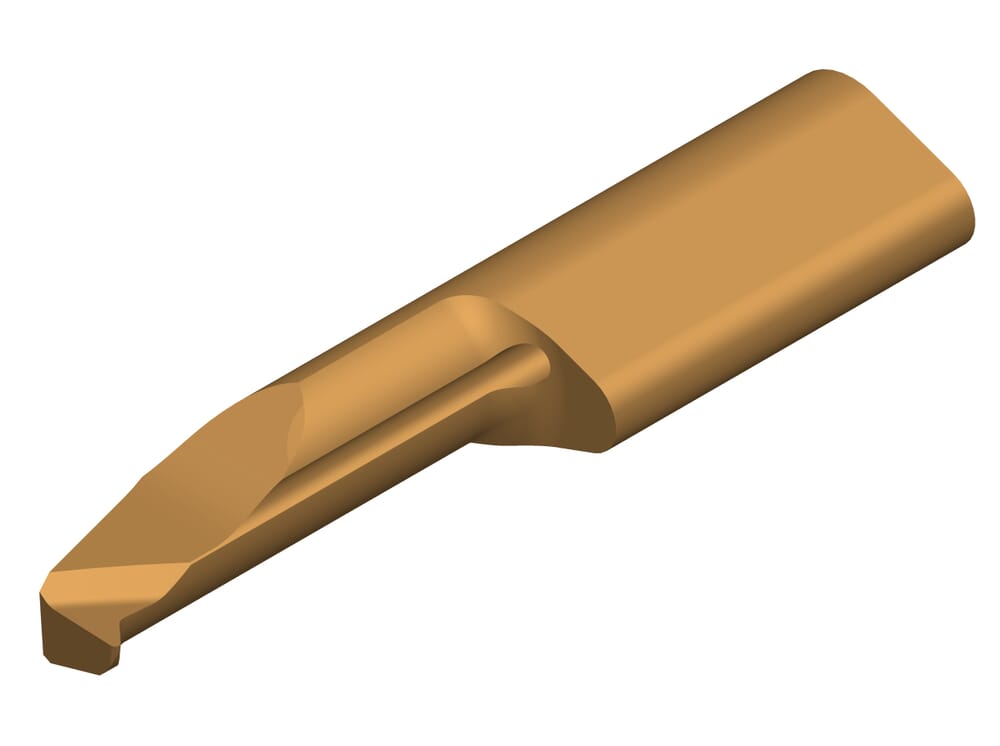

HORN insert R105.4723.2.5 TH35 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11
Smallest bore diameter (Dmin)
5
mm
Total length (l5)
30
mm
Setting range radial (f)
2.3
mm
Neck diameter (d)
3.7
mm
Katalog_SSC
105125
DIN_SSC
HORN-10512595N
ISO_SSC
HORN105125$95N$$$$$
Width of blank (b)
7
mm
Maximum depth of groove (tmax)
0.8
mm
Head size (a)
4.7
mm
Top radius (r)
0.15
mm
Neck length (l2)
15
mm
| Downloads | |
|---|---|
| R105_4723_2_5.DXF | Download |
| R105472325_20230114_002627370.STP | Download |
