RH100.1616.1.23.IK
Toolholder
Part number RH1001616123IK

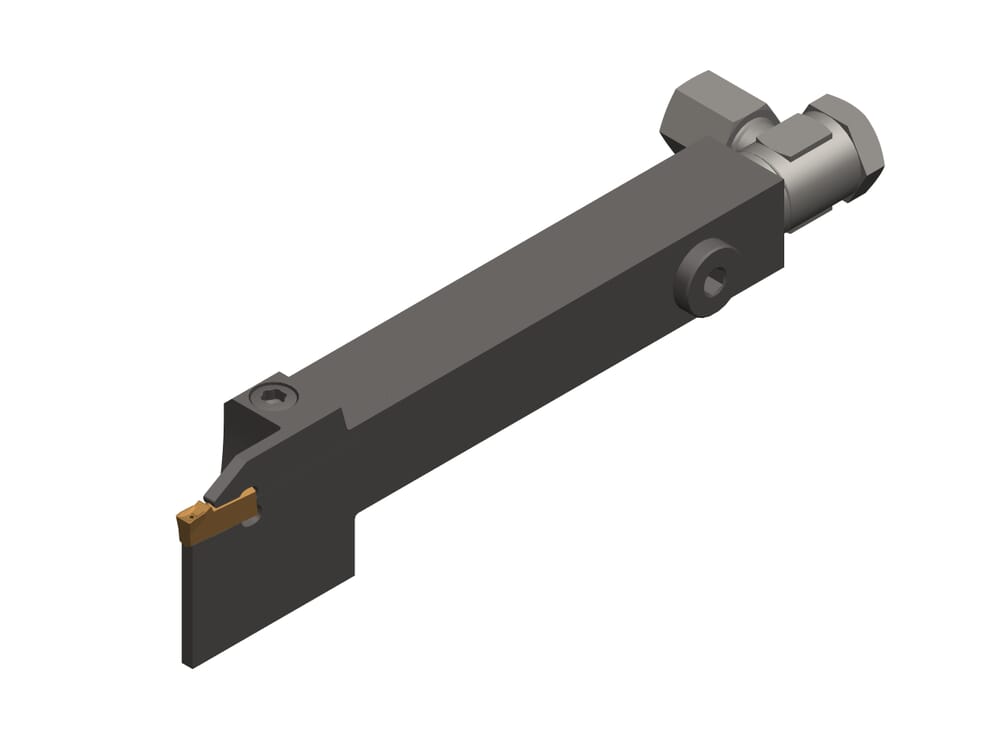

HORN Toolholder RH100.1616.1.23.IK for Turning
Please note:Technical instructions
Peak height (h1)
27
mm
eclass-shortcut
21-18-10-04
Form (Form)
A
ISO_CCTMS
VKT01A1616$$$$
DIN_CCTMS
VKT16160115
Katalog_CCTWS
100039
DIN_CCTWS
HORN-100030059N
ISO_CCTWS
HORN100030059N$$$$$
Head length top (including cutting edge) (l3)
33.5
mm
Head length (including cutting edge) (l2)
35
mm
Adjustment dimension (formula) (f)
f1+w/2
Maximum workpiece diameter (Dmax)
42
mm
Maximum insertion depth (tmax)
21.5
mm
Head height (HK)
32
mm
Shank height (h)
16
mm
Size (Größe)
3
Total length (including cutting insert) (l1)
125
mm
Adjustment dimension cutting center (f1)
14.85
mm
Shank width (b)
16
mm
| Downloads | |
|---|---|
| RH1001616123IK_20210627_033958557.DXF | Download |
| RH1001616123IK_20230116_134629393.STP | Download |
| Download all files | |
