RHC105.1616.21

Toolholders

Part number RHC105161621

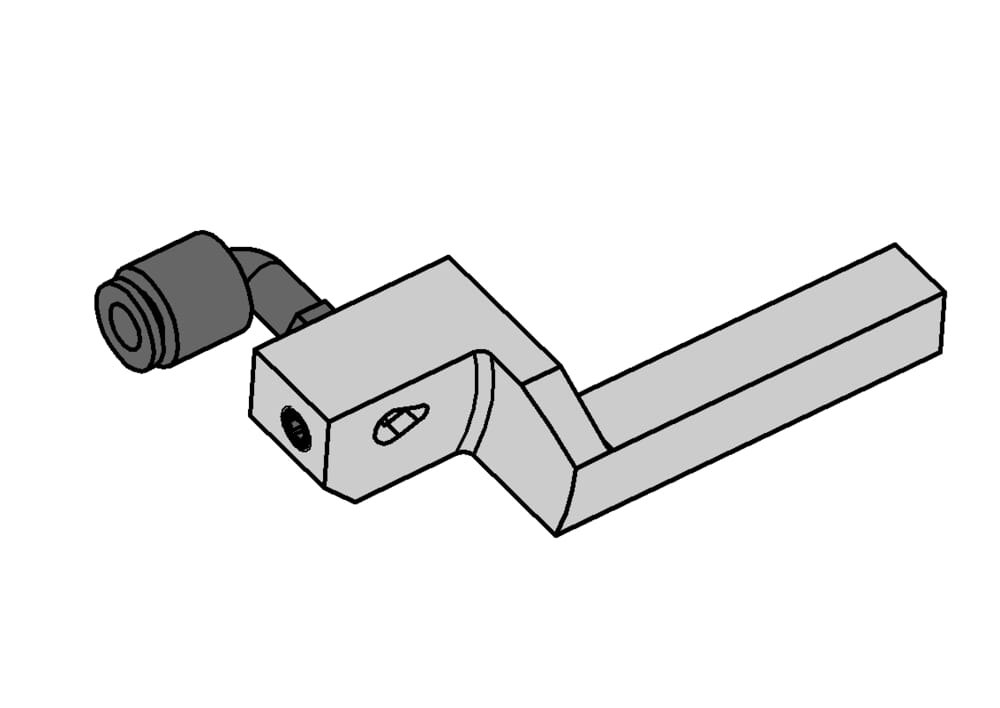

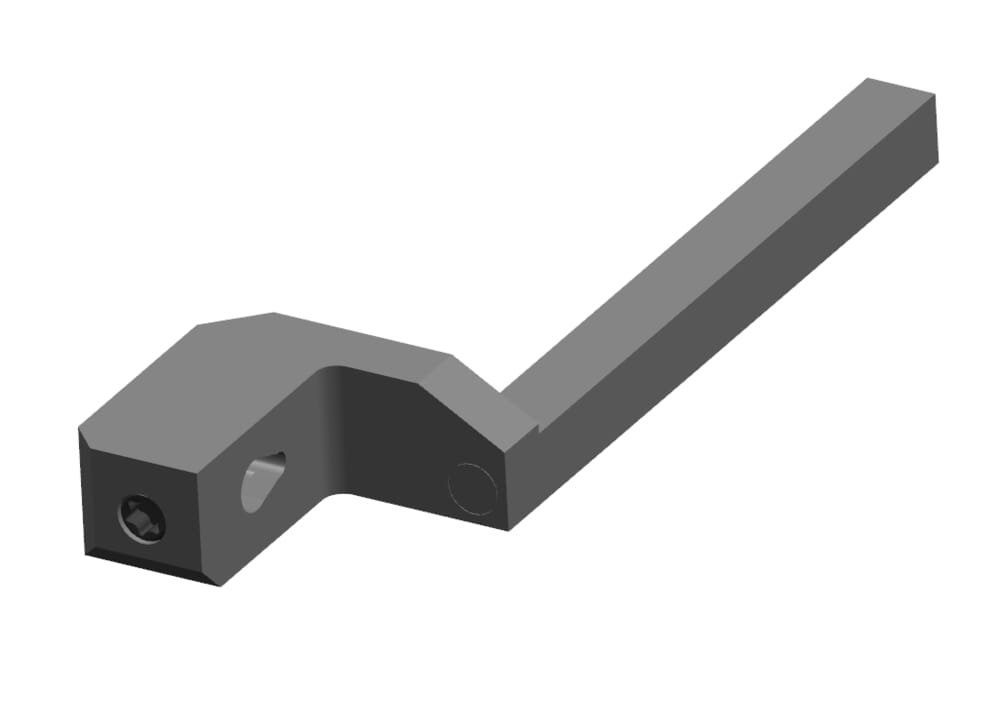

HORN Toolholders RHC105.1616.21 for Turning

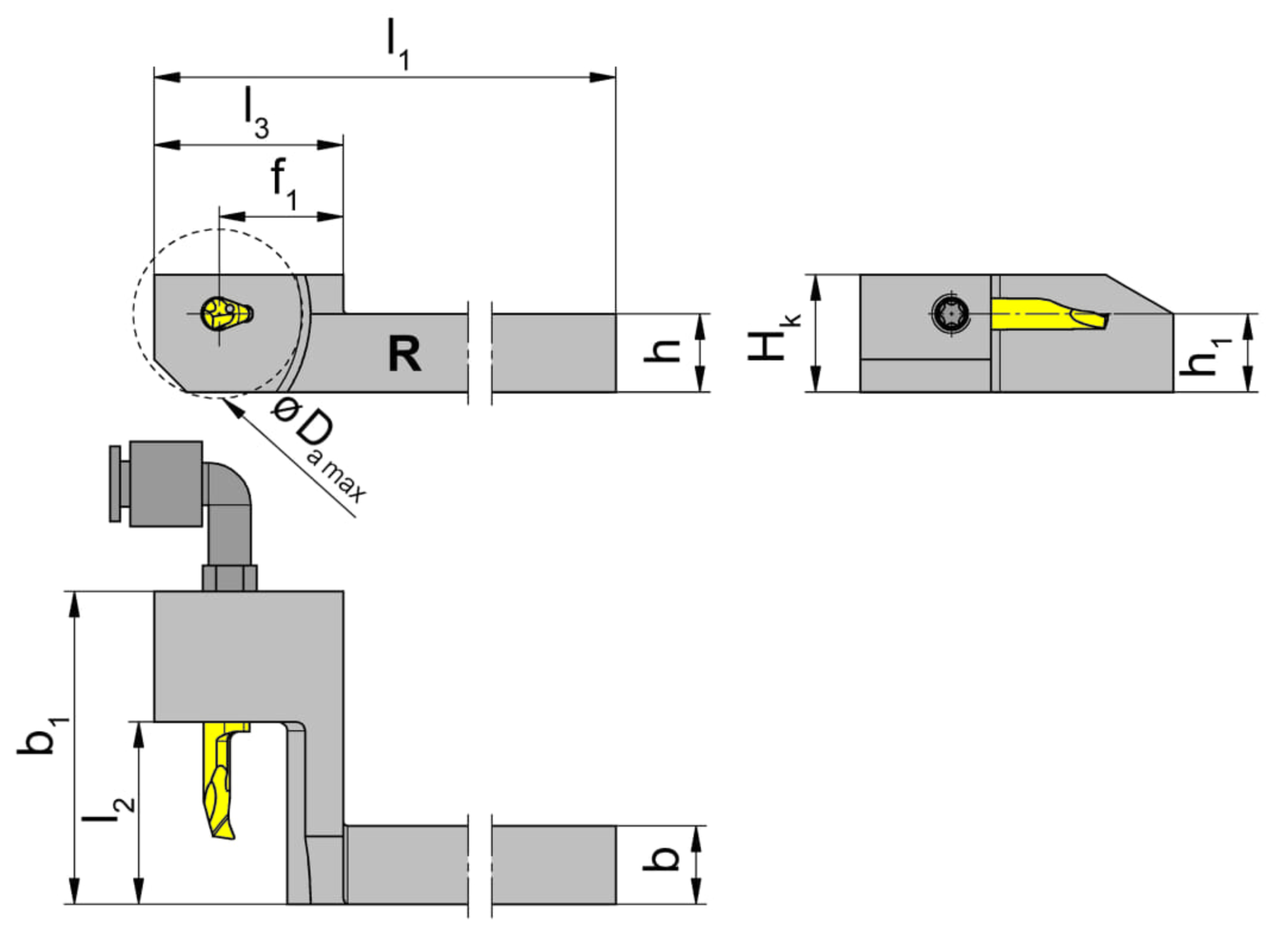

Working length, Extension length (l2)

18 mm

eclass-shortcut

21-18-10-05

ISO_CCTMS

VKT01A1616$$$$

DIN_CCTMS

VKT16160105

Katalog_CCTWS

105123;105124;105125

DIN_CCTWS

HORN-10512395N;HORN-10512495N;HORN-10512595N

ISO_CCTWS

HORN105123$95N$$$$$;HORN105124$95N$$$$$;HORN105125$95N$$$$$

Head length top without insert (l3)

34 mm

Peak height (h1)

16 mm

Maximum workpiece diameter (Da max)

36 mm

Head height (HK)

22 mm

Head width (b1)

38 mm

Shank height (h)

16 mm

Total length (without cutting insert) (l1)

104 mm

Adjustment dimension cutting center (f1)

24 mm

Shank width (b)

16 mm
