B109.0012.01
Toolholder
Part number B109001201

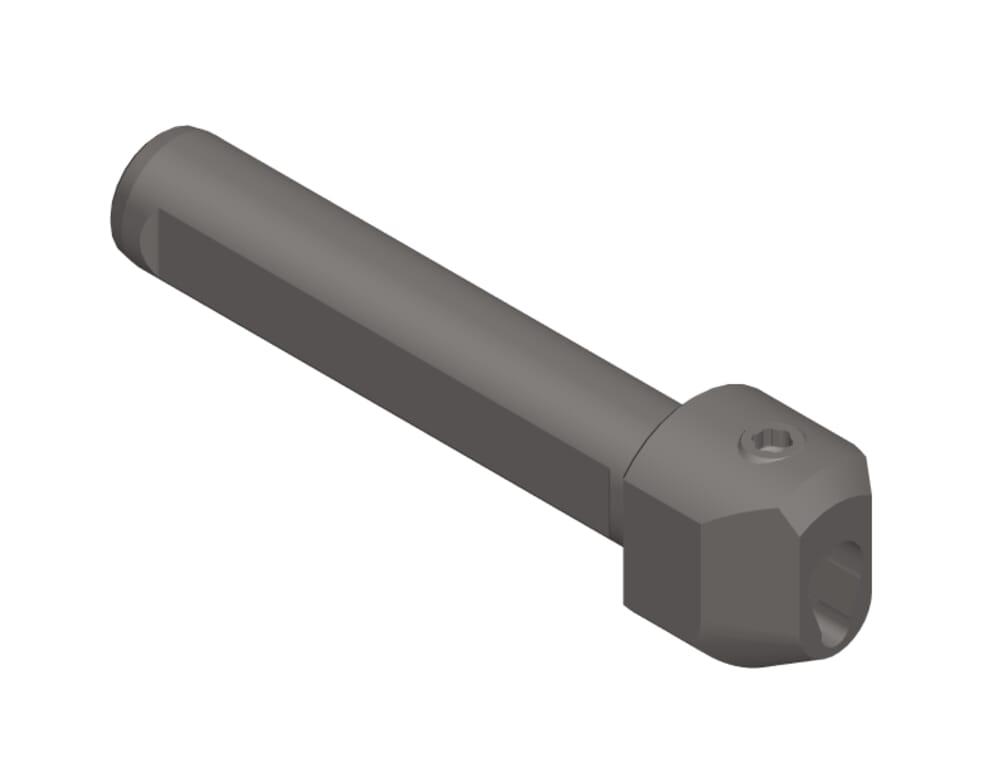

HORN Toolholder B109.0012.01 for Turning
Please note:Technical instructions
Shank, clamping diameter (d)
12
eclass-shortcut
21-18-10-05
ISO_CCTMS
ZYL23G1200$$$$
DIN_CCTMS
ZYL01202315
Katalog_CCTWS
109140
DIN_CCTWS
HORN-10914095N
ISO_CCTWS
HORN109140$95N$$$$$
Length of clamping surface(s) (l4)
50
mm
Head length (l2)
16
mm
Head diameter (d2)
20
mm
Height clamping surface(s) (h)
10
mm
Total length (without cutting insert) (l1)
75
mm
| Downloads | |
|---|---|
| B109001201_20210629_061907869.DXF | Download |
| B109001201_20210630_115649400.STP | Download |
| Download all files | |
