R114.4545.02 EG55

Insert

Part number R114454502EG55

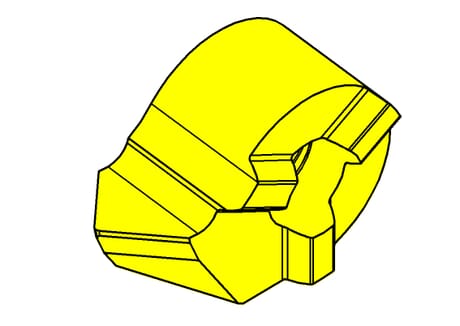

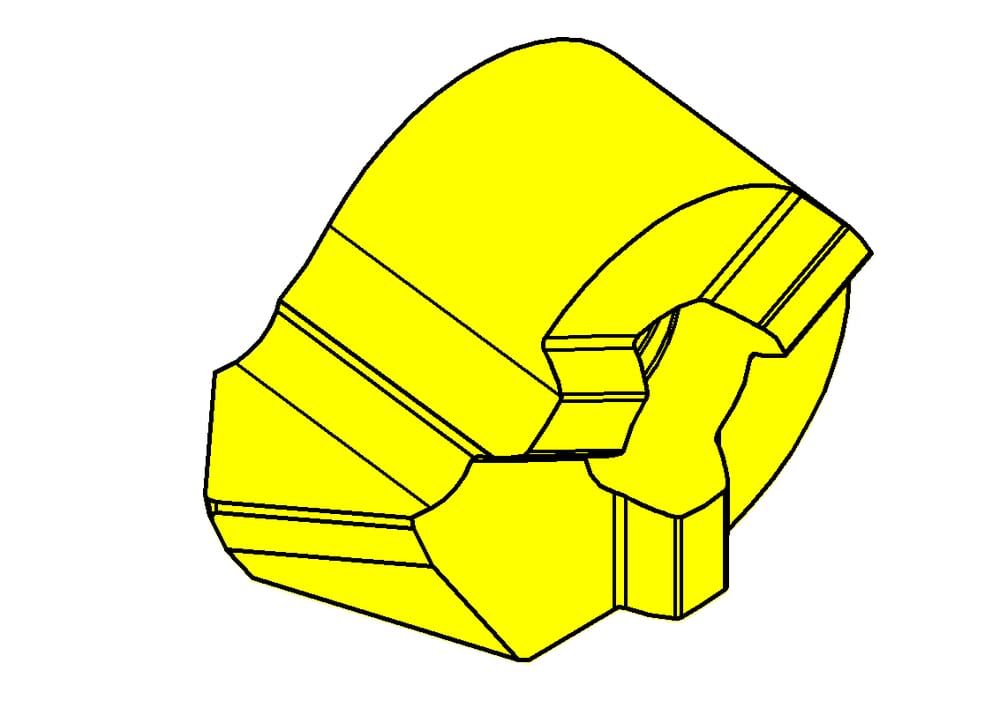

HORN Insert R114.4545.02 EG55 for Turning

DIN_SSC

HORN-11409084R

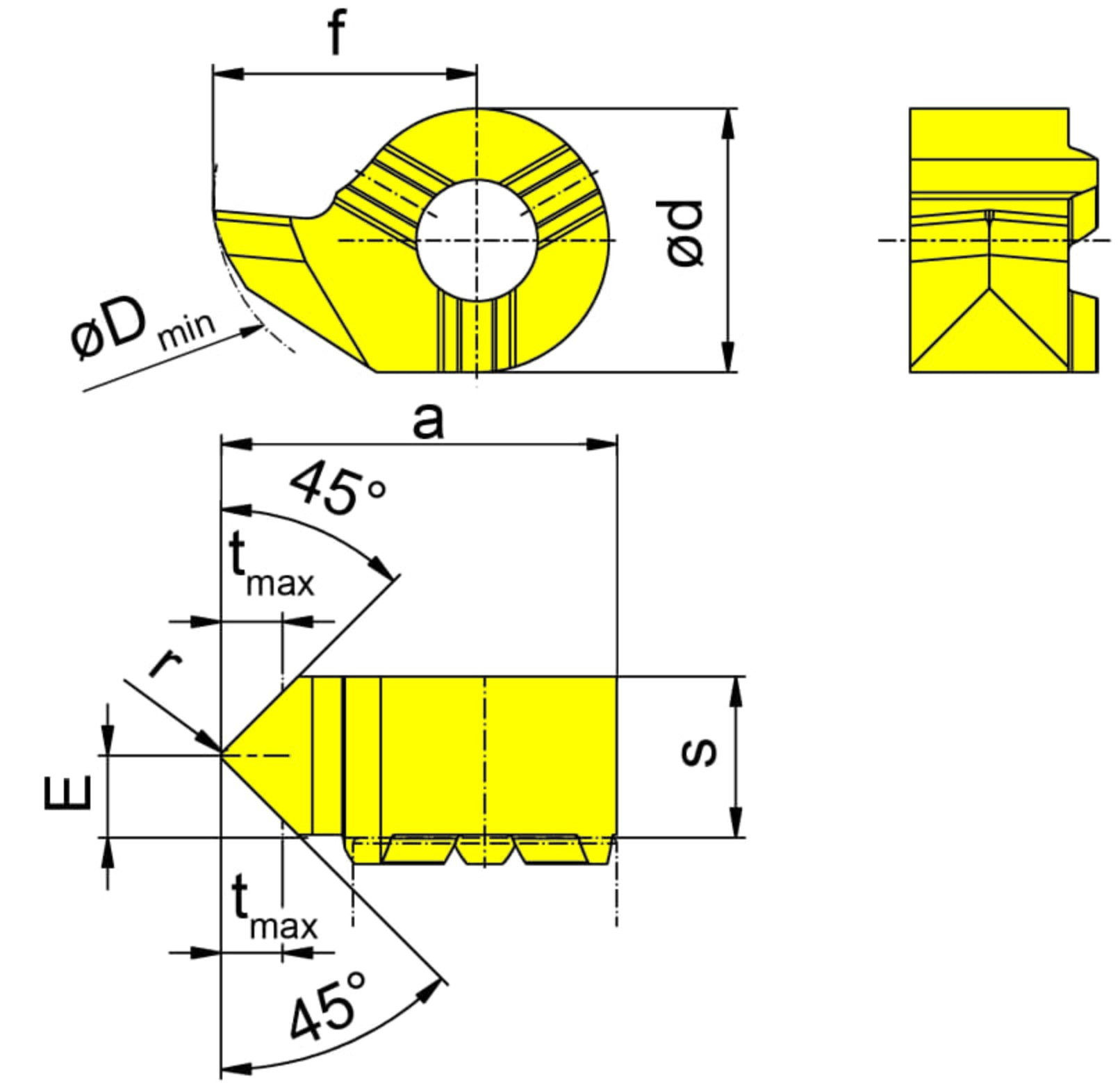

Smallest bore diameter (Dmin)

14 mm

Cutting insert height, Cutting insert thickness (s)

5.5 mm

Corner radius (r)

0.2 mm

Setting length (E)

2.8 mm

radius-met

0.2 mm

Tooth diameter, head diameter (d)

9 mm

Setting range radial (f)

9 mm

Katalog_SSC

114090R

ISO_SSC

HORN114090$84R$$$$$

Maximum depth of groove (tmax)

2.1 mm

Head size (a)

13.5 mm
