R116.4545.02 EG55
Insert
Part number R116454502EG55

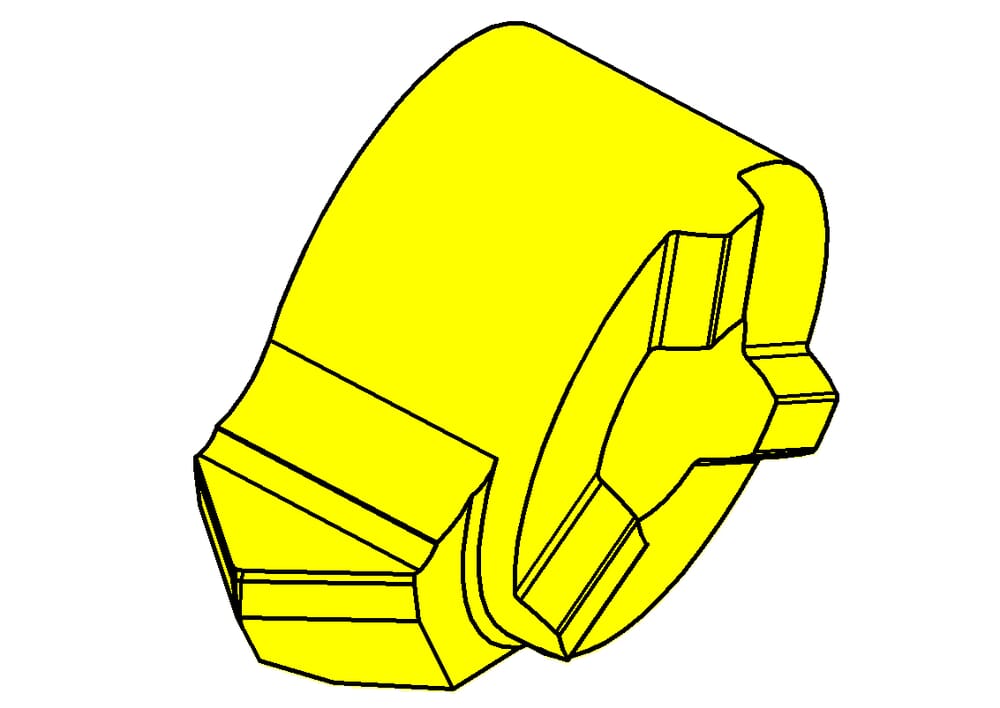

HORN Insert R116.4545.02 EG55 for Turning
Please note:Technical instructions

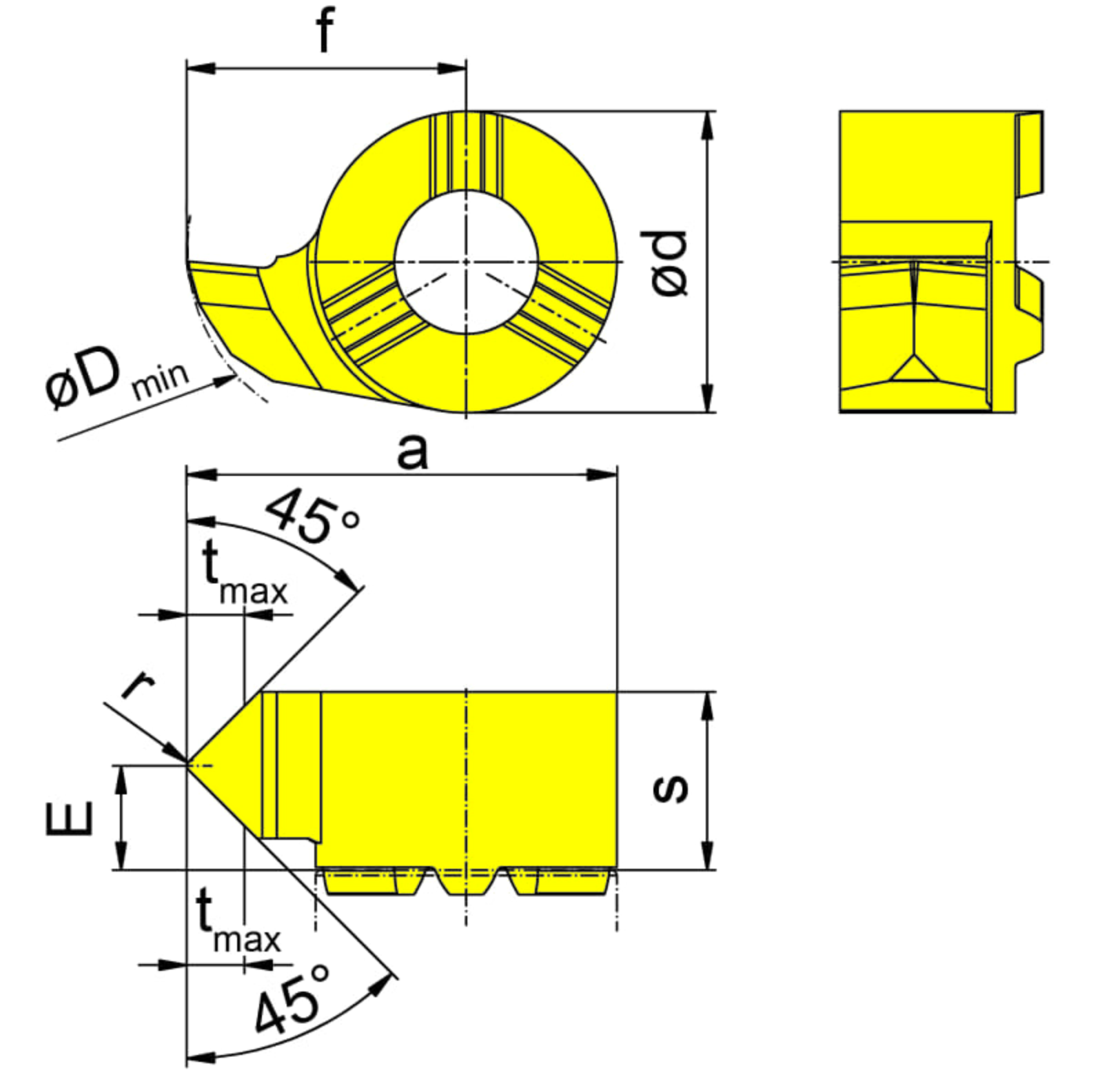

Head size (a)
15.7
mm
Maximum depth of groove (tmax)
2.1
mm
ISO_SSC
HORN116110$84R$$$$$
DIN_SSC
HORN-11611084R
Katalog_SSC
116110R
Setting range radial (f)
10.2
mm
Tooth diameter, head diameter (d)
11
mm
Setting length (E)
3.8
mm
Corner radius (r)
0.2
mm
Cutting insert height, Cutting insert thickness (s)
6.5
mm
Smallest bore diameter (Dmin)
16
mm
