RB110.TS40.2.2.02
Toolholder
Part number RB110TS402202

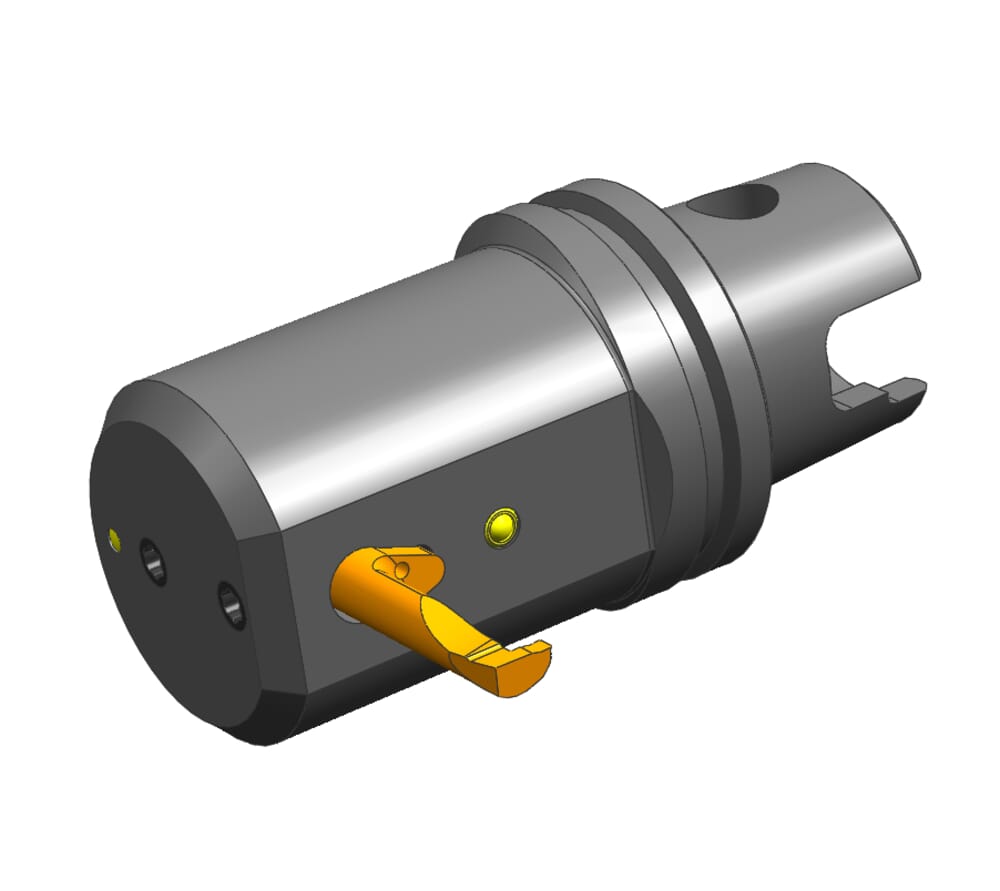

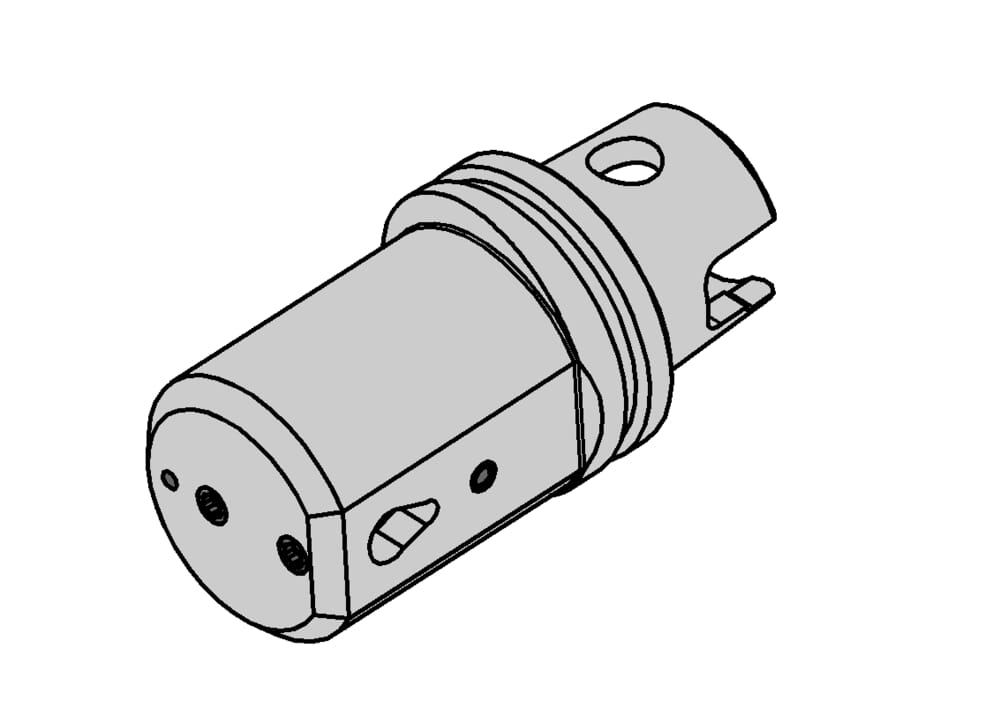

HORN Toolholder RB110.TS40.2.2.02 for Turning
Please note:Technical instructions

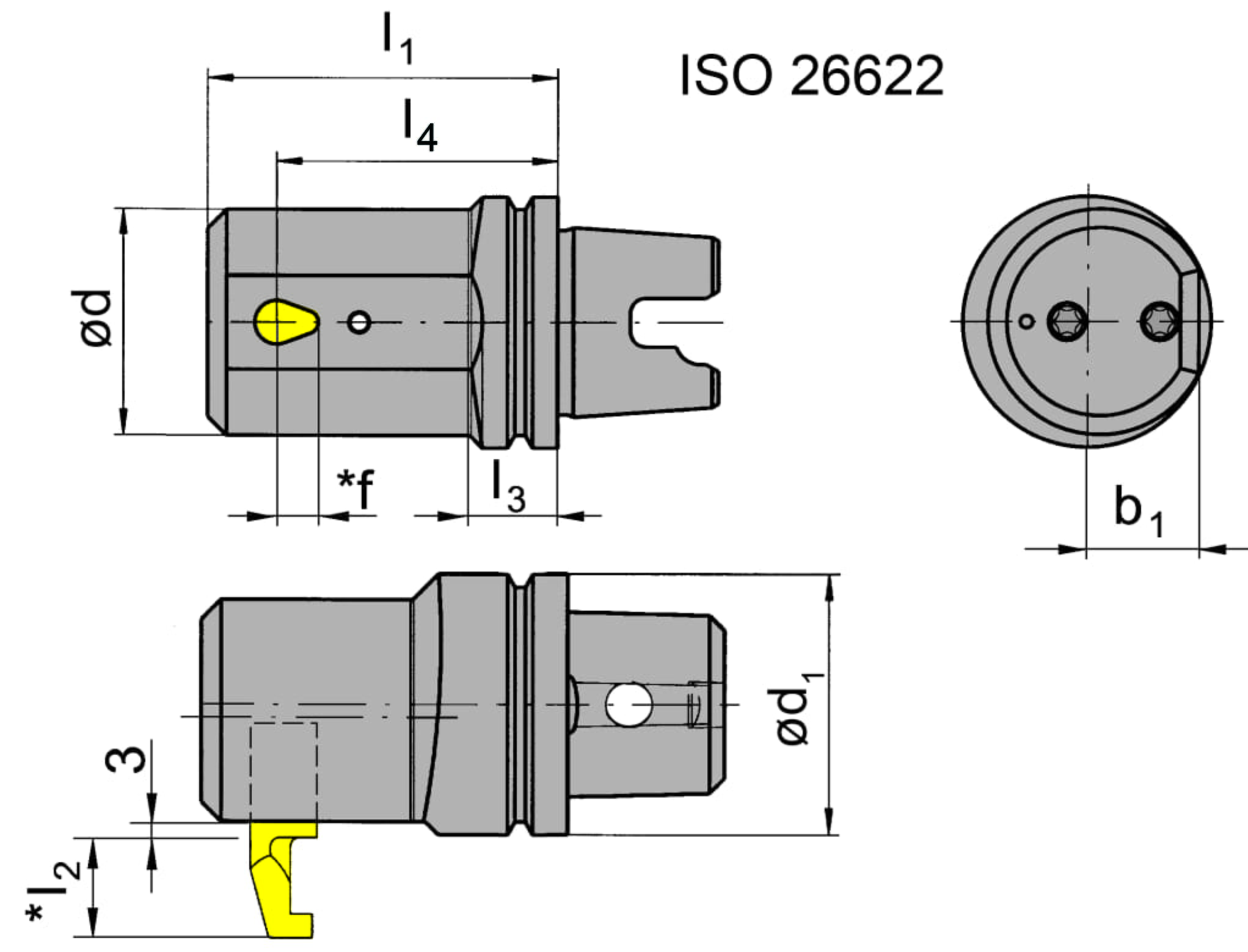

Length from stop to center insert (l4)
45
mm
eclass-shortcut
21-18-10-05
Neck diameter (d)
36
mm
ISO_CCTMS
KMT01C0400$$$$
DIN_CCTMS
KMT04000195
Katalog_CCTWS
110260
DIN_CCTWS
HORN-11026095N
ISO_CCTWS
HORN110260$95N$$$$$
Machine type (Maschinentyp)
INDEX MS32
Length from bore (l1)
56
mm
Bore diameter rotate (d1)
40
mm
Flange thickness (l3)
14
mm
Distance from center (b1)
18
mm
| Downloads | |
|---|---|
| RB110TS402202_20210628_235711945.DXF | Download |
| RB110_KM40_2_2_02.STP | Download |
| Download all files | |
