S223.0300.52 TI25
Insert
Part number S223030052TI25

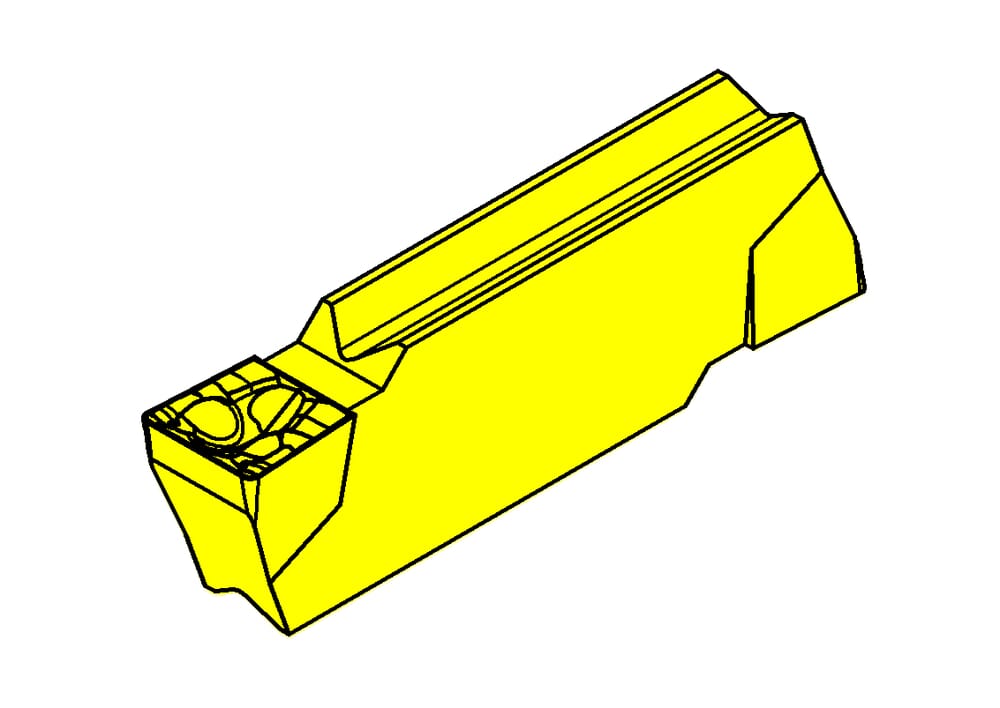

HORN Insert S223.0300.52 TI25 for Turning
Please note:Technical instructions

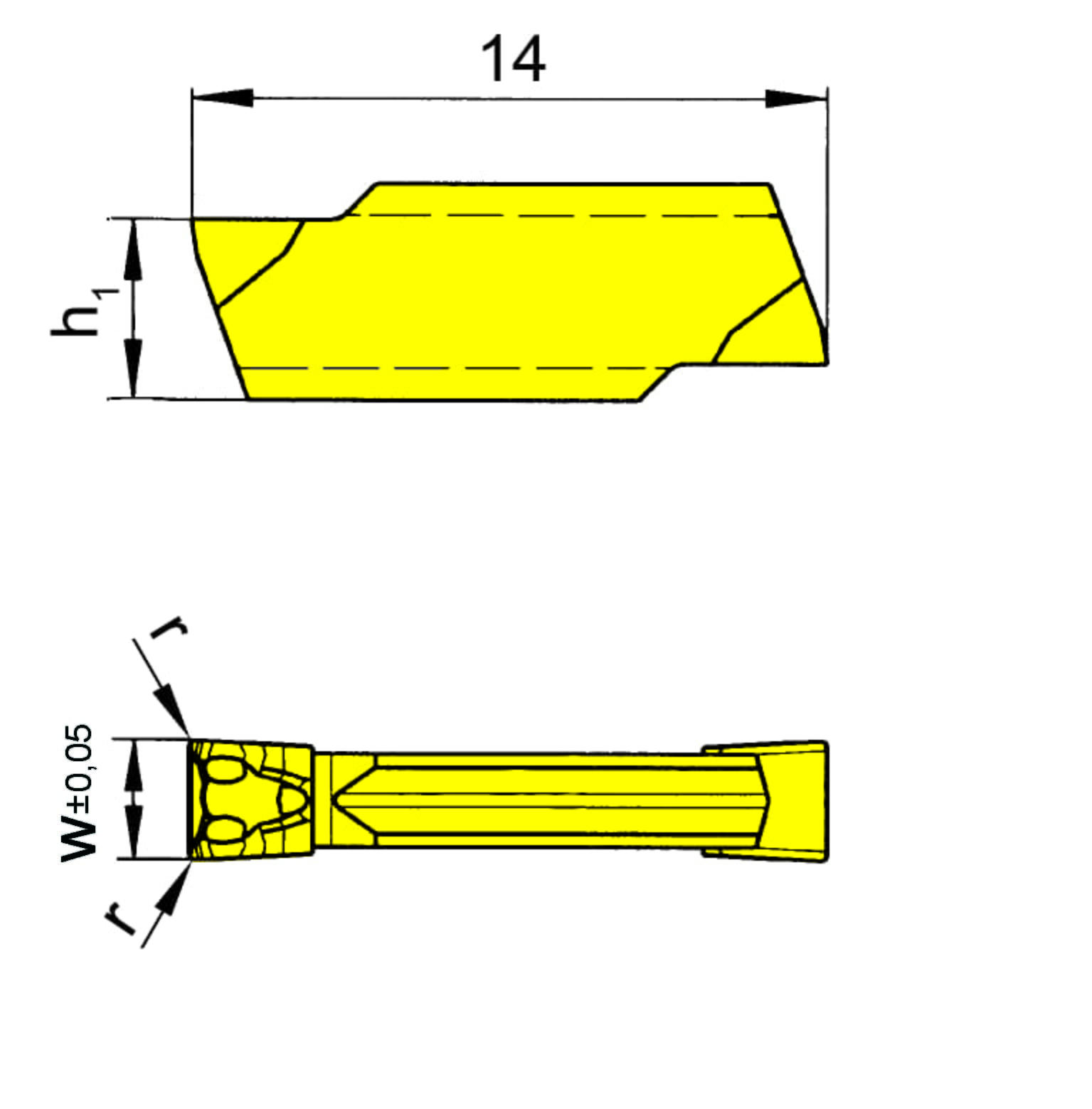

Peak height (h1)
3.95
mm
eclass-shortcut
21-18-20-03
ISO_SSC
HORN223030008N$$$$$
DIN_SSC
HORN-223030008N
Katalog_SSC
22303
Plating seat size (Größe)
3
Width of groove (w)
3
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| S223030052.DXF | Download |
| S223_0300_52_20171121_232741638.STP | Download |
| Download all files | |
