DAM31.016.D163.02B
Toolholder
Part number DAM31016D16302B

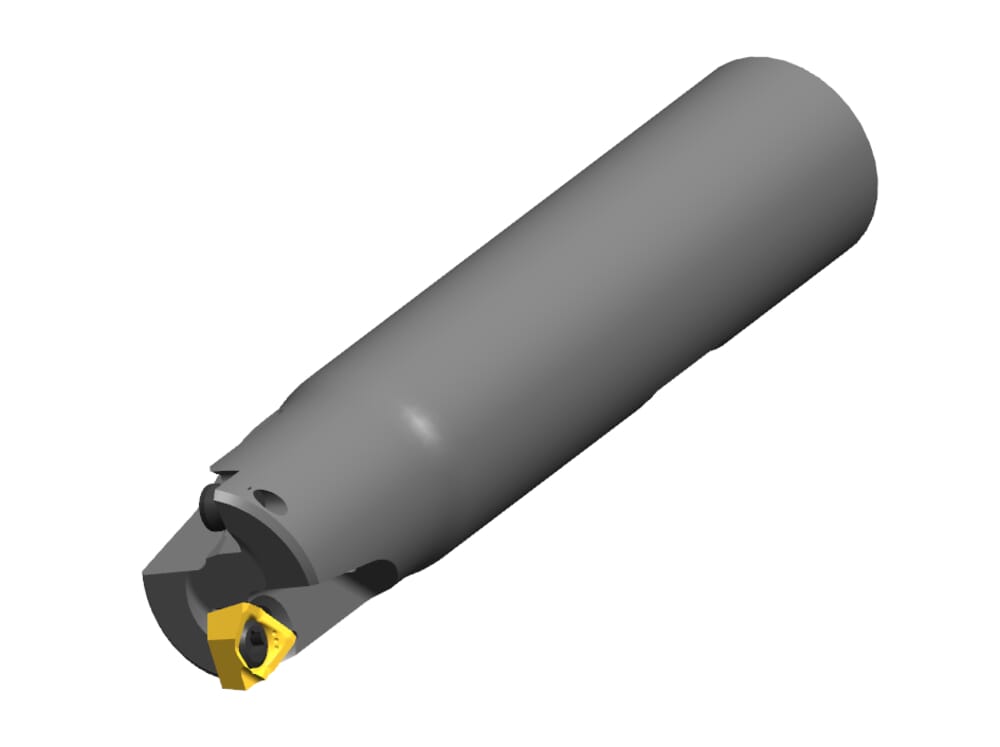

HORN Toolholder DAM31.016.D163.02B for Milling
Please note:Technical instructions

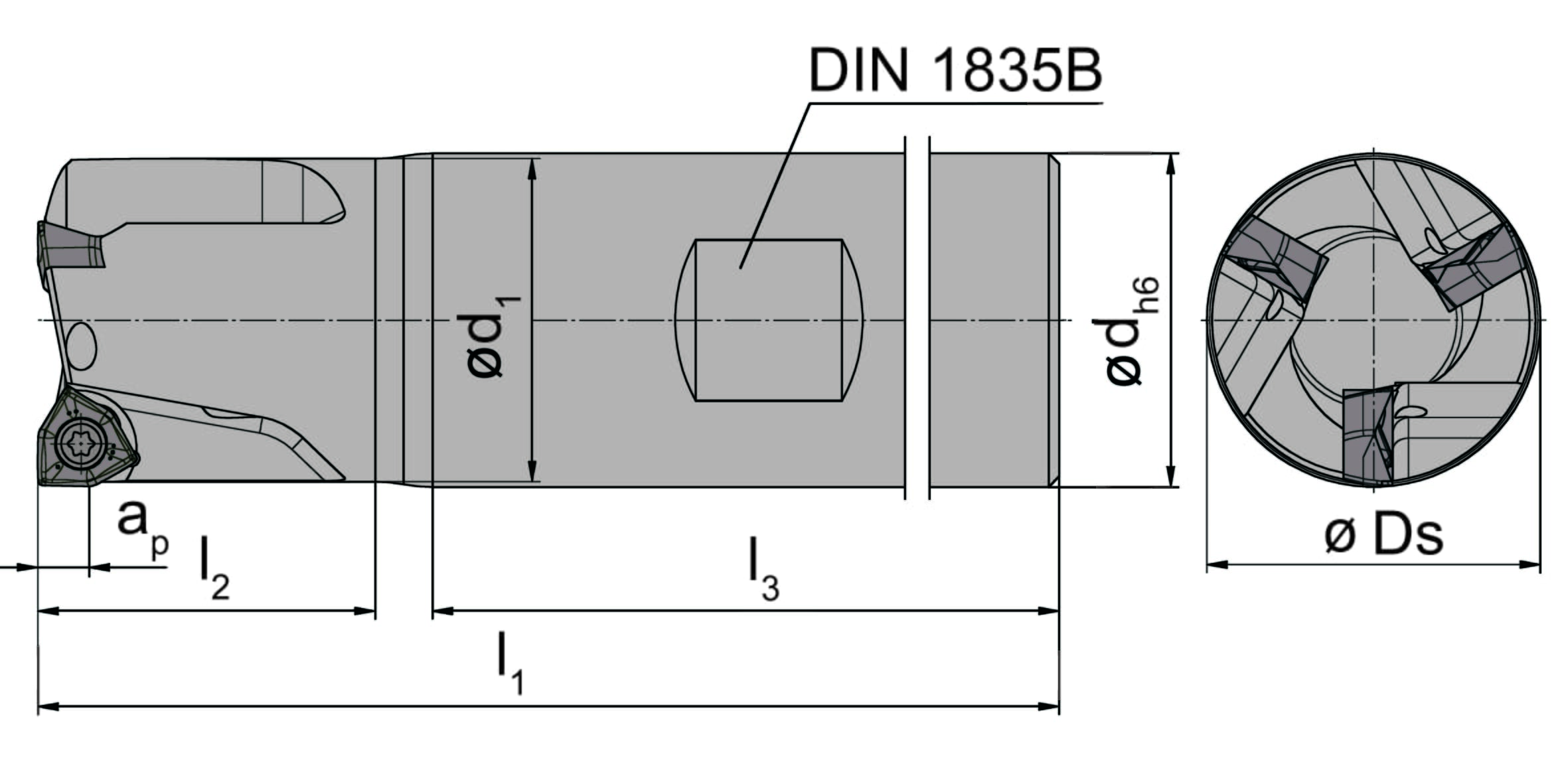

Neck diameter (d1)
15
mm
eclass-shortcut
21-18-08-90
Tension length (l3)
54
mm
Working length, Neck length, Extension length (l2)
17
mm
Total length insert (l1)
79
mm
Cone diameter (d)
16
mm
Shank diameter (d)
16
mm
Cutting depth (ap)
3
mm
ISO_CCTMS
ZYL10G1600h$06
DIN_CCTMS
ZYL01601005
Katalog_CCTWS
DA3116
DIN_CCTWS
HORN-DA31163N
ISO_CCTWS
HORNDA3116$$3N$$$$$
Number of teeth (Z)
2
St.
Cutting diameter (Ds)
16
mm
| Downloads | |
|---|---|
| DAM31016D16302B_20210629_121407654.DXF | Download |
| DAM31_016_D163_02B_20171121_222102159.STP | Download |
| Download all files | |
