DAM31.020.D102.03A
tool holder
Part number DAM31020D10203A

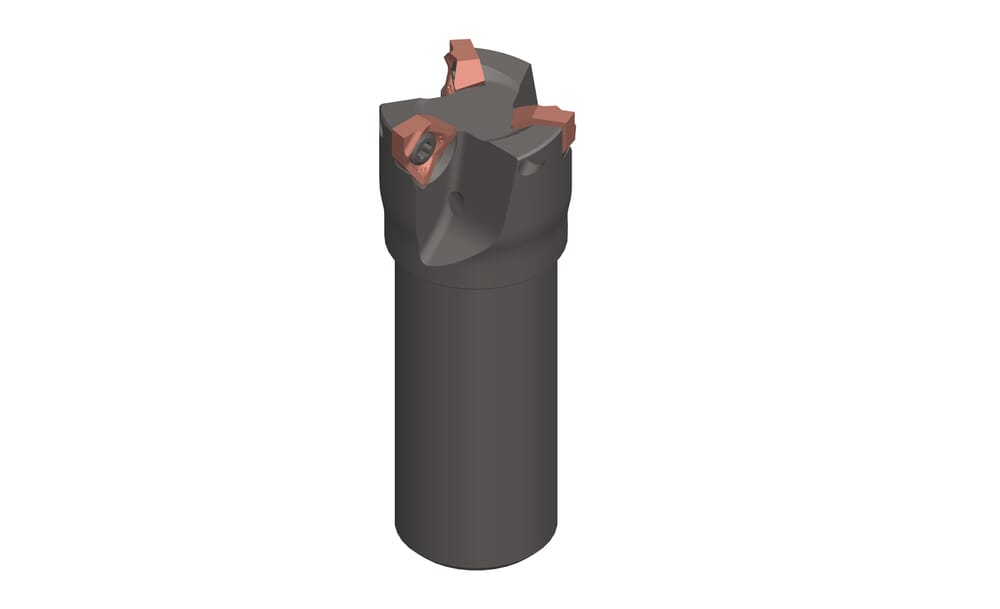

HORN tool holder DAM31.020.D102.03A for Milling
Please note:Technical instructions

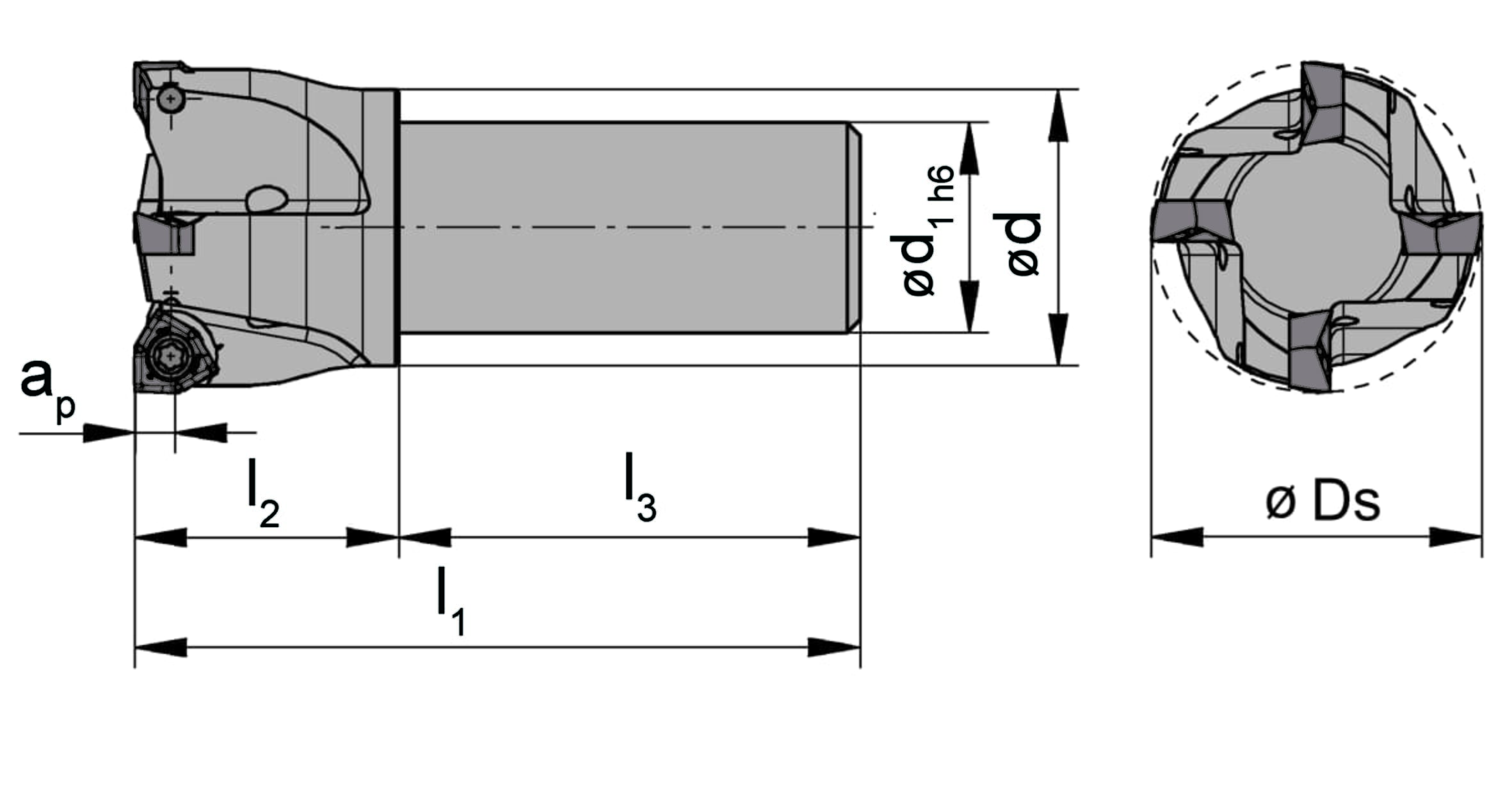

Shank diameter (d)
10
mm
Cutting diameter (Ds)
20
mm
Number of teeth (Z)
3
St.
Cutting depth (ap)
3
mm
Neck diameter (d1)
19
mm
Total length insert (l1)
52
mm
Working length, Neck length, Extension length (l2)
27
mm
Tension length (l3)
25
mm
eclass-shortcut
21-18-08-90
| Downloads | |
|---|---|
| DAM31020D10203A.DXF | Download |
| DAM31020D10203A_20240117_135610525.STP | Download |
| Download all files | |
