DAM31.025.D161.04A

Toolholder

Part number DAM31025D16104A

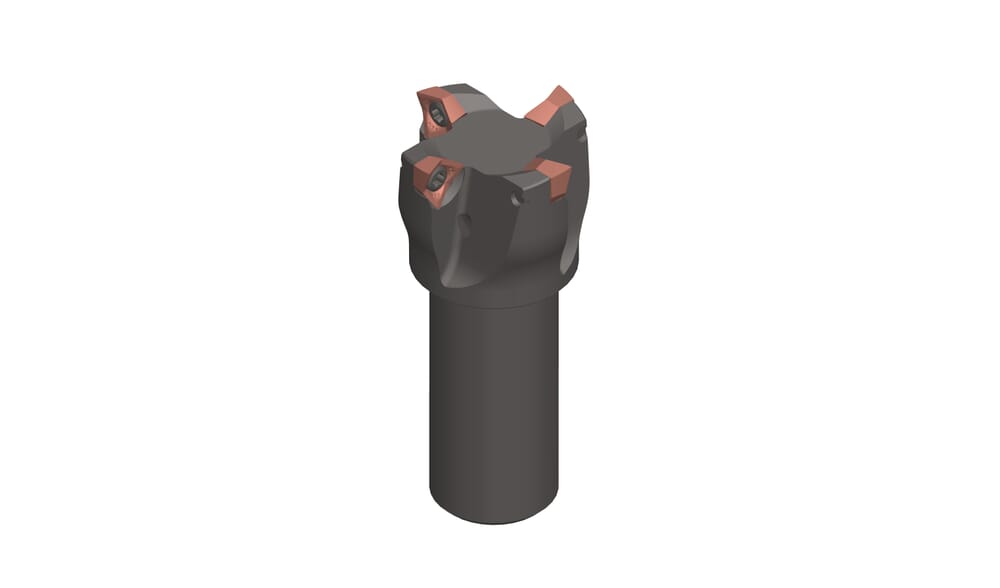

HORN Toolholder DAM31.025.D161.04A for Milling

Katalog_CCTWS

DA3125

eclass-shortcut

21-18-08-90

Tension length (l3)

35 mm

Working length, Neck length, Extension length (l2)

20 mm

Total length insert (l1)

55 mm

cone-diameter-met

24 mm

Neck diameter (d1)

16 mm

Cutting depth (ap)

3 mm

ISO_CCTMS

ZYL01G2500h$06

DIN_CCTMS

ZYL02500105

DIN_CCTWS

HORN-DA31253N

ISO_CCTWS

HORNDA3125$$3N$$$$$

Number of teeth (Z)

4 St.

Cutting diameter (Ds)

25 mm

Shank diameter (d)

24 mm
