Part number DAM31032D32605B

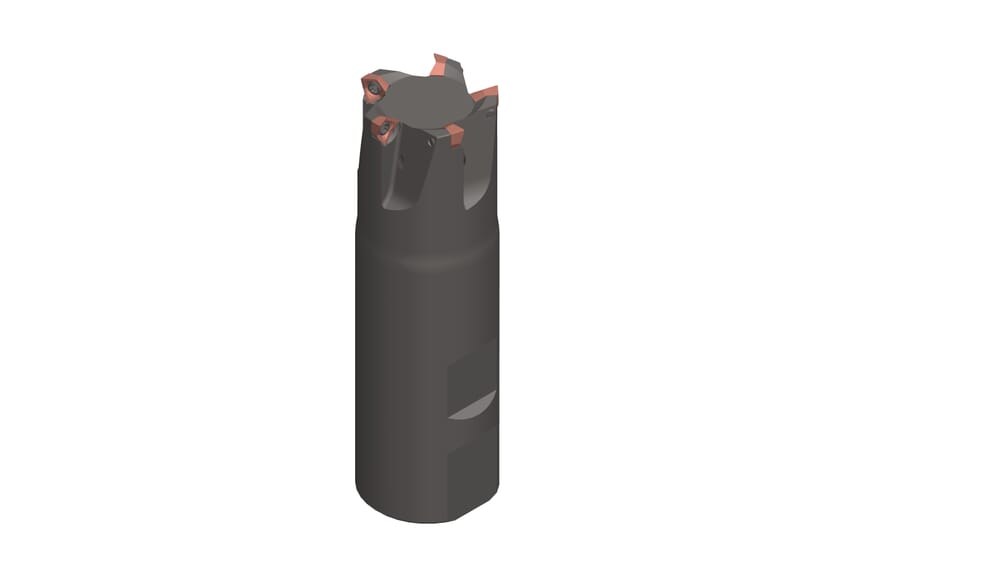

HORN Toolholder DAM31.032.D326.05B for Milling

Please note:Technical instructions

Cutting depth (ap)

3 mm

Tension length (l3)

68 mm

Working length, Neck length, Extension length (l2)

32 mm

Total length insert (l1)

106 mm

Cone diameter (d)

32 mm

Neck diameter (d1)

31 mm

Shank diameter (d)

32 mm

ISO_CCTMS

ZYL10G3200h$06

DIN_CCTMS

ZYL03201005

Katalog_CCTWS

DA3132

DIN_CCTWS

HORN-DA31323N

ISO_CCTWS

HORNDA3132$$3N$$$$$

Number of teeth (Z)

5 St.

Cutting diameter (Ds)

32 mm
