DAM31.032.D326.05B
Toolholder
Part number DAM31032D32605B

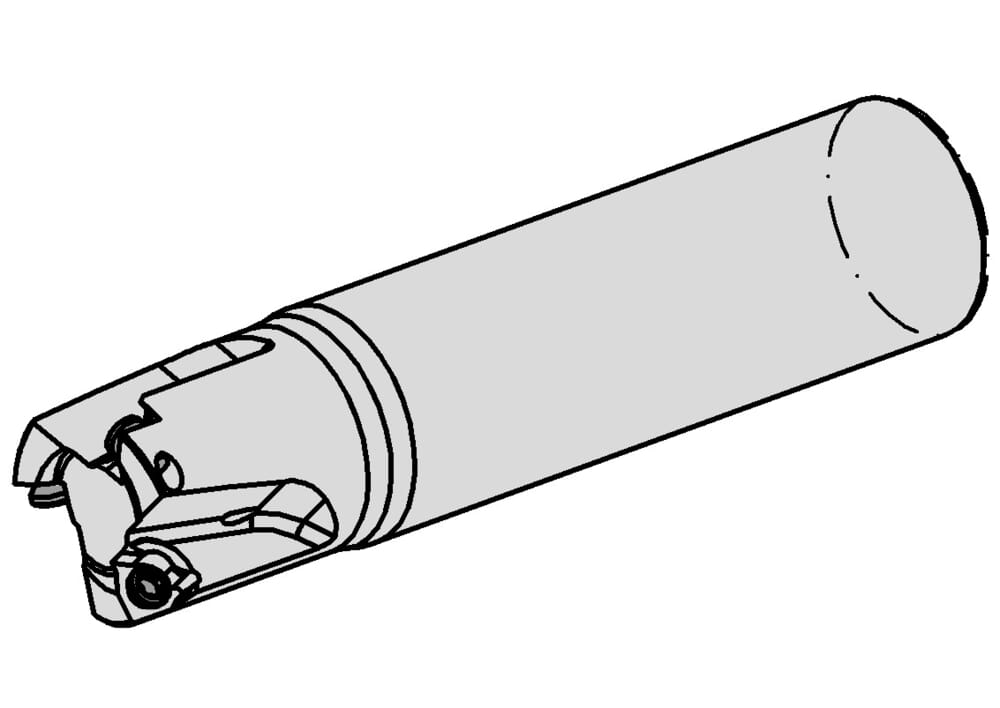

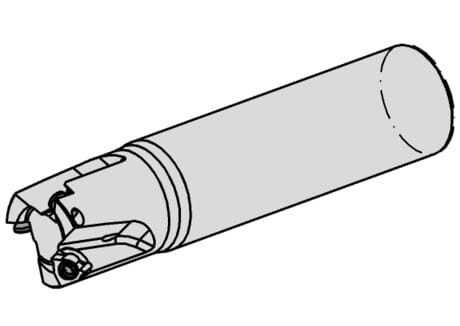

HORN Toolholder DAM31.032.D326.05B for Milling
Please note:Technical instructions
Cutting depth (ap)
3 mm
Tension length (l3)
68 mm
Working length, Neck length, Extension length (l2)
32 mm
Total length insert (l1)
106 mm
Cone diameter (d)
32 mm
Neck diameter (d1)
31 mm
Shank diameter (d)
32 mm
ISO_CCTMS
ZYL10G3200h$06
DIN_CCTMS
ZYL03201005
Katalog_CCTWS
DA3132
DIN_CCTWS
HORN-DA31323N
ISO_CCTWS
HORNDA3132$$3N$$$$$
Number of teeth (Z)
5 St.
Cutting diameter (Ds)
32 mm
| Downloads | |
|---|---|
| DAM31_032_D326_05B-ISO.XML | Download |
| DAM31_032_D326_05B-DXF.DXF | Download |
| DAM31_032_D326_05B-STP.STP | Download |
| DAM31_032_D326_05B-DIN.XML | Download |
| Download all files | |
